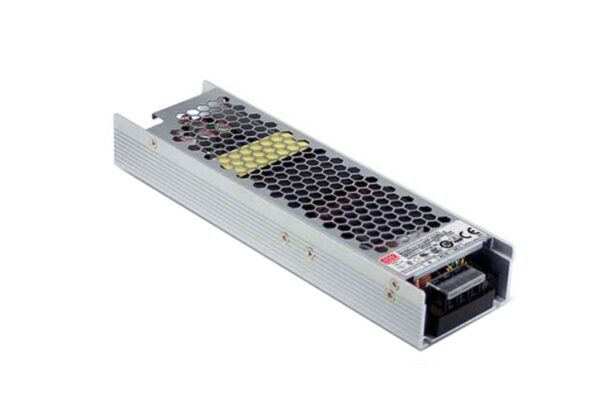

Meanwell LED Display Power Supply UHP-350 Series UHP-350-5

UHP-350 series is a 350W single-output slim type power supply with 31mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 3.3V,4.2V, 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 94%, that the whole series operates from -30°C ~70°C under air convection without fan. UHP-350 has complete protection functions and 5G anti-vibration capability It complies with international safety; regulations such as TUV EN60950-1, EN60335-1, UL60950-1 and GB4943. UHP-350 series serves as a high-performance power supply solution for various industrial applications.

• Slim Low profile (31mm)
• Fanless design,350W convection
• Withstand 300VAC surge input for 5 seconds
• Built-in active PFC function
• 150% peak load capability(100ms)
• -30~+70°C working temperature
• Protections: Short circuit / Overload /Over voltage / Over temperature
• DC OK active signal and redundant function(option)
• Operating altitude up to 5000 meter (Note.5)
• LED indicator for power on
• 3 years warranty

Meanwell UHP-350 Series LED Displays Power Supply Mechanical Specification
