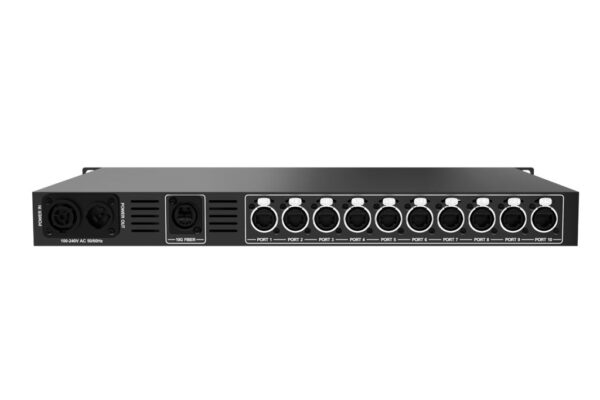

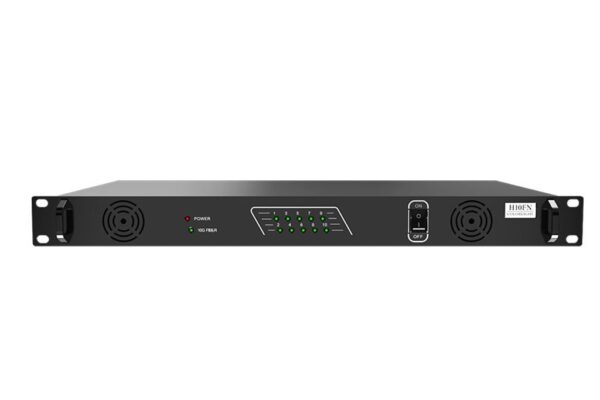

Colorlight H10FN Fiber Optic Transceivers
Distributed feedback laser diode ( DFB LD ); Single mode twin-core fiber ( TCF ); Up to 10Gb/s data links; Multi-source package with full-duplex LC connector; Hot-pluggable ; Eye safety designed to meet laser class 1;
·One Neutrik opticalCON DUO interface, compatible with LC-LC interface, with transmission speeds up to 10Gb/s
·10 Neutrik RJ45 ethernet port, up to 1Gb/s per channel
·10km transmission distance
·Hot-pluggable
·Single mode twin-core fiber ( TCF )

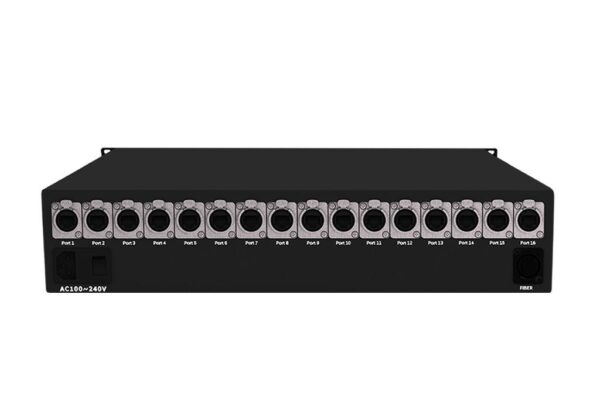

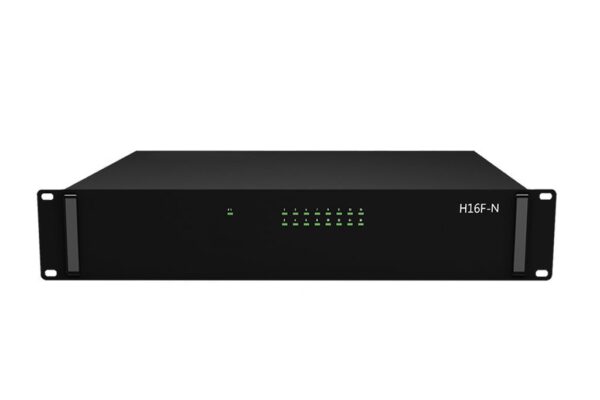

Colorlight H16F-N Fiber Optic Transceivers
Distributed feedback laser diode ( DFB LD ); Single mode twin-core fiber ( TCF ); Up to 20Gb/s data links; Multi-source package with full-duplex LC connector; Hot-pluggable ; Eye safety designed to meet laser class 1;
·Distributed feedback laser diode ( DFB LD )
·Single mode twin-core fiber ( TCF )
·Up to 20Gb/s data links
·Fiber module with 1Km transmission distance
Fiber module with 20Km transmission distance ( optional )
·Multi-source package with full-duplex LC connector
·Hot-pluggable
·Eye safety designed to meet laser class 1
| Parameters Description | |
|---|---|
| Storage Temperature | -40 ~85 ℃ |
| Operating Temperature | 0 ~70 ℃ |
| Power | AC 100~240V |
| Data Rate | 20Gb/s |
| Working Mode | Single-Mode |
| Transmission Distance | Fiber module of 1Km, fiber module of 20Km ( optional ) |
| Fiber Interface Type | Full-duplex LC |
| Laser | DFB |
| Gigabit Ethernet Port | 16 Neutrik Gigabit Ethernet ports |
| Fiber Interface | 2 ports*10G bandwidth |

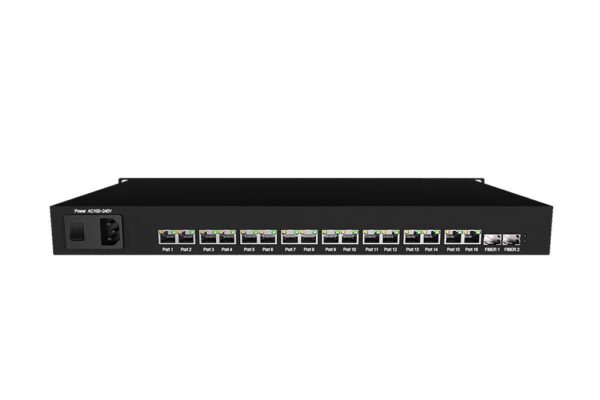

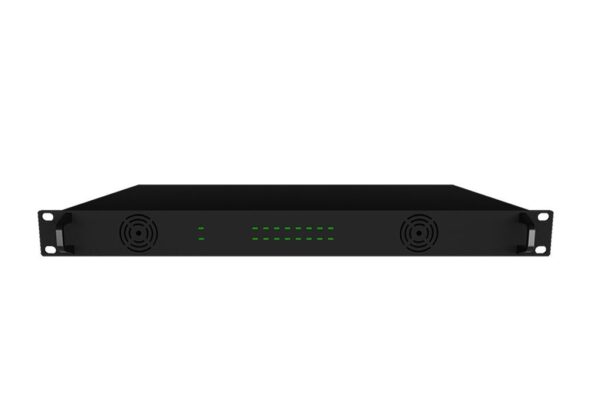

Colorlight H16F Fiber Optic Transceivers
Distributed feedback laser diode ( DFB LD ); Single mode twin-core fiber ( TCF ); Up to 20Gb/s data links; Multi-source package with full-duplex LC connector;Hot-pluggable ;Eye safety designed to meet laser class 1;
·Distributed feedback laser diode ( DFB LD )
·Single mode twin-core fiber ( TCF )
·Up to 20Gb/s data links
·Fiber module with 1Km transmission distance
Fiber module with 20Km transmission distance ( optional )
·Multi-source package with full-duplex LC connector
·Hot-pluggable
·Eye safety designed to meet laser class 1
| Parameters Description | |
|---|---|
| Storage Temperature | -40 ~85 ℃ |
| Operating Temperature | 0 ~70 ℃ |
| Power | AC 100~240V |
| Data Rate | 20Gb/s |
| Working Mode | Single-Mode |
| Transmission Distance | Fiber module of 1Km, fiber module of 20Km ( optional ) |
| Fiber Interface Type | Full-duplex LC |
| Laser | DFB |
| Gigabit Ethernet Port | 16 ports, RJ45 |
| Fiber Interface | 2 ports*10G bandwidth |

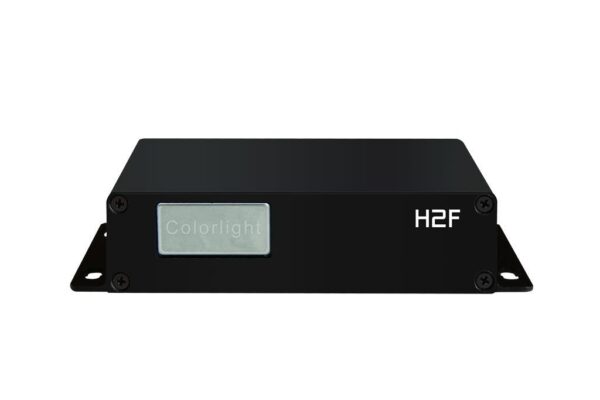

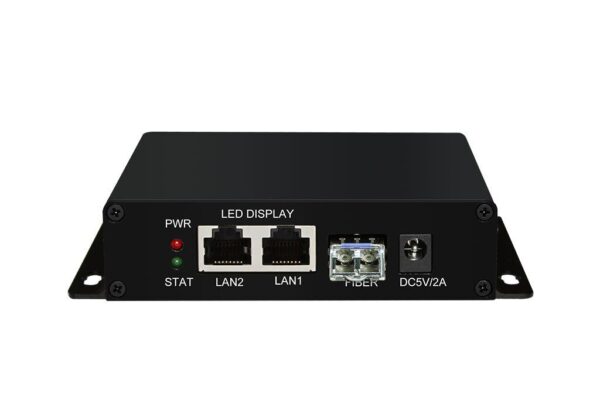

Colorlight H2F Fiber Optic Transceivers
Distributed feedback laser diode ( DFB LD ); Up to 2.5Gb/s data links; Multi-source package with duplex LC connector; Hot-pluggable; Eye safety designed to meet laser class 1;
·Distributed feedback laser diode ( DFB LD )
·Up to 2.5Gb/s data links
·Multi-source package with duplex LC connector
·Hot-pluggable
·Eye safety designed to meet laser class 1
| Parameters Description | |
|---|---|
| Storage Temperature | -40 ~85 ℃ |
| Operating Temperature | 0 ~70 ℃ |
| Power | DC 5V/2A |
| Data Rate | 2.5Gb/s |
| Working Mode | Single-mode |
| Transmission Distance | 15Km |
| Fiber Interface Type | Duplex LC |
| Laser | DFB |
| Gigabit Ethernet Port | LAN 1 & LAN 2, RJ45 |
| Fiber Interface | 1 port, 2.5G bandwidth |
