The CVT8-5G fiber converter offers a cost-effective way of conversion between optical signals and electrical signals for video sources to connect the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.
The CVT8-5G hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting,two CVT8-5G devices, or one CVT8-5G device and a connecting piece can be combined into one assembly that is 1U in width.
- Models include the CVT8-5GS (single-mode) and the CVT8-5GM (multi-mode).
- 1x optical port with bandwidth up to 40 Gbit/s, hot-swappable optical module supplied
- 8x 5G BaseT Ethernet ports, bandwidth of each up to 5 Gbit/s
- 1x type-B USB control port
The CVT8-5G is used for long-distance data transmission.

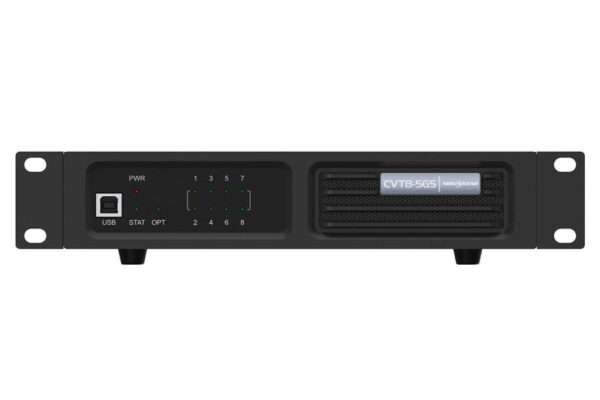

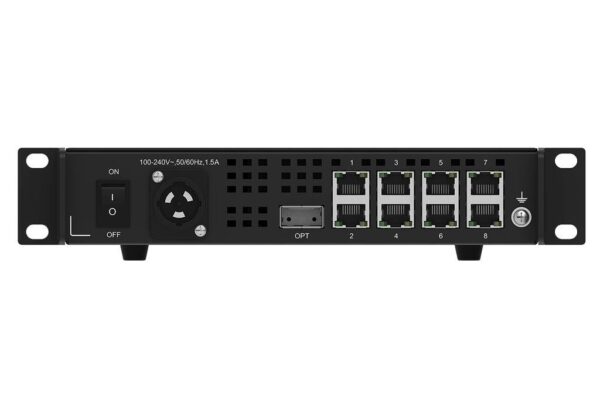

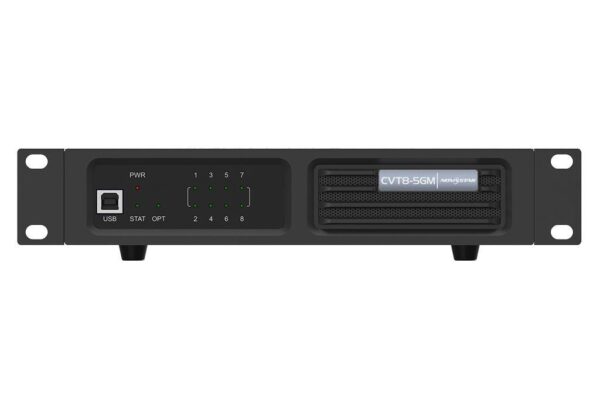

Fiber Converter Appearance
Novastar Fiber Converter CVT8-5G Parameters
Electrical Specifications
|
Power supply
|
100-240V~, 50/60Hz, 1.5A
|
Rated power consumption
|
33 W
|
Operating Environment
|
Temperature
|
–20ºC to +55ºC
|
Humidity
|
10% RH to 80% RH, non-condensing
|
Storage Environment
|
Temperature
|
–20°C to +70°C
|
Humidity
|
10% RH to 95% RH, non-condensing
|
Physical Specifications
|
Dimensions
|
254.3 mm × 50.6 mm × 290.0 mm
|
Net weight
|
2.26 kg
Note: It is the weight of a single product only.
|
Gross weight
|
3.26 kg
Note: It is the total weight of the product, accessories, printed materials and packing materials packed according to the packing specifications.
|
Packing Information
|
Packing box
|
362.0 mm × 141.0 mm × 331.0 mm, kraft paper box
|
Outer box
|
387.0 mm × 173.0 mm × 359.0 mm, kraft paper box
|
Packing list
|
l 1x CVT8-5G
l 1x Power cord, 1x USB cable, 1x Ethernet cable
l 1x Supporting bracket A (with nuts), 1x Supporting bracket B (without nuts)
l 1x Connecting piece
l 12x M3*8 screws
l 1x Assembling diagram
l 1x Certificate of Approval
|
Certifications
|
RoHS, FCC, CE, IC
|
Further Information:
CVT8-5G
Novastar Fiber Converter CVT8-5G Specification
