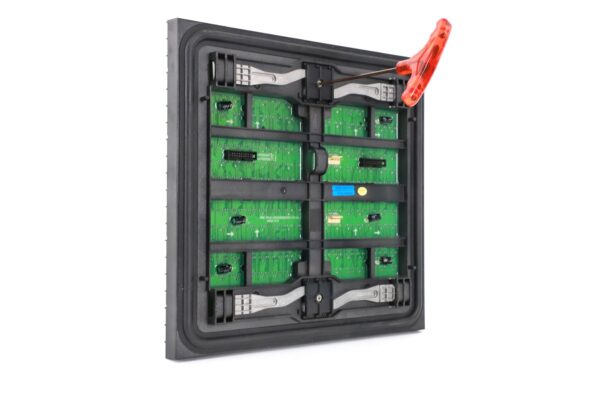

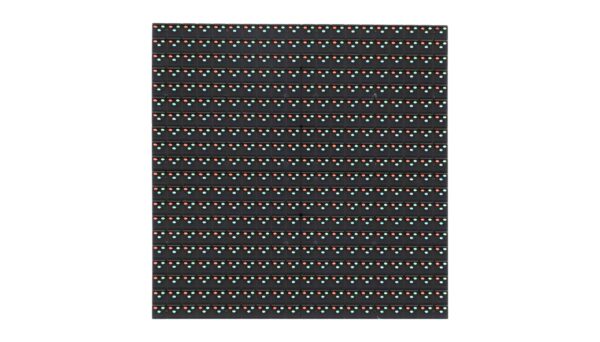

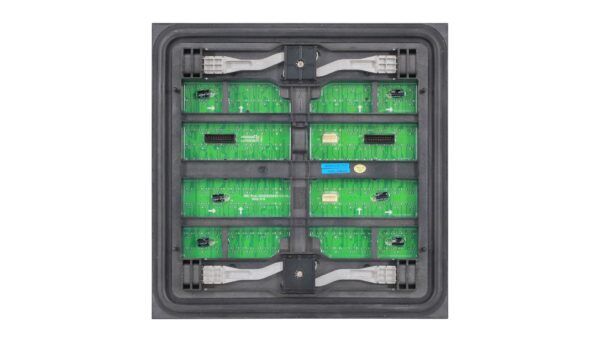

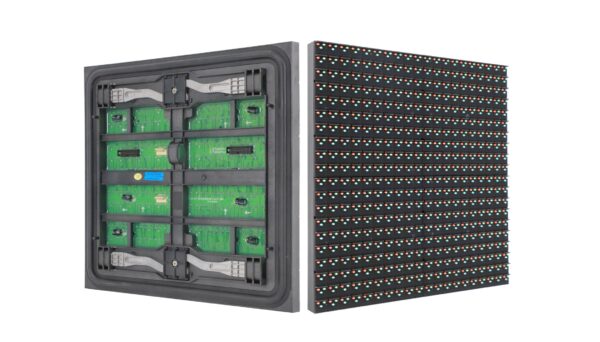

P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm

$44.60

Buy More Pay Less: 5% off (Over 3000USD) / 10% off (Over 6000USD)
    SKU: 13334 Category:

     Notice before order

    1) The Parts included are the LED module, the signal cable between the modules, and the power cable between the module and the power supply.

    2) Buy modules of the same batch: To avoid brightness and color differences on one screen, you must buy modules of the same batch. That is, you must buy the modules for one screen by one order from us.

    3) Tariff: Our price does not include any tariffs or duties at the destination. You should do import customs clearance and pay all tariffs or duties locally.

    Features of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:

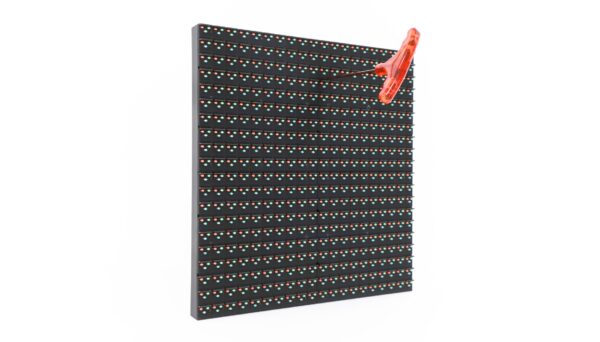

    1) Dual-maintenance. from both the front side and the rear side. People usually use its front maintenance function.

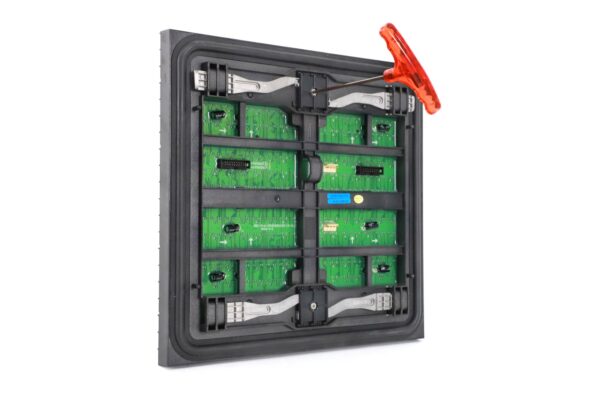

    2) Easy maintenance. Easy to take the modules with a 4mm hexagonal screwdriver.
    3) No screws. It is easier to take the modules and mount them on the cabinet.
    4) 16mm pixel pitch with DIP is the perfect solution for semi-outdoor advertising and outdoor rental LED screens.
    5) New plastic cover with a new mold. Smaller module gaps and better screen flatness.
    6) Reasonable PCB design. Reliable and long lifetime.
    Applicable situations of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:
    Outdoor LED signs requiring front maintenance
    Commercial video screens with small sizes
    Double-face LED signs
    Small LED banner signs
    Outdoor rental LED screen requiring fast maintenance.
    PCB Versions of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:

    P16U1L-RGB20X20-Y1304-SWH

    P16U1L-RGB20X20-X1304-SWH

    P16U1L-RGB20X20-Y1302-SWH

    P16U1L-RGB20X20-Y1301-SWH

    P16U1L-RGB20X20-X1035-SWH

    P16U1L-RGB20X20-X1034-SWH



    Parameters of P16 1R1G1B 320×320 Outdoor Front Access LED Module:

    Item Specification
    LED type DIP346
    Pixel pitch 16mm
    Pixel configuration 1R1G1B
    Module Size 320x320mm
    Module resolution 20x20pixels
    Density 3.906 pixels/
    Driving Mode Static
    Brightness ≥9000CD/ ㎡
    Viewing angle H:120°. V:120°
    Best viewing distance 16m—100m
    Working voltage 5V
    Power consumption 54W
    Module weight 2.5KG
    >Protection grade Front: IP43
    Working Temperature -20 ~60℃




    Download Specification

    P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm Specification
