Notice before order:
1) The Parts included are high-quality cabinets, LED modules, power supplies, the Novastar TB1-4G media player, the NOVASTAR receiving card, power cables, and signal cables. The kit does not include spare LED modules. If you need spare LED modules, you should order them from this link: P2.5 indoor 320x160mm LED module.
2) Buy cabinets of the same batch: to avoid brightness and color differences on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping costs. The goods can be shipped by sea, air, train, or express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination; you should do import customs clearance and pay all tariffs or duties locally.
P2.5 Indoor Multi-functional Video Poster LED Screen Panel Features:

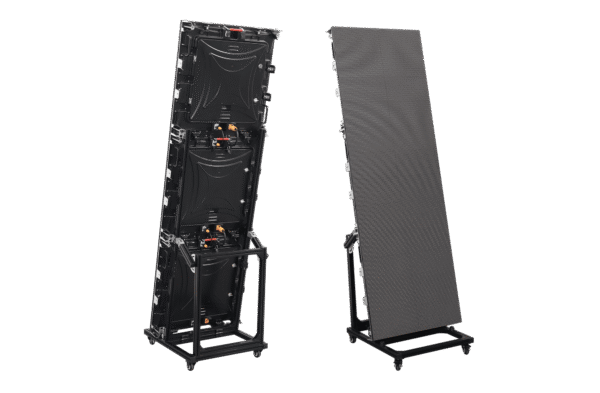

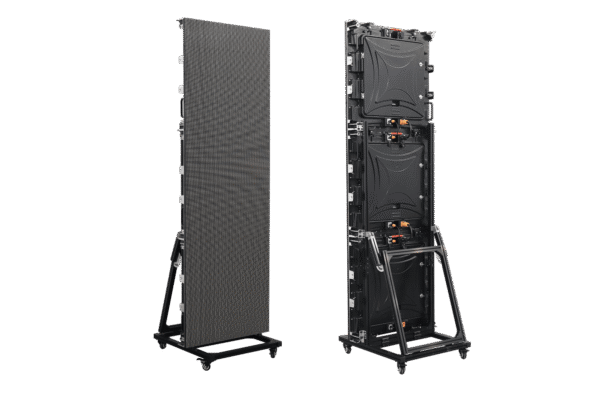

An indoor multifunctional poster screen can be used. A single poster screen can be used alone, and multiple single poster screens can be quickly combined into a larger screen.

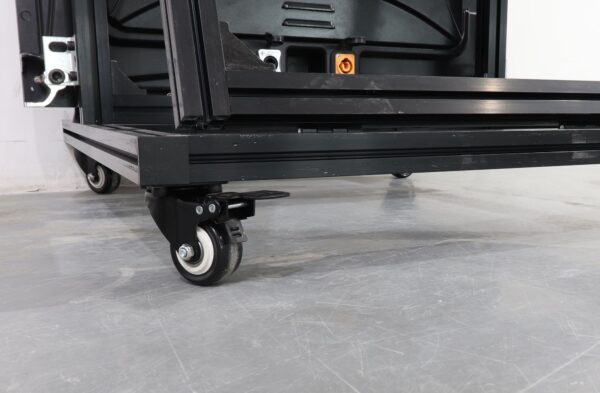

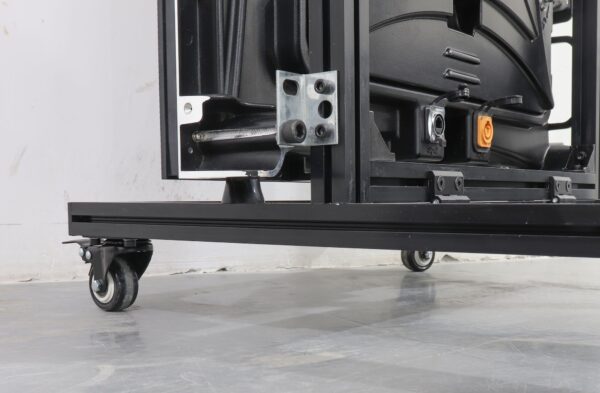

There are 4 rollers on the bottom of the multifunctional poster screen stand for easy movement.

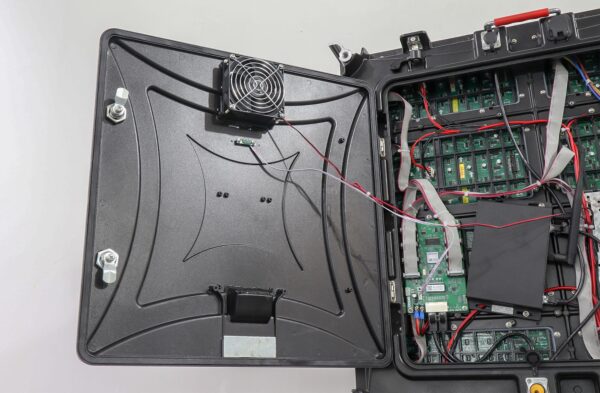

The indoor multi-functional poster screen easily maintains the power supply, receiving card, hub card, and cable, and its operation is convenient, fast, and simple.
The indoor multifunctional poster screen bracket can be easily adjusted from 80 degrees to 90 degrees, and the angle can be adjusted arbitrarily to meet various viewing angle requirements.
P2.5 Outdoor Multi-functional Advertising Poster LED Screen can easily maintain the power supply Parameter:
| LED Lamp Specification |
| Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
| Red |
SMD2121 |
80-104mcd |
120° |
618-623nm |
25℃,15mA |
| Green |
270-338mcd |
120° |
515-519nm |
25℃,10mA |
| Blue |
31-39mcd |
120° |
465-469nm |
25℃,5mA |
| Module Parameter |
| Pixel Pitch |
2.5mm |
| Pixel Configuration |
SMD2121 |
| Density |
160,000pixels/㎡ |
| Module Resolution |
128pixel(L) *64pixel(H) |
| Module Dimension |
320mm(L) * 160mm(H) * 18mm(D) |
| Driving Mode |
Constant current, 1/32 duty |
| Module Quantity in a Cabinet |
2(L) *4(H) |
| Cabinet Dimension |
640（L）*640（H）* 90(D)mm |
| Cabinet Resolution |
256(L) * 256(H) |
| Cabinet Material |
Die-cast aluminum |
| Cabinet Weight |
≈9KG |
| Poster Screen |
| Cabinet Quantity of Whole the Screen |
1(L) *3(H) |
| Display Size |
640 (L)*1920(H)mm |
| Screen Dimension (Bracket included) |
650(L)*640(W)* 2040(H)mm |
| Screen Resolution |
256(L) * 768(H) |
| Screen Weight |
≈36.5KG |
| Adjustable Angle of Bracket |
From 80° to 90° |
| Packaging |
| Packing Method |
Cabinets, structure and all parts are packed into one case |
| Packing Box Style |
Flight case with wheels |
| Packing Box Dimension |
740（L）*590(W)*890（H）mm |
| Total Volume |
≈0.39CBM |
| Gross Weight |
≈69.5KG |
| Electricity Parameter |
| Optical Ratings |
| Brightness |
≥1,000 cd/㎡ |
| Viewing Angle |
160°(Horizontal); 120°(Vertical) |
| Best Viewing Distance |
≥2.5m |
| Gray Level |
16 bits |
| Display Color |
4.4 trillion Colors |
| Brightness Adjustment |
100 grades by software or automatically by sensor |
| Operation Power |
AC100-240V 50-60Hz Switchable |
| Max. Power Consumption |
457 W/㎡ |
| Avg. Power Consumption |
153 W/㎡ |
| Control System |
| Frame Frequency |
≥60Hz |
| Refresh Frequency |
≥3840Hz |
| Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance |
50m(WIFI); 100M (Ethernet cable); 20KM (Optical fiber cable) |
| Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature |
5000—9300 adjustable |
| Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
| Reliability |
| Working Temperature |
-20～+60 ºC |
| Storage Temperature |
-30～+70 ºC |
| Working Humidity |
10%～90% RH |
| Lifetime |
100,000 hours |
| MTBF |
5000 hours |
| Continuous Operating Time |
≥72 hours |
| Protection Grade |
IP31 |
| Out-of-Control Pixel Rate |
≤0.01% |
