We have strong experience in supply chain management and have established long-term cooperative relationships with Nationstar, Kinglight, Meanwell, G-energy, Novastar, Linsn, Huidu, Colorlight, Vdwall, RGBlink, Magnimage, etc. We also Provide the most Advantageous Price, Technical Support, and After-Sales Service.
Original price was: $867.00.$726.00Current price is: $726.00.
1) The Parts included are high-quality cabinets, LED modules, power supplies, a NOVASTAR receiving card, power cables, and signal cables. The package does not include a sending card, which you can order using this link: NOVASTAR MSD300 sending card.
2) Buy cabinets of the same batch: To avoid brightness and color differences on one screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one screen in one order from us.
3) Shipping: The above price does not include shipping costs. The goods can be shipped by sea, air, train, or express. You can get your forwarder to ship the goods for you. Please contact our online sales to confirm the shipping details if you need us to ship the goods.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

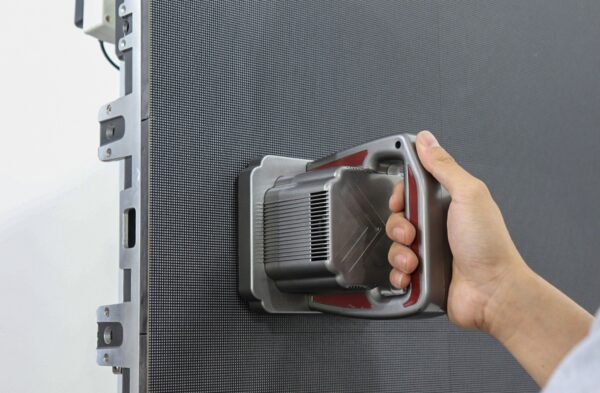

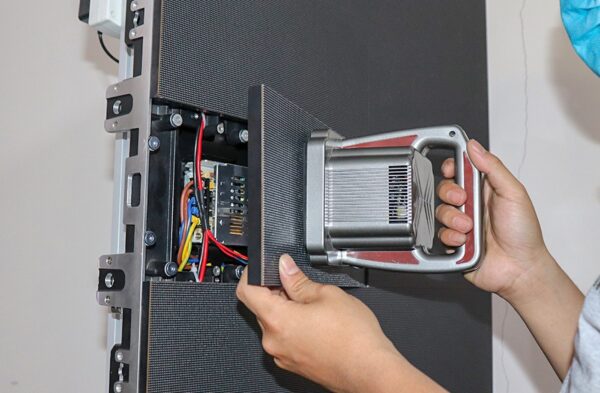

P3.076 Indoor Front Service Multi-functional Video Poster LED Screen Panel Features:

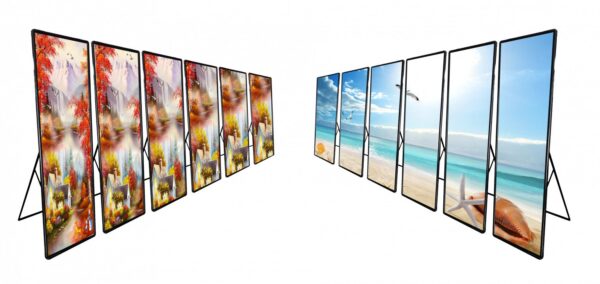

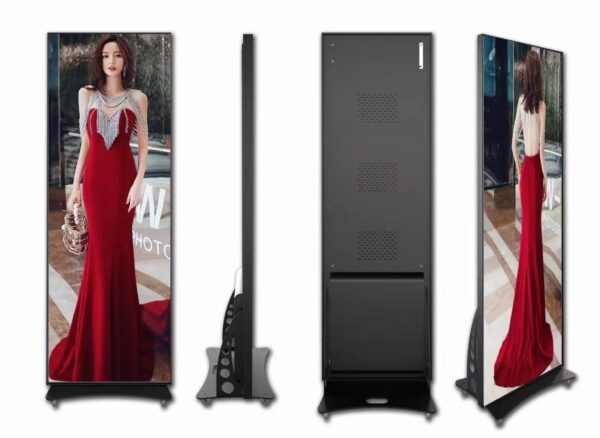

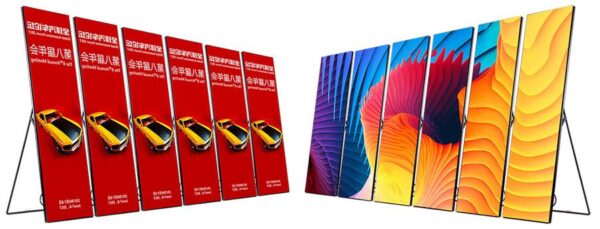

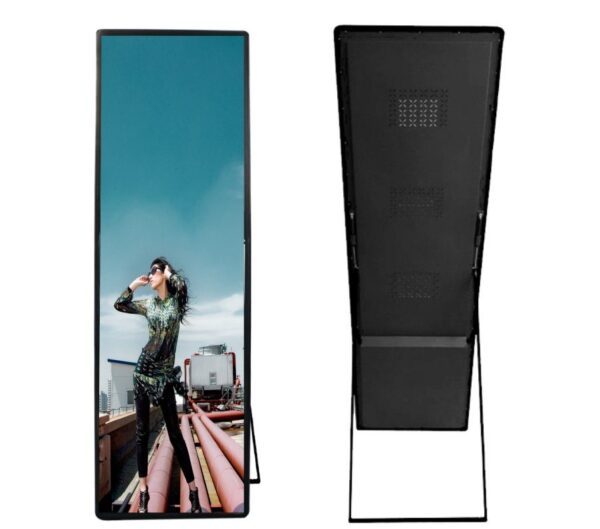

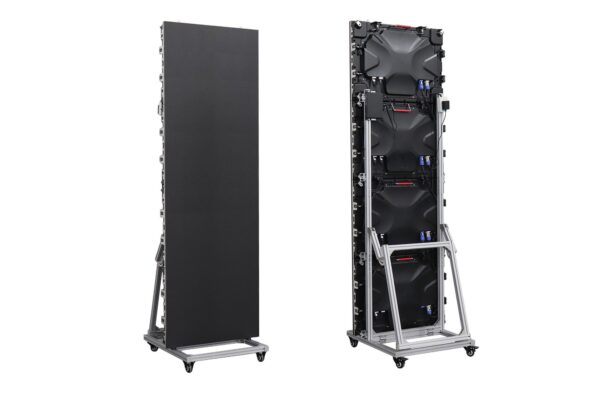

P3 Smart LED Poster Display Price Indoor Mirror LED Digital Poster Banner Displays Parameter:
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Red | SMD2121 | 80-104mcd | 120° | 618-623nm | 25℃,15mA | |
| Green | 270-338mcd | 120° | 515-519nm | 25℃,10mA | ||
| Blue | 31-39mcd | 120° | 465-469nm | 25℃,5mA | ||
| Module Parameter | ||||||
| Pixel Pitch | 3.076mm | |||||
| Pixel Configuration | SMD2121 | |||||
| Density | 105,689 pixels/㎡ | |||||
| Module Resolution | 104pixel(L) *52pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 18mm(D) | |||||
| Driving Mode | Constant current, 1/26 duty | |||||

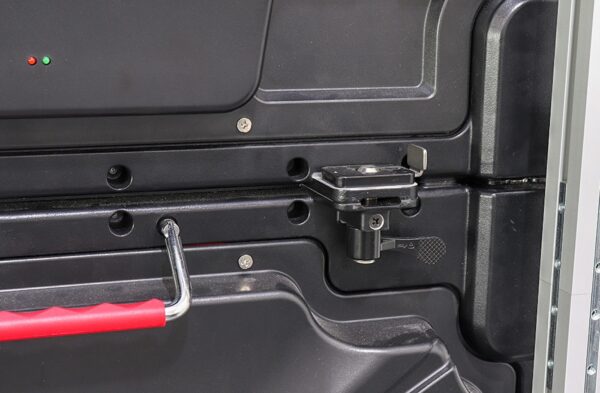

| LED Cabinet | ||||||
| Module Quantity in a Cabinet | 2(L) *3(H) | |||||
| Cabinet Dimension | 640（L）*480（H）* 90(D)mm | |||||
| Cabinet Resolution | 208(L) * 156(H) | |||||
| Cabinet Material | Die-cast aluminum | |||||
| Cabinet Weight | ≈8KG | |||||
| Poster Screen | ||||||

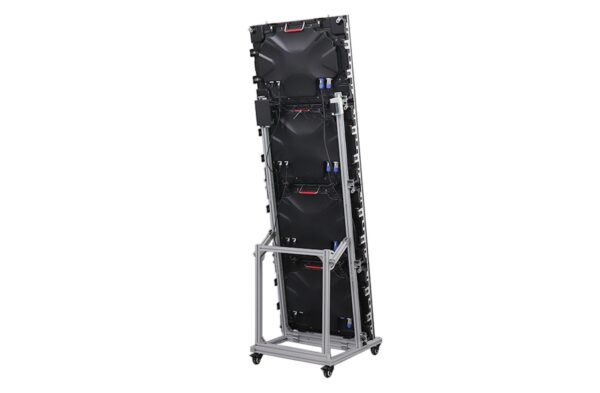

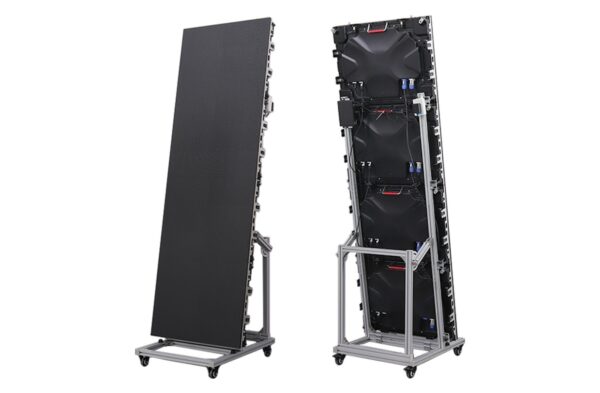

| Cabinet Quantity of Whole the Screen | 1(L) *4(H) | |||||
| Display Size | 640（L）*1920（H）mm | |||||
| Screen Dimension (Structure included) | 650（L）*640(W)*2040（H）mm | |||||
| Screen Resolution | 208(L) * 624(H) | |||||
| Screen Weight | ≈43KG | |||||

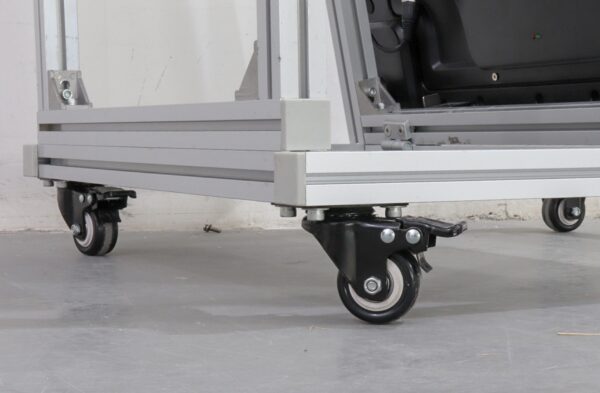

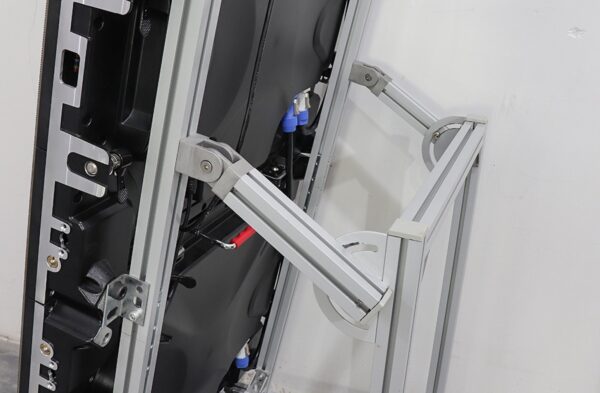

| Adjustable Angle of Structure | From 80° to 90° | |||||
| Packaging | ||||||
| Packing Method | Cabinets, structure and all parts are packed into one case | |||||
| Packing Box Style | Flight case with wheels | |||||
| Packing Box Dimension | 720（L）*660(W)*780（H）mm | |||||
| Total Volume | ≈0.38CBM | |||||
| Gross Weight | ≈75KG | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥1,000 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥3m | |||||
| Gray Level | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Operation Power | AC100-240V 50-60Hz Switchable | |||||
| Max. Power Consumption | 413 W/㎡ | |||||
| Avg. Power Consumption | 138 W/㎡ | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1,920Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 50m(WIFI); 100m (Ethernet cable); 20KM (Optical fiber cable) | |||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
