VDWALL D6000 4K Multi-Window Mosaic Processor 60HZ LED Video Wall Splicer

Original price was: $4,999.00.Current price is: $4,700.00.

1000 in stock

Buy More Pay Less: 5% off (Over 3000USD) / 10% off (Over 6000USD)
    SKU: 79852 Category: Tag:

    VDWALL Showcases the D6000 4K 12×16 Multi-Window Processor

    Faroudja® Real Color®true color processing,10+ Bit Faroudja® DCDI de-interlacing processing,Faroudja® TureLife™ video image augment;

    Versatile input signal:
    6 4K2K_60Hz UHD input,including 4*HDMI2.0 (support HDCP2.2), 2*DP1.2;
    6 HD+SD, analog+digital input,including 2 HDMI1.3(compatible with DVI, VGA input )2*3G-SDI, 2*CVBS;

    Seamless switching and Fade in/Fade out switching between different input signal;

    Support 4K 4 windows 6 images display, 4K arbitrary scaling, open window, overlay. 4 windows include 2*4K and 2*2K,freely scale, overlap, roam among 8 unit screen. 2 *2K window support PIP or POP function,total 6 image display simultaneously;
    16 DVI output,driving capability up to 36 million pixels. Support output resolution 1920× 1080P@60Hz and 16 DVI outputs synchronized splicing,support 15360×2160 screen driving;

    Support user defined output resolution, maximum 2160 pixels in height or width,16 DVI can drive 34560 pixels in horizon or vertical;

    Each DVI output support any in any out cropping, random size and position setup on LED screen, realize perfect mosaic of irregular screen;

    Each DVI output support color, gray level, brightness adjustment in independent RGB channel with 256 level, achieve uniform color of different screen batches;

    Auto calculation aided splicing, user just set the total screen size and unit screen size&position, the device will automatically calculate and complete the splicing, intuitive and convenient;

    Multi-Window support vertical cropping, the cropped image remain the same aspect ratio with the source image, avoid image deformation;
    Support 4 windows overlay, layer sequence can be adjusted freely, optional seamless or Fade in/Fade out switching effect;
    4 windows support image frame function,frame on/off、thickness、colour is adjustable;
    4 windows support input image quality adjustment, including colour、gray level、brightness in independent RGB channel with 256 level;
    Support output image hot backup,Any output port can output same image , greatly enhance output stability,16 outputs can be divided into 8 main and 8 standby;
    Support synchronized monitoring, one 1080P LCD monitor can have a synchronized view of LED screen image;
    13 preset multi-window display modes, support mode duplication and backup. No black screen or blurred screen during mode switching;
    13 preset splicing mode of 16 DVI output, mode duplication and mode backup provided;
    Flexible and convenient front panel control,support remote PC control via RS232/USB/LAN
    Designed for small pitches LED screen,widely applied in exhibition、station advertisement、 stage performance、restaurant、lecture hall、conference room、school auditorium、church、 company promotion etc,;

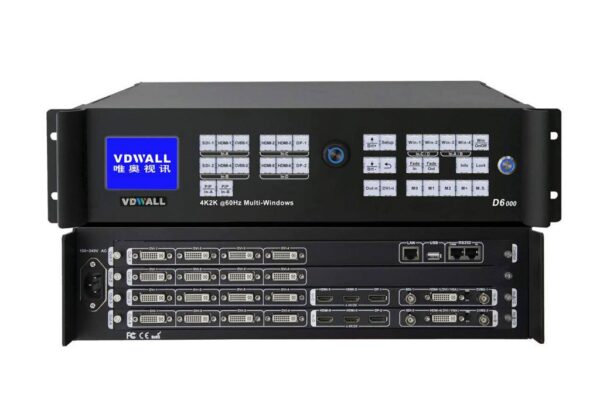

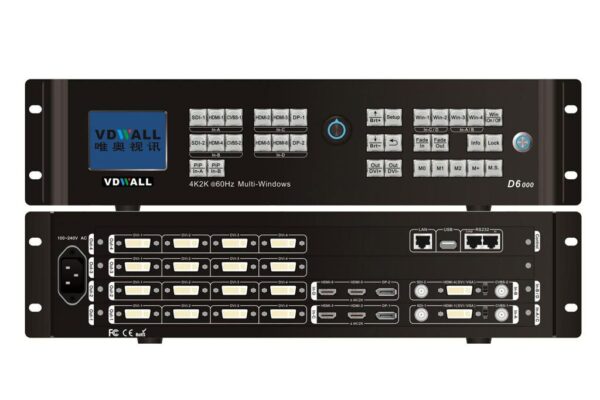

    D6000 LED Video processor Appearance
    VDWALL D6000 4K Multi-Window Mosaic Processor 60HZ LED Video Wall Splicer

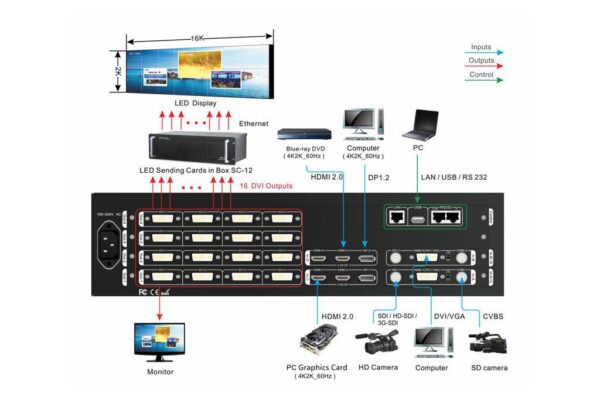

    D6000 LED Video processor Working Diagram Specification
    AC Power Input: 100-240VAC 50/60Hz
    Power Consumption: 110W
    Ambient Temperature: 0-45℃
    Ambient Humidity: 15-85%
    Product Dimension: 482×415.5×109.4mm
    Package Dimension: 510x552x198.4mm
    Net Weight: 8.0Kg
    Gross Weight: 11.4Kg

    Further Information:
    VDWALL D6000 LED Video Processor Specification
