$450.00 – $530.00
LVP615 series LED HD Video Processor wireless WI-FI control&remote control pip/pbp,text overlay synchronic Multi-unit In Parallel.
1. New generation Faroudja® Real Color® professional LED video processor,10+ Bit Faroudja® DCDI Cinema Processing Faroudja® TureLife™ videoenhancer.
2.SeamlessSwitching、FadeinFadeoutSwitching、Blend Switching
3.Twosignalswitching ways：one keyswitchandPre.+Takeswitch
4. 3 sets of custom dualpicture display mode, one key switch between modes. Any PIP/PBP display. AIAO(Any In Any Out) function, any interception andanyoutput.
5. Inputsignalhotsparefunctiontoensureoutputmorestable.
6. Custominput DVIEDIDtorealizeperfectpixeltopixeldisplay.
7.Custom output format. Single unit maximum output horizontal 3840 pixelsorvertical1920pixels.
8. DVI input port supports APPLE PC. DVI Loop unlimited cascade to realize sync. mosaic to drive indefinite LED lattice. Frame sync technology . No miss alignment or delay between two adjacent image outputs.
9.Avariety ofcontrolmethods：wirelessWIFI、 IP/LAN、 frontpanelbutton、 infraredremote control、PC software，Ipad、mobile phone terminaland etc..Flexibleoperation.
10.2 channels configurable external audio inputs. Plus HDMI、DP and SDI audiototal5channelsaudiosyncswitch.
11. Built in 2 pieces LED sending cards(compatible 4 RJ45 ports sending cards.Cardsareoptional.)
12. 24/7application，highreliabilityandstability
LVP615 series product model description

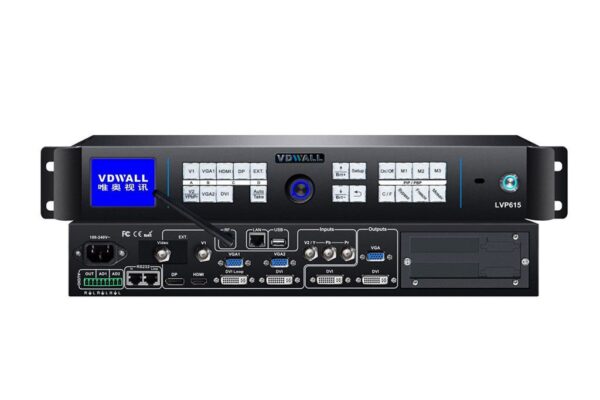

*LVP615： Extend interface optional 1×CVBS

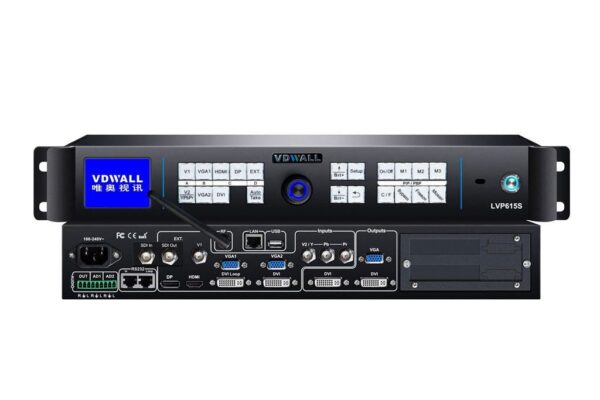

*LVP615S：Extend interface optional 1×SDI/HD-SDI/3G-SDI

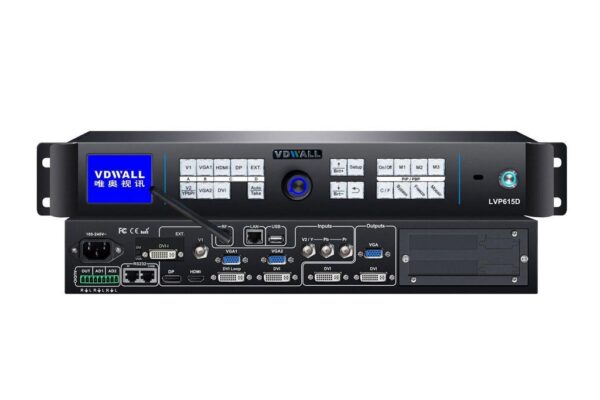

*LVP615D：Extend interface optional 1×VGA/DVI/HDMI

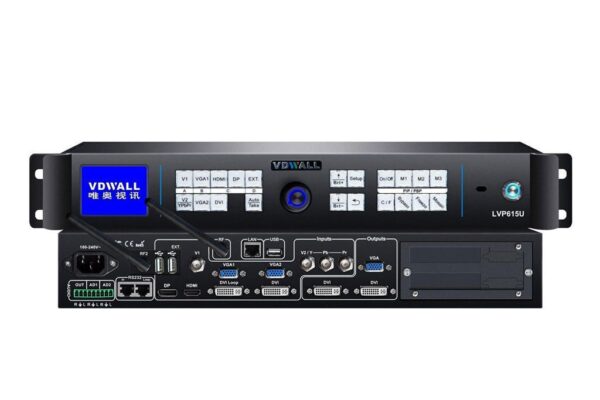

*LVP615U：Extend interface optional 1×Wi-Fi+2×USB
| Inputs | ||||
| Number/type | 2×Video
1×YPbPr 2×VGA（VESA） 1×DP（VESA） 1×DVI（VESA） 1×HDMI（VESA/CEA-861） 1×EXT.（extended Video/DVI-I/SDI） |
|||
| Video system | PAL/NTSC | |||
| Composite video amplitude/Impedance | 1V（p_p）/ 75Ω | |||
| YPbPr format | SD/HD（CEA -861） | |||
| YPbPr
Amplitude/Impedance |
Y= 1.0V（p_p）/ 75Ω
Pb= 0.35V（p_p）/ 75Ω Pr= 0.35V（p_p）/ 75Ω |
|||
| VGA format | PC（VESA） | ≤2048×1152 _60Hz | ||
| VGA Amplitude/Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |||
| DP format | DisplayPort1.1（VESA） | |||
| DVI format | PC（VESA） | ≤2304x1152_60Hz | ||
| HDMI1.3（CEA -861） | ||||
| Custom output format | width≤3840 height≤1920 | |||
| HDMI format
（HDCP1.3） |
PC（VESA） | ≤2304x1152_60Hz | ||
| HDMI1.3（CEA -861） | ≤1920x1080p_60Hz | |||
| SDI format | SMPTE259M-C SMPTE 292M
SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz
576i_50Hz 720p、1080i、1080p |
||
| Audio | 2.0Vp-p/10KΩ | |||

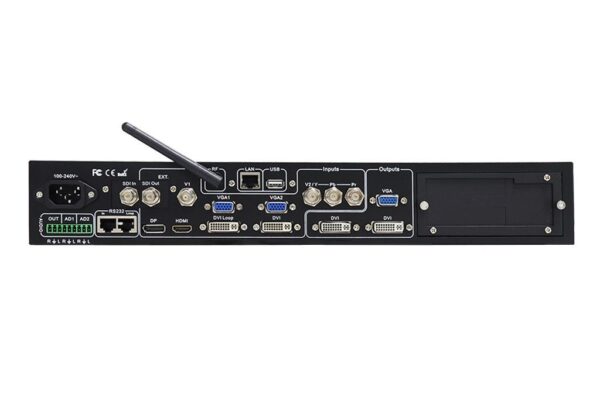

| Input connectors | Video：BNC
YPbPr：BNC×3 VGA：15pin D_Sub(female) DP：DisplayPort SMT female 20pin DVI：24+1 DVI_D HDMI：HDMI port A type SDI ：BNC |
|||
| Outputs | ||||
| Number /Type | 1×VGA（RGBHV）
2×DVI |
|||
| VGA/DVI resolution | 1024×768_60Hz/75Hz
1080×1920_60 Hz 1200×1600_60 Hz 1280×1024_60Hz/75Hz 1366×768_60Hz 1440×900_60Hz 1536×1536_60 Hz 1600×1200_60Hz 1920×1080p_50Hz/60Hz 1920×1200_60 Hz 2048×1152_60Hz 2304×1152_60Hz 2560×816_60Hz Custom output format（maximum output horizontal 3840 pixels or vertical 1920 pixels.） |
|||
| VGA Amplitude/Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |||
| Output ports | VGA OUT：15pin D_Sub( female)
DVI OUT1：24+1 DVI_D DVI OUT2：24+1 DVI_D |
|||
| others | ||||
| Control methods | Wireless wifi,IP/LAN,front panel button,infrared remote control, PC software,Ipad, mobile phone terminal and etc.. | |||
| Input voltage | 100-240VAC 50/60Hz | |||
| Maximum power consumption | ≤25W | |||
| Environment temperature | 0-45 ℃ | |||
| Environment humidity | 15-85% | |||
| size（package） | 130mm（H）×350mm（W）×520mm（L） | |||
| Weight | G.W.：5.7 Kg, N.W.：4.0 Kg | |||
Authenticate
| Model Number | LVP615, LVP615D, LVP615S, LVP615U |
|---|
