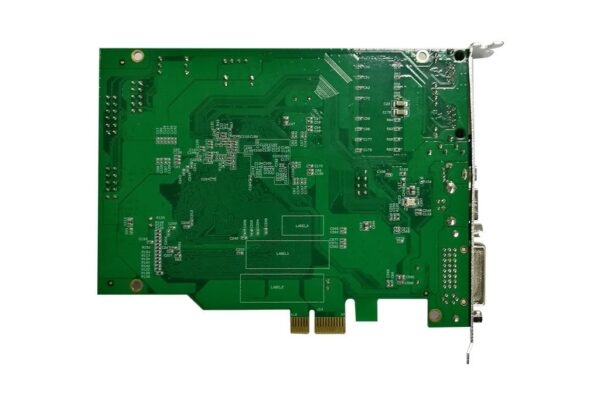

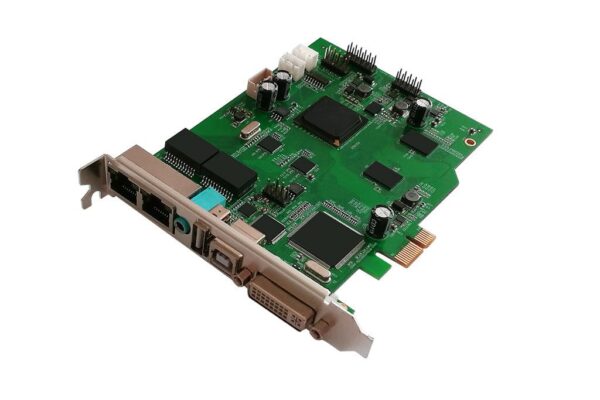

S2 Sending Card
As a new generation of sending card, S2 has updated its core chips, and the performance significantly improved. It adopts dual USB2.0 as the communication interface to achieve high speed communication between the PC and sending cards. S2 realizes cascading between multiple cards and much more convenient. Moreover, it equips PCI-E 1X interface, which is more versatile. S2 can be applied to small display perfectly.
·DVI signal input port
·Audio input port with synchronous transmission via Ethernet cable
·Maximum input resolution: 1920*1200 pixels
·Loading capacity: 1.31 million pixels; Maximum Width: 2560 pixels, Maximum Height: 2560 pixels
·2 Gigabit Ethernet port outputs support screen arbitrary splicing
·Dual USB ports for high speed configuration and easy cascading
·Improved grayscale performance at low brightness
·Equipped with 1*PCI-E interface for increased versatility
·Wide working voltage with DC 3.8~12V
·Compatible with all series of Colorlight receiving cards
| Video Source Interface |
| Interface Type |
DVI |
| Receiving Resolution |
1920*1200 pixels |
| Frame Rate |
60Hz, support auto-adjustment |
| Output Interface |
| Quantity |
2 ports |
| Control Area |
Each net port is 1280*512 pixels (or equivalent area). 2 net ports are 1280*1024 pixels (or equivalent area)
Single card max width up to 2560 pixels, and 2560 pixels in height |
| Transmission Distance |
CAT5≤140M；CAT6≤170M；Optical fiber: No limitation |
| Net Port Cascading |
Up-down or left-right cascading defined by user |
| Transmission Mode |
Frame mode (Gigabit Ethernet) with CRC |
| Connection equipment |
| Receiving Card |
Compatible with all series of Colorlight receiving card |
| Peripherals |
Multifunction card, optical fiber transceivers, gigabit switcher |
| Specification |
| Size |
140*105 mm |
| Input Voltage |
DC 3.8V-12V |
| Rated Power Consumption |
6W |
| Weight |
100g |
| External interfaces |
| Configuration Port |
USB |
| Real-time Configuration |
Support |
| Brightness and Chromaticity Adjustment |
Support |
| Smart Detection System |
DVI interface detection |
| Real-time Clock |
Includes real-time clock |
| More functions |
| Multi-Screen Control |
Multiple screens with different sizes can be controlled simultaneously |
| Background Playing |
Support background playing (Extended mode) |
| Audio Transmission |
Support |
| BER Detection |
Ethernet cable quality and malfunction detection |
