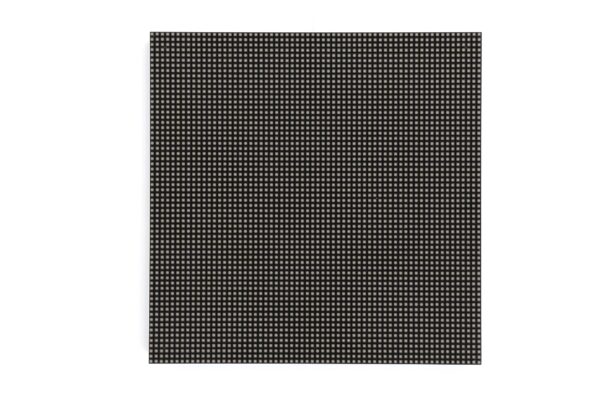

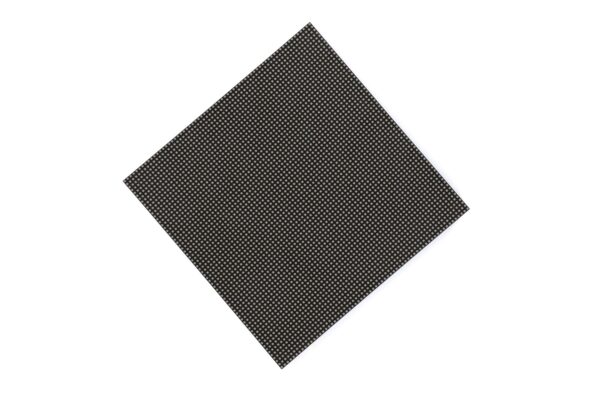

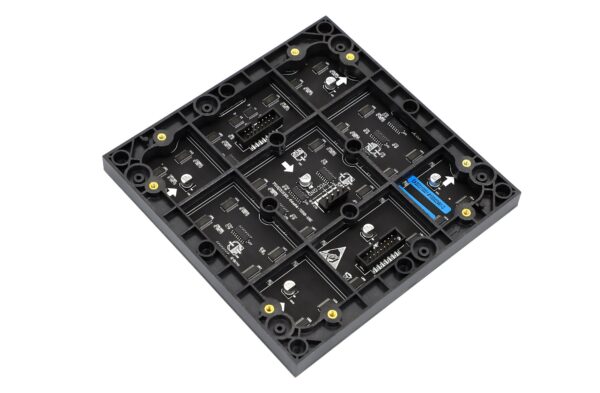

Indoor P2.5 160x160mm HD LED Display Module SMD2020

$45.00

Buy More Pay Less: 5% off (Over 3000USD) / 10% off (Over 6000USD)
    SKU: 84676 Category:

    Notice before order

    1) The Parts included are the LED module, the signal cable between the modules, and the power cable between the module and the power supply.

    2) Buy modules of the same batch: To avoid brightness and colour differences on one screen, you must buy modules of the same batch. That is, you must buy the modules for one screen in one order from us.

    3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you use our LED modules to replace existing ones.

    4) Tariff: Our price does not include any tariffs or duties at the destination. You should do import customs clearance and pay all tariffs or duties locally.

    Indoor P2.5 1/32Scan 64X64dot 160x160mm HD LED Display Module


    Indoor P2.5 1/32Scan 64X64dot 160x160mm HD LED Display Module Specification

    LED Lamp Specification

    Color

    Package

    Intensity

    Viewing

    Angle

    Wavelength

    Testing

    Conditions

    Red

    SMD

    2020

    70-100mcd

    120

    °/120°

    620-625nm

    25℃.

    20mA

    Green

    SMD

    2020

    120-200mcd

    120

    °/120°

    515-530nm

    25℃.

    10mA

    Blue

    SMD

    2020

    30-40mcd

    120

    °/120°

    465-475nm

    25℃.

    5mA

    Module Parameter

    Pixel Pitch

    2.5mm

    Pixel Configuration

    SMD2020

    Density

    160.000 pixels/㎡

    Module Resolution

    64pixel(L) * 64pixel(H)

    Module Dimension

    160mm(L) * 160mm(H) *

    18mm(D)

    Driving Mode

    Constant current. 1/32 duty

    Electricity Parameter

    Optical Ratings

    Brightness

    ≥1.200 cd/㎡

    Viewing Angle

    120°(Horizontal);

    120°(Vertical)

    Best Viewing Distance

    ≥2.5m

    Gray Grade

    14 bits

    Display Color

    4.4 trillion colors

    Brightness Adjustment

    100 grades by software or

    automatically by sensor

    Max. Power Consumption

    20 W

    control system

    Frame Frequency

    ≥60Hz

    Refresh Frequency

    ≥1920Hz

    Input Signal

    Composite Video. S-video.

    DVI. HDMI. SDI. HD-SDI

    Control Distance

    100m(Ethernet cable);

    20KM(optical fiber cable)

    Support VGA Mode

    800*600. 1024*768.

    1280*1024. 1600*1200

    Color Temperature

    5000—9300 adjustable

    Brightness Correction

    Pixel by pixel. module

    by module. cabinet by cabinet

    Reliability

    Working Temperature

    -20~+60 ºC

    Storage Temperature

    -30~+70 ºC

    Working Humidity

    10%~90% RH

    Lifetime

    100.000 hours

    MTBF

    5000 hours

    Continuous Operating Time

    ≥72 hours

    Protection Grade

    IP31

    Out-of-Control Pixel Rate

    ≤0.01%
