LED-780H / 760H/ 750H is a four-splicing video processor that integrates many functions such as video processing,splicing, switching,multi-screen display and so on.The device integrates various professional input interfaces and supports up to 4Kx2K/60Hz. With its high-quality images,super-resolution point-to-point loading and flexible control methods, it is widely used in multimedia conference rooms,multi-purpose halls,theaters and studios,exhibition halls,etc.
The LED-780H/750H has several times the load capacity of the ordinary video processor,and supports EDID management and custom output resolution.The maximum output of a single machine is 780H up to 15360 pixels,750H up to 7680 pixels,and the refresh rate is up to 120Hz.Greatly improve the utilization of output bandwidth.In addition to this,18 fixed output resolutions are available,and the output image is zoomed point by point according to the actual size of the LED display.

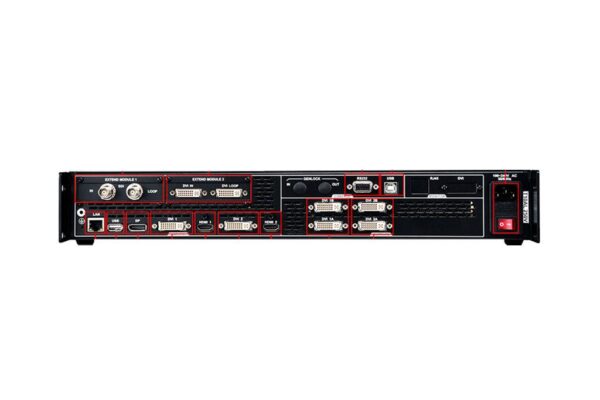

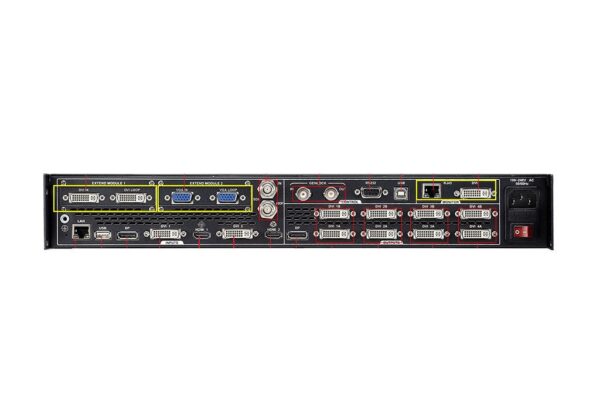

Complete video input interface,including: DVI×2,HDMI×2,DP×1(supports 4K),can also expand 2K input source two channels(VGA, DVk SDI selectable) or 4K input source(DPl.l, HDMll.4 optional) all the way.And support network,USB and RS232 serial port control,easy to interconnect with a variety of video equipment control.
Functions and features:

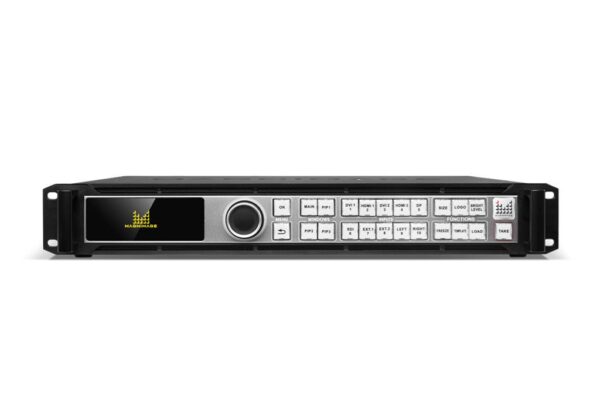

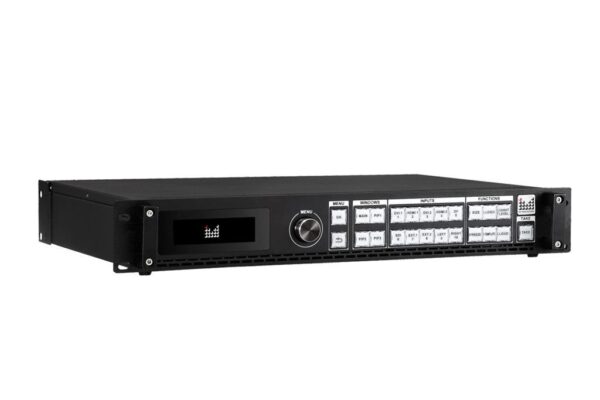

LED- 780H Video Processor
●4 Independent Output
With maximum 8 inputs, it is able to control 4 screens of different input sources. You can also use it as an 8 in-4 out matrix. All the input sources can be switched to any output without black pause or signal pause.
●Combined Display of Main Screen & Side Screen
If you have main screen and side screen, 780H is ideal for this application. You can splice
all of them to 1 picture, or set different input sources to each screen.
●4 Screens Splicing in 1 Processor
LED-780 is designed for different splicing applications.
●Multiple Cascade
Multi LED780H can be cascaded, using a master control, multiple cascade splicing, can realize ultra wide screen splicing display.
●Output Monitoring
There are 2 ways for output monitoring. The first way is done by the machine’s software afteradding a IP output preview module. The second way is done through the Monitor DVI.
●4 Layers Output in 1 Processor
In the one panel mode, each DVI output is able to display 4 independent pictures. Input signal,size and position of these 4 pictures can be changed.
●Rotary Output
The 4 program outputs of LED-780H can be spliced after rotating every 90 degrees independently. Based onthe rotation, the images can also be up-and-down reversed or left-and-right reversed.
Unit Specification
Power Supply 100-204V AC 50/60Hz
Consumption 55W
Operating Temperature 0~45°C
Product Dimension 482.6×452×66.75mm
Net Weight 6.0kg
Accessories
Instruction×1 Power Cable×1 RS232 Serial Cable×1 DVI Cable×1 Certification×1 USB Cable×1 USB Disk×1 DP Cable×1

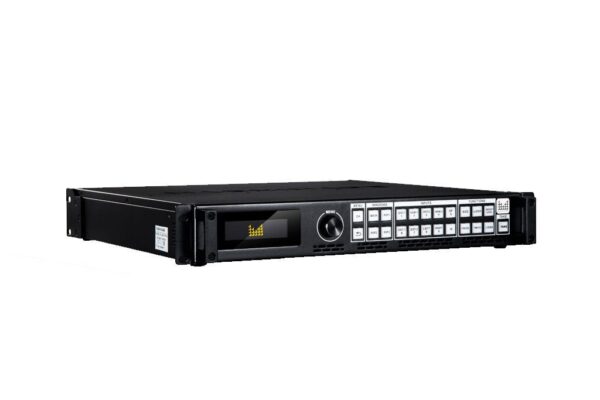

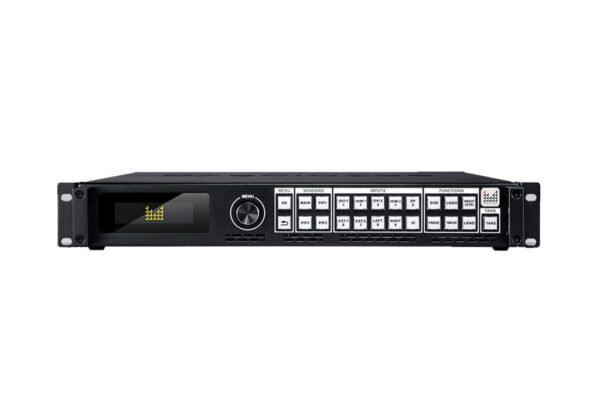

LED-750H Video Processor
Technical Specification
●2 Screens Splicing in 1 Processor
Customize input/output resolution With EDID management, LED-750H is able to customize the input resolution of DVI, HDMI and DP. For the output part, there are 18 available fixed resolutions and customize output resolution function. In order to adjust pixel-to-pixel display from different size LED walls, accurate resolution setting can also be done within this product.
●Single Machine Supports 2 Screens Splicing
For horizontal/vertical, equal/unequal splicing.
●2 independent outputs
LED-750H supports maximum 7 inputs. It canbe used as matrix of 7 inputs and 2 outputs. It can also control 2 different screen with independent content. Any input can be quickly switched to any output without the black or signal break-off.
●Multiple cascade
Cooperates with video server, graphic card split the signal and outputs to multiple LED-750Hs, and cascade to achieve ultra wide splicing.
●4 Layers Output
In the non-splicing mode, each port is able to display 4 independent layers. Input signal, size and position of them can be setup separately.
●Preview Switching
When preview switch is on, DVI 1 output will work as the preview, and DVI 2 work as the program output. Save the preview to the user-defined preset(for switching convenience), and then press the TAKE key to realize seamless switching. The fade duration can be set. The picture shows how 3 layers and 1 layer switch with fade in and fade out.
Console Specification
| Power Supply | 100～240VAC，50/60Hz |
| Consumption | 55W |
| Operating Temperature | 0~45℃ |
| Product Dimension | 482.6×452×66.75mm |
| Net Weight | 5.8Kg |
Accessories
Power cable X 1 DVI signal cable X 1 Square mouth USB cable X 1 DP-DP cable X 1 HDMI cable X 1 VGA cable X 1 Certificate of qualification X1

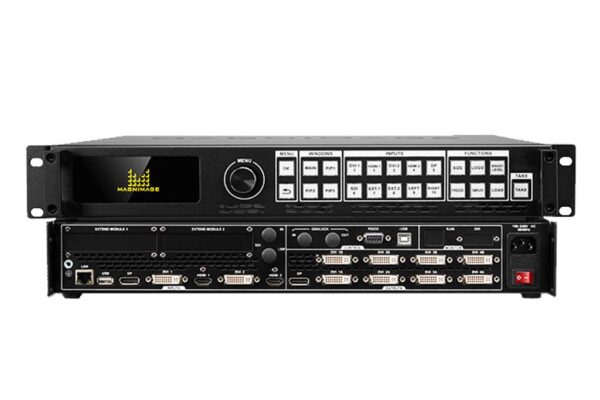

LED- 760H Video Processor
4 screens splicing in 1 processor
Thanks to customize input/ output resolution and superior synchronization,
LED-760H can realize multiple input pixel-to-pixel splicing or single input amplification.
Further Information:
Magnimage LED-760H
Magnimage LED-760H LED Video Processor Specification
