MIG-640 series products are the latest development for the video broadcast control system 4K video switcher, using the industry’s top image processing chip, internal 24-bit digital processing, the use of 4K/60Hz 4:4:4 image processing technology, clearer images, richer colors, and built-in 4K and 2K matrix, support multiple 4K, 2K input fade in and fade out switching between.
With advanced interlaced motion image adaptive processing technology, it can eliminate video image motion trailing and jagged phenomenon, making the output image clearer and more delicate. Clear and delicate; with a wealth of video interfaces, including DP1.2, HDMI2.0, 12GSDI, DVI four common interfaces; can support 8 ultra-high The MIG-640 supports touch-screen operation, and can support 8 channels of ultra-high definition video input.
MIG-640 supports touch screen operation, supports menu fast browsing and parameter adjustment; knobs and buttons precisely adjust the parameters of the layers, small size, powerful and convenient to use. Small size, powerful and convenient to use, it is an indispensable video broadcasting and control equipment for LED industry.
- Switching mode: 4-channel main output, support 4 layers, layer size, position change at will
- Splicing mode: 8-way output, each output can support 4Kx1K@60Hz, can spell a maximum of 16K * 2K@60Hz
- Support 4K * 2K @ 60Hz 4:4:4 input
- Support HDCP1.4&2.2
- 1 way multi-window pre-supervision, you can view the input signal, the output image real-time pre-supervision, and support custom layout
- 8-way hybrid matrix input, a variety of 2K, 4K input
- Support background image capture function
- Input signal support EDID management
- Image interception, layer ZOOM function
- Support multi-machine synchronization, support multi-machine cascade splicing
- Touch screen control
- Support 20 presets saving and calling
- Signal hot backup
LED Video processor Diagram

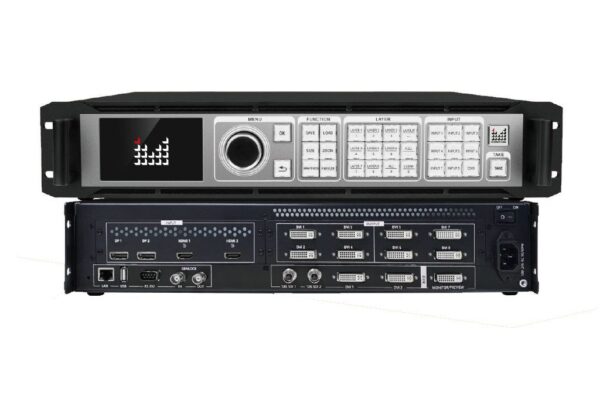

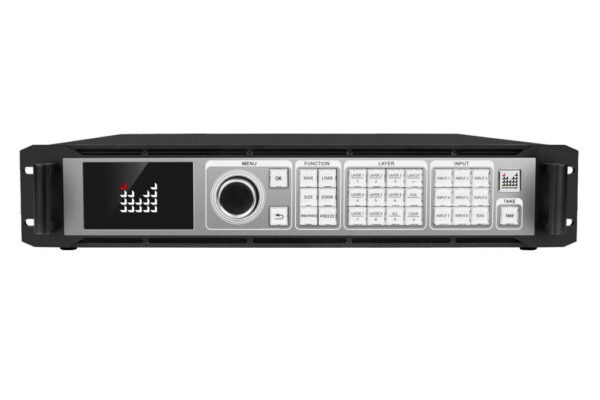

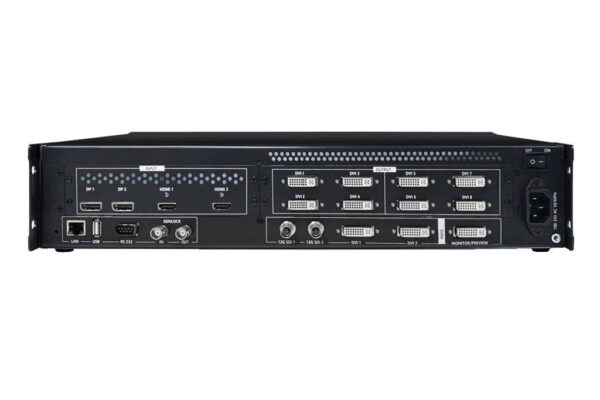

MIG-640 Multi-Screen Video Switcher
8-channel hybrid matrix input
Equipped with DP1.2 (supports 8Kx1K/60Hz), HDMI2.0, 12G SDI, DVI (4Kx1K/60Hz)
Multiple, multi-channel large resolution inputs
8-channel output
Each output can support a maximum of 4K * 1K @ 60Hz, support custom resolution
Seamless switching of four layers
Switcher mode, support 4-channel main output and 1-channel multi-preview
The main output supports 4 layers of arbitrary roaming and 1 background base map
Support 4 layers and fade in and fade out switching between 4 layers
4K signal distribution and splitting
Split multiple 4K inputs into multiple 2K signal splicing outputs
And then integrated into the conventional 2K system
Super resolution splicing function
In the splicing mode, it supports 8 output splicing display; with MIG-690 console, LED-T4S sending device
Can achieve 16Kx2K pixel range of LED splicing display and multi-window, multi-scene switching
Input signal hot backup
MIG-640 supports the main/backup switching of single input and multi-level synchronous switching
Realize the perfect backup of activities, to ensure that nothing can go wrong
12G SDI input
Support lossless transmission standard 4K@60Hz video signal input, so that the picture quality transmission is more secure
Meet the high requirements of broadcasting video signal transmission needs
Technical Parameters
Inputs
| Input interface |
MIG-640-A |
MIG-640-B |
MIG-640-C |
Resolution specifications |
| HDMI2.0 |
2 |
4 |
0 |
3840×2160/60Hz、7680X1080/60Hzand EDID management |
| DP1.2 |
2 |
0 |
4 |
3840×2160/60Hz and EDID management |
| 12G SDI （expandable） |
2 |
2 |
2 |
3840×2160/60Hz and downward resolution compatible |
| DVI |
2 |
2 |
2 |
3840×2160/60Hz and EDID management |
Outputs
| Type |
Port |
Qty |
Resolution Specification |
| Main output |
DVI |
8 |
3840×1080/60Hz and EDID management |
| Multi-window pre-monitoring output |
DVI |
1 |
1920×1080/60Hz |
Whole machine specifications
| Input power |
100-240V AC50/60HZ |
| Overall power consumption |
90W |
| Size（LxWxH） |
482.6X446.3X92.5mm |
| Weight |
6.7KG |
