VDWALL A65 4K LED Video Processor With 4 DVI Output LED Video Wall Splicer

Original price was: $2,999.00.Current price is: $1,080.00.

1000 in stock

In Stock
    SKU: 18157 Category: Tag:

    VDWALL A65 4K Mosaic Processor

    Faroudja® Real Color® image processing,10+ Bit Faroudja® DCDI de-interlacing processing,Faroudja® TureLife™ image quality enhancement;
    5 true 4K2K_60Hz input ports,among which 3 HDMI2.0(HDCP2.2)、2 DP1.2;3 2K combined digital+ analogue input ports, including one HDMI1.3(compatible with DVI、VGA )、one 3G-SDI、one CVBS;
    Seamless and Fade in/out signal transition;
    Genuine 10-Bit image processing,color more vivid and natural,gray level transition more smooth;
    4 DVI output ports,driving capability up to 9.2 million pixels. Synchronized splicing of 3840X2160 LED screen;each DVI output offers user defined resolution, maximum width or height 2160, 4 DVI outputs jointly realize 8640 pixels driving in width or height;
    Any size&position setup of output image and input image cropping, greatly facilitate irregular screen splicing;
    Provides saturation、gray level、brightness adjustment in individual RGB channel with 256 level;
    Adaptive calculation aided splicing,user just configure size&position of each unit screen, A65 will automatically calculate and apply mosaic parameter, flexible and intuitive;
    Synchronized monitoring available,connect one DVI output to 1080P LCD to monitor 4K input signal;
    Genlock multiple device cascading, extend pixel to pixel display to 8K4K@60Hz or 16K2K@60Hz via 4 A65 cascading;
    13 preset display modes,support mode duplication and backup;
    Flexible and convenient front panel control or RS232/USB/LAN control;
    Widely applied in narrow pitch screen projects, such as exhibition、station advertisement、stage performance、restaurant hall、lecture room、school auditorium、church、market promotion etc;VDWALL A65 4K Mosaic Processor
    3×HDMI 2.0(VESA/CEA-861)
    1×DVI(VESA/CEA-861)compatible with HDMI1.3a/VGA

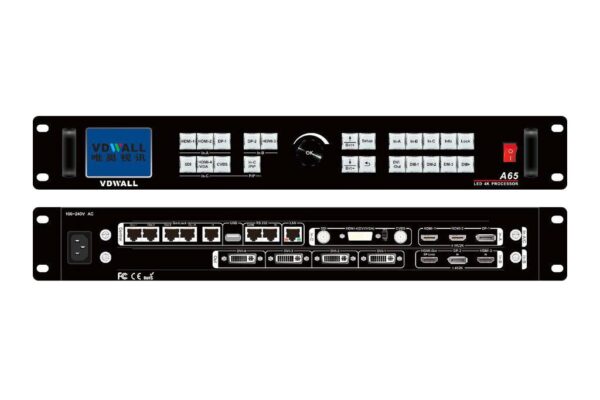

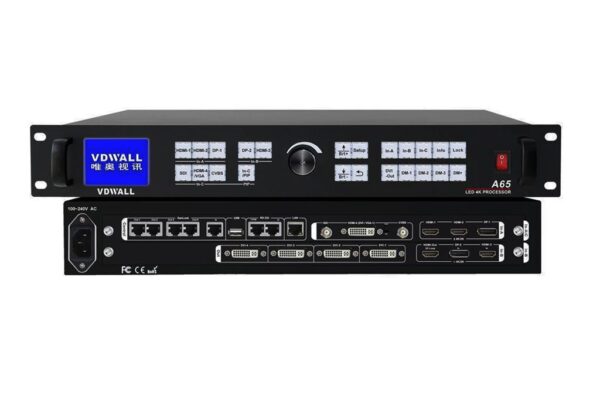

    A65 LED Video processor Appearance

    VDWALL A65 4K Mosaic Processor

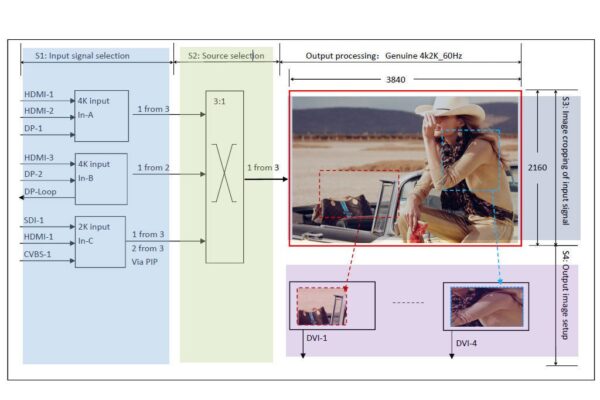

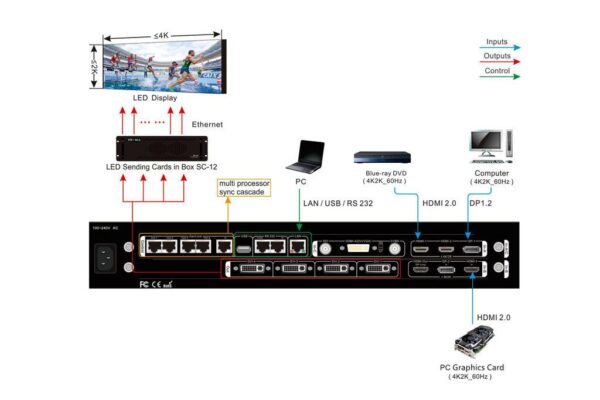

    A65 LED Video processor Working DiagramSpecification

    VDWALL A65 4K Mosaic Processor
    AC Power Input: 100-240VAC 50/60Hz
    Power Consumption: 35W
    Ambient Temperature: 0-45℃
    Ambient Humidity: 15-85%
    Product Dimension: 482x380x66.6mm
    Package Dimension: 535x475x145mm
    Net Weight: 6Kg
    Gross Weight: 8.5Kg

    Further Information:
    VDWALL A65 4K Mosaic Processor
    VDWALL A65 4K Mosaic Processor user manual
