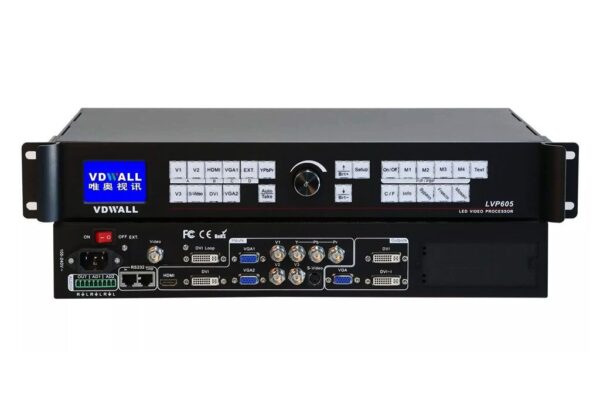

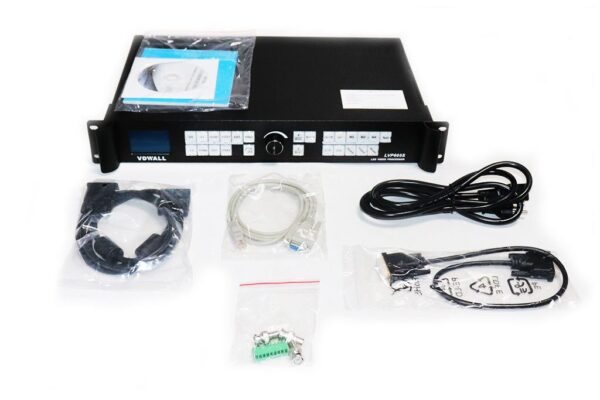

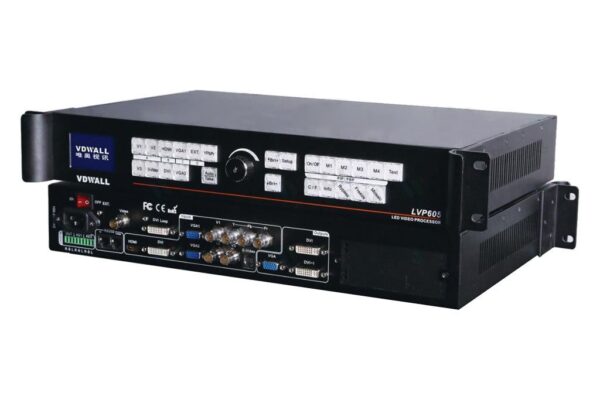

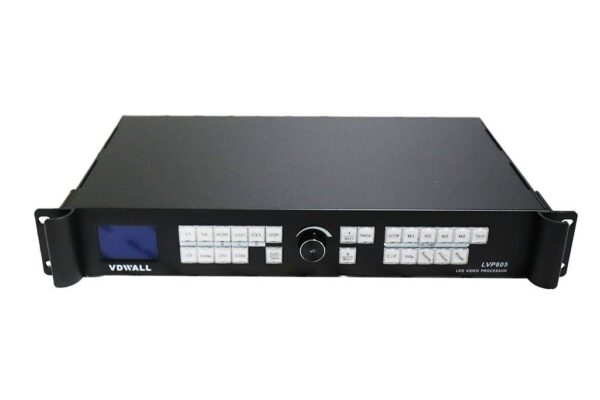

VDWall LVP605 Series LED Display Controller LVP605 LVP605D LVP605S LED Video Processor


In Stock
    SKU: 31341 Category: Tag:

    LVP605 series HD LED Video Processor
    Seamless Switching
    Fade-in / Fade-out switching & Blend switching
    4 custom PIP / POP display modes
    HD Text, Flash, Graphics & Logo Overlay

    1. 10+ Bit Faroudja® DCDI Cinema Processing
    2. New Faroudja® Real Color®
    3. Faroudja® TureLife™ Video Enhancer
    4. Advanced 4×4 Pixels Interpolation Scaling Algorithm
    5. HDMI 1.3a with HDCP, HD 1080P input
    6. SDI / HD-SDI / 3G-SDI (1080P) Input
    7. 10-bit Processing
    8. Seamless Switching, Fade-in / Fade-out switching & Blend switching in random input signals
    9. HD Text, Flash, Graphics & Logo Overlay
    10. 4 custom PIP / POP display modes, which can be switched by pressing one button
    11. Hot Spare function, display will be stable and reliable
    12. Picture Freeze function
    13. AIAO( Any In Any Out ) function allows for displaying any capturing picture in specific area on the screen
    14. 2304 x 1152 or 2560 x 816 output for single machine
    15. Multi-machine in parallel, multi-unit installed in parallel drive indefinite LED lattice
    16. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command for operating and setting
    17. Press keys or knob on frontal panel to directly select 10-channel input signal source,including:
    3×CVBS 1×DVI 1×HDMI
    2×VGA 1×YPbPr / YCbCr 1×S-Video
    1×EXT.( extended modle , can be VIDEO or SD I / HD-SDI / 3G-SDI or VGA / DVI / HDMI )
    18. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI and SDI audio,there are 5-channel audio for synchronous switch
    19. 2 LED Transmission Cards Built-in ability ( sending cards are optional )
    20. 24 / 7 Application

    LVP 605 series product model description

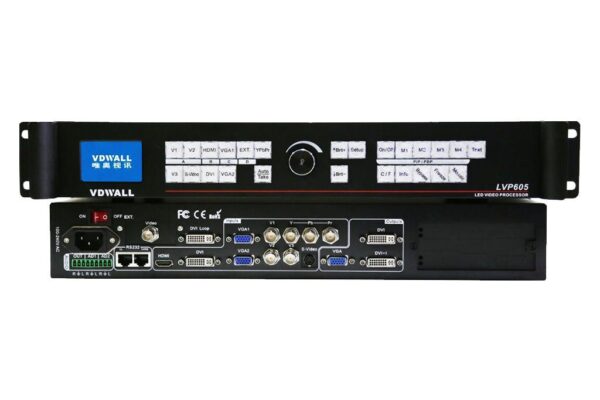

    *LVP605: Extend interface optional 1×Video
    *LVP605S:Extend interface optional 1×SDI/HD-SDI/3G-SDI

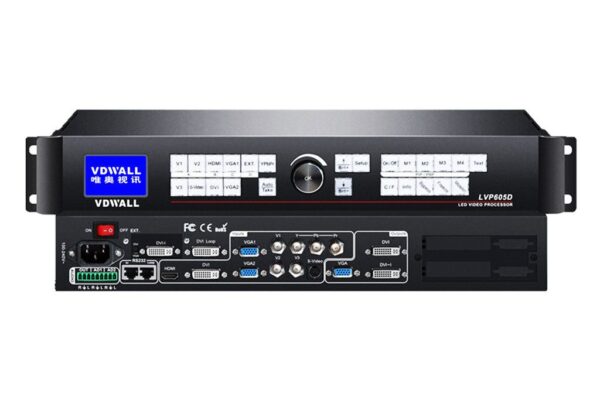

    *LVP605D:Extend interface optional 1×VGA/DVI/HDMI

    • Feature one : Fade-in / Fade-outLVP605S LED Video Processor
    • Feature two : PIP, POP, Text overlayLVP605S LED Video Processor

    Large venus display applications such as: Rental Performance, TV broadcast center, large-scale stage and theatre, high-end meeting, exhibition etc

    Synchronic Multi-unit In Parallel
    LVP605S LED Video Processor
    Connection Diagram:
    LVP605S LED Video Processor

    Number/Type 3×Video



    2×VGA (RGBHV)

    1×HDMI (VESA/CEA-861)

    1×DVI (VESA)

    1×EXT. (Extended)

    Video system PAL/NTSC
    Composite Video


    1V (p_p) / 75Ω
    S-Video Amplitude /Impedance Y: 1.0V (p_p) / 75Ω, C: 0.35V (p_p) / 75Ω
    VGA Format PC (VESA) ≤2048x1152_60Hz
    VGA Amplitude /Impedance R、G、B = 0.7 V (p_p) / 75Ω
    DVI Format PC(VESA) ≤2304x1152_60Hz
    HDMI Format

    ( HDCP )

    PC(VESA) ≤2304x1152_60Hz
    HDMI1.3(CEA -861) ≤1920x1080p_60Hz
    YPbPr Format SD/HD (CEA-861) ≤1920x1080P_60Hz
    YPbPr Amplitude /Impedance Y= 1.0V (p_p)/75Ω

    Pb= 0.35V (p_p)/75Ω

    Pr= 0.35V (p_p)/75Ω

    SDI format SMPTE259M-C SMPTE 292M

    SMPTE 274M/296M

    SMPTE 424M/425M




    Audio Scope/Impedance 2.0Vp-p/10K?

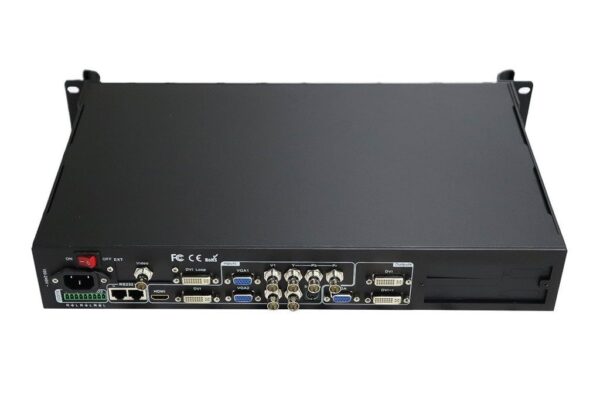

    Input Connectors VGA: 15-pin D_Sub (Female)

    DVI: 24+1 DVI_D

    YPbPr: BNC×3

    Video: BNC

    S-Video: 4pin mini DIN (Female)

    SDI: BNC

    Number/Type 1×VGA (RGBHV)


    VGA/DVI Format 1024×768_60Hz/75Hz









    1920×1200_60 Hz

    1200×1600_60 Hz

    1080×1920_60 Hz

    1536×1536_60 Hz

    Customizable output format (maximum horizontal pixel: 3840 or maximum vertical pixel: 1920)

    VGA Amplitude /Impedance R、G、B = 0.7 V (p_p) / 75Ω
    Output Connectors VGA OUT: 15-pin D_Sub (Female)

    DVI OUT1: 24+5 DVI_I

    DVI OUT2: 24+1 DVI_D

    Control Panel Buttons
    Input Voltage 100-240VAC 50/60Hz
    Maximum Power Consumption ≤20W
    Environment Temperature 5-40 ℃
    Environment Humidity 15-85%
    Package Size 145 mm (H) ×370mm (W) ×535mm (L)
    Weight (G.W.) 5.0 Kg
    Weight (N.W.) 3.2Kg


    LVP609 LED Video Processor

    Model Number

    LVP605S, LVP605, LVP605D
