Magnimage S series LED Sending Box S200 T4S T16S LED Display Controller


SKU: 22857 Category: Tags: ,

Magnimage S series transmitting equipment products, including transmitting card and 2K, 4K independent master control three products, with a variety of output interfaces, with super output, input capacity; combined with self-developed bandwidth expansion technology, free wire technology and C-LINK debugging software, can meet a variety of LED screen ultra-wide, ultra-high resolution signal configuration and screen display needs..
Magnimage S series LED Sending Box S200 T4S T16S LED Display Controller

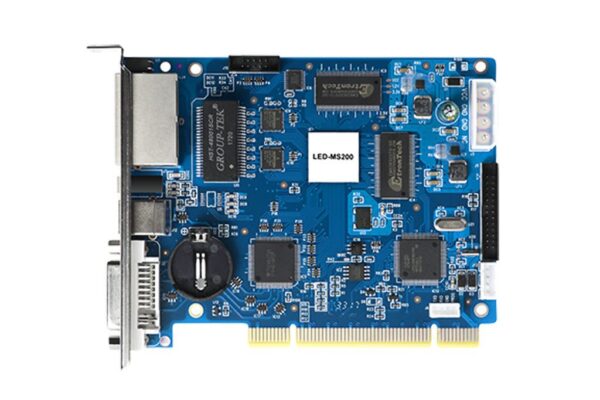

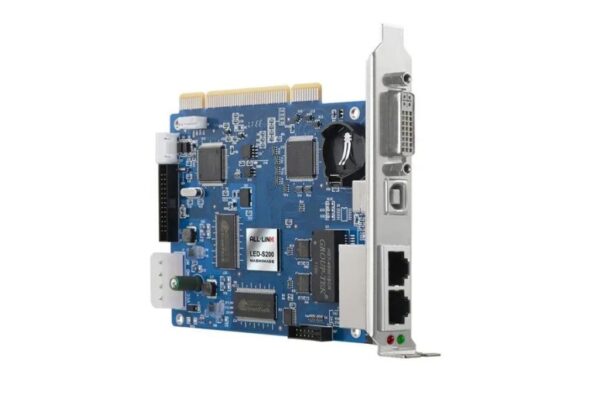

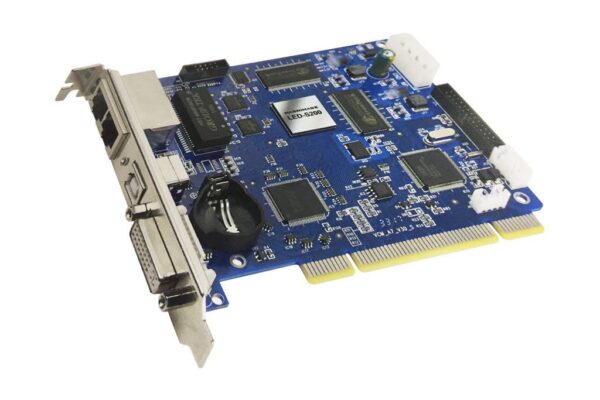

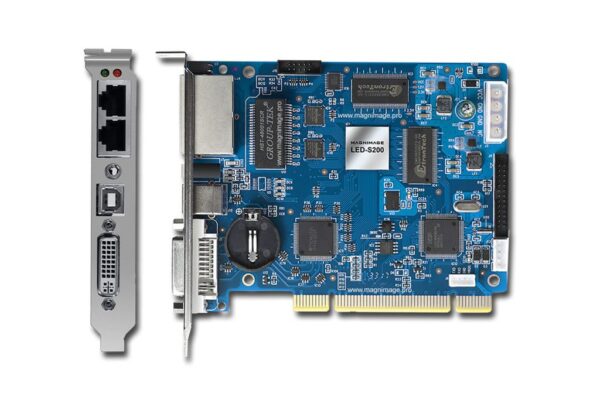

LED-S200 Sending Card: output 2 million pixels, input 4096px (widest/maximum)
Single mesh 1.0 megapixel

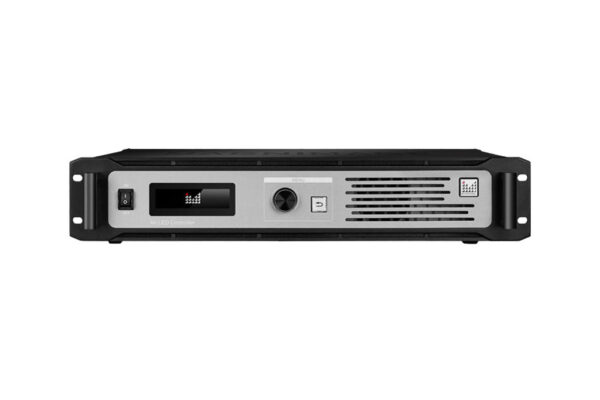

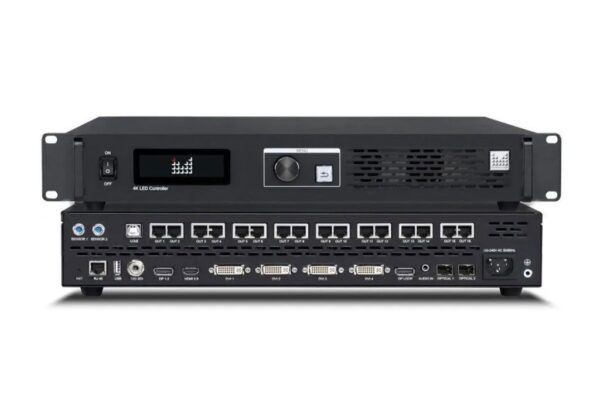

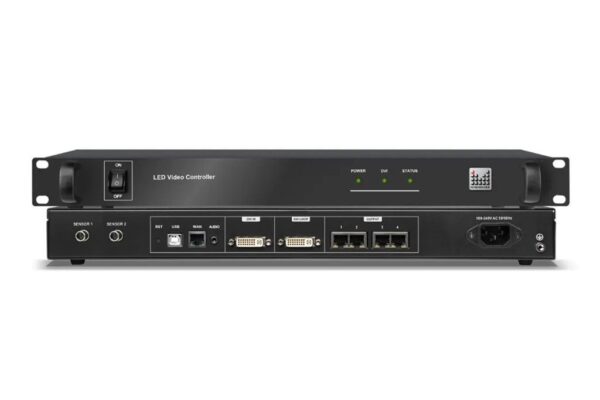

Through its self-developed bandwidth expansion technology, the single-port band load of 650,000 pixels is boosted to 1 million @ 60Hz, with no frame degradation in the refresh rate.LED-T4S Sending Box: Output 4 million pixels, input 4K*1K/@60Hz(LED-T4S independent master control DVI input interface, can support 4 million pixels input, i.e. 4Kx1K/60Hz)LED-T16S Sending Box: Output 10.4 million pixels, input 4K*2K/@60Hz

  • Support for LAN control

The 2K/4K independent master controller supports LAN control. It can be connected via computer and network cable in the same LAN to achieve unified management of multiple independent controllers in a project with large resolution LED screen.

  • C-LINK Broadcast Control Software

C-LINK is the debugging software specially developed for LED display calibration by Miprovision, it can be used by connecting and sending equipment; it can realize online monitoring, intelligent setting, intelligent scale sequence, redundancy setting, EDID management, Gamma value, brightness, contrast, RGB color management and other functions for LED display.

It also has the following four main functions.

1: Free alignment function
With no more than a single mesh with load, through a unique free routing technique.Make each mesh band load can be fully used, and leave the blank does not count into the band load range, in the small pitch screen or shaped LED screen project, play a cost-saving role, cost-effective.Magnimage S series LED Sending Box S200 T4S T16S LED Display Controller

2:Calibration function
C-LINK broadcast control software supports the correction function, which can correct the brightness of the LED screen, improve the uniformity of the screen display and make the screen display effect consistent.Magnimage S series LED Sending Box S200 T4S T16S LED Display Controller

3: Stitching Function
C-LINK broadcast control software supports stitching function, which completely solves the problem of physical installation of LED screen stitching and makes the screen display more perfect.

4: Playback Function
In C-linK debugging software, the built-in S-LINK studio software can play video, picture, text, clock, weather and other functions to solve the problem of LED screen content playback.


Model Number

T4S, S200, T16S

1. Strong technical background. We are a professional LED screen manufacturer in Shenzhen, China. Our engineers are experienced in all kinds of LED controller card configuration and operation, producing and using LED screens.

2 No MOQ request on all our products. You can buy even one sample to test our products before placing bulk orders. Many other suppliers have strict MOQ requests, which is inconvenient for buyers.

3. Quick and safe payment. You can pay by credit card through Paypal, which offers complete buyer protection and avoids having to share any of your financial information.

4. Good quality control. Our technicians inspect all the products earnestly before packaging.

5. Long warranty period. All LED controller products from are under 2-year warranty. You can send the defective products back to us for repair during the warranty period, and we will repair them and send them back to you. The sender affords the shipping cost.

6. Good support fr

1. We ship most of the items listed at our online shop worldwide using the fastest shipping method with a tracking number via DHL, FedEx, or UPS Express, which takes around 4~8+ days to arrive. For Brazil, we only use EMS Express. The buyer must pay USD35 extra for the freight cost if shipping companies list the delivery address as a remote area.

2. We can use the buyer's shipping account to send the goods. But the buyer shall make an appointment for the pickup by himself and send us the shipping label. Simply providing us with a shipping account will not be accepted. If you use a FedEx account, please ask them for a control or reference number.

3. We will process your order within 1~3 working days after receipt of payment. We will re-inform you with another fastest delivery time when it happens to be " "Out of Stock" for the products on your order.

4. We only ship to your order's confirmed address, so please confirm the delivery address on your payment account when you pay by PayPal or Credit Card. We will cancel the order and refund you if it does not match. It is OK if you pay by Wire Transfer or Western Union.

5. The shipping company provides service transit time, excluding weekends and holidays. Transit times may vary, particularly during the holiday season.

6. The buyer shall pay the customs duty on his side if it occurs. Please let us know if you want to lower the product value in the shipping invoice. If not, we will use the actual amount as paid. In most EU countries, this is not allowed. It has to be the real amount paid. A VAT number must be provided for customs clearance for all EU countries, including Switzerland, Norway, and Ireland.

7. If required, please provide some necessary assistance for the shipping company concerning the customs clearance of the goods in your country.

8. When they arrive, Please check the items in front of the DHL/FedEx courier. If the goods are damaged, please try to obtain local DHL's documentary evidence for the breakage, and in the meantime, email us photos of the packaging and products as soon as possible.

9. Please contact us if you have not received your shipment within 15 days from the payment date. We will track the shipment and get back to you with a reply ASAP.

10. The products purchased will not be accepted for return and warranty if the codes are ripped off. We do not accept refunds for custom-made products. Regularly stocked items may be returned for refund with a 20% restocking charge if the request is made within 3 days of receiving. Items must be in a good and resalable condition. Shipping costs back and forth and import taxes (if they are any) are all borne by the buyer.

11. We provide six months to one year of quality warranty for most LED part products and 2 years for complete LED display products (Special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace them free of charge in our factory. Customers are responsible for back-and-forth shipping costs.
