Novastar Fiber Converter CVT10-S CVT10-M EO Converter Device Fiber Interface

Original price was: $2,000.00.Current price is: $900.00.

In Stock
    SKU: 78328 Category: Tag:

    The CVT10 fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission. The CVT10 hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT10 devices, or one CVT10 device and a connecting piece can be combined into one assembly that is 1U in width.
    The CVT10 is used for long-distance data transmission. Users can decide a connection method based on whether the sending card has optical ports.

    Fiber Converter CVT10

    • Models include the CVT10-S (single-mode) and the CVT10-M (multi-mode).
    • 2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s
    • 10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s
      • Fiber in and Ethernet out: 8x Ethernet ports available (ports 1–8), ports 9–10 currently unavailable (to beavailable in the future upgrade)
      • Ethernet in and fiber out: 10x Ethernet ports available
    • 2 types of power connectors, including a 3-pin power socket and a PowerCON socket
    • 1x type-B USB control port

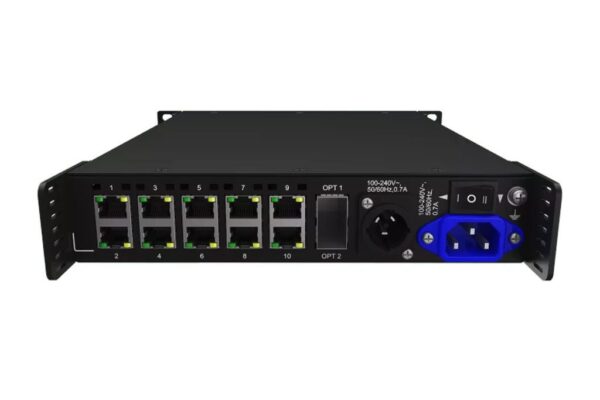

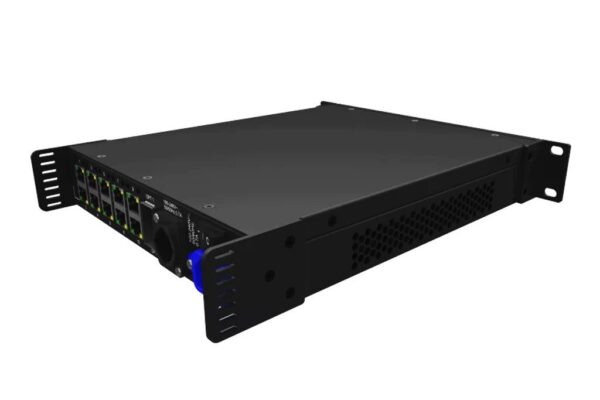

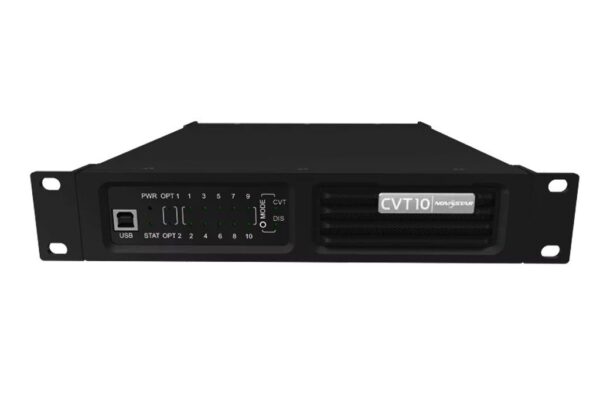

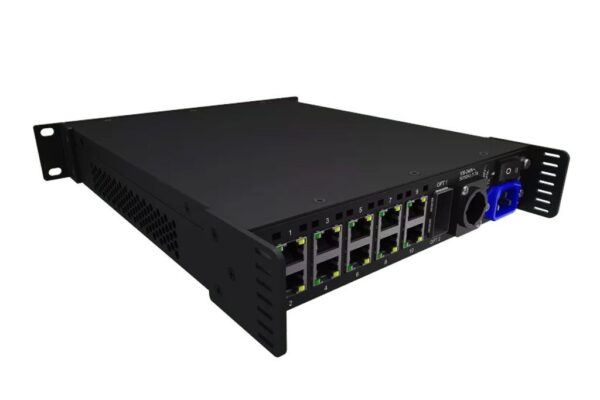

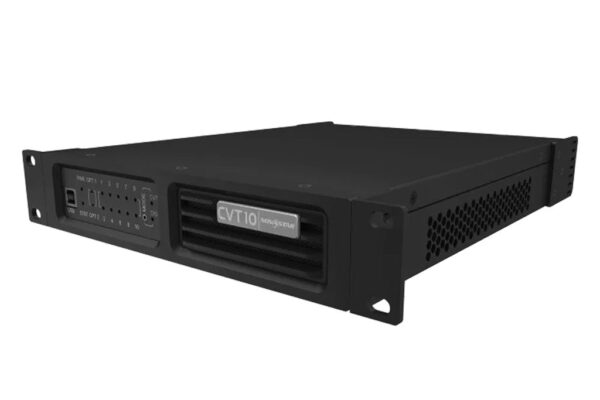

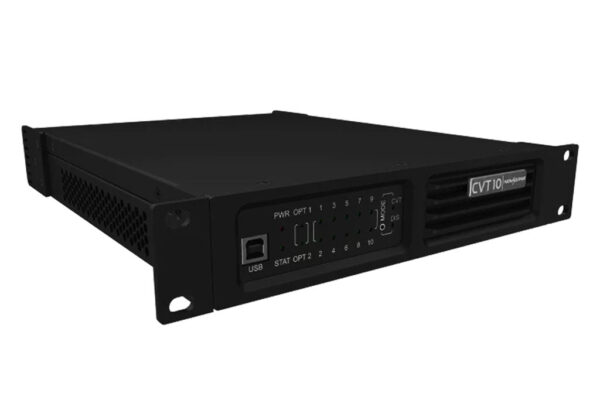

    Fiber Converter Appearance
    Novastar Fiber Converter CVT10
    Novastar Fiber Converter CVT10 Parameters

    Electrical Specifications

    Power supply

    100-240V~, 50/60Hz, 0.7A

    Rated power consumption

    22 W

    Operating Environment

    Temperature

    –20ºC to +60ºC

    Humidity

    10% RH to 80% RH, non-condensing

    Storage Environment

    Temperature

    –20°C to +70°C

    Humidity

    10% RH to 95% RH, non-condensing

    Physical Specifications

    Dimensions

    254.3 mm × 50.1 mm × 290.0 mm

    Net weight

    2.1 kg

    Note: It is the weight of a single product only.

    Gross weight

    3.1 kg

    Note: It is the total weight of the product, accessories, printed materials and packing materials packed according to the packing specifications.

    Packing Information

    Packing box

    362.0 mm × 141.0 mm × 331.0 mm, kraft paper box

    Outer box

    387.0 mm × 173.0 mm × 359.0 mm, kraft paper box

    Packing list

    l 1x CVT10

    l 1x Power cord, 1x USB cable, 1x Ethernet cable

    l 1x Supporting bracket A (with nuts), 1x Supporting bracket B (without nuts)

    l 1x Connecting piece

    l 12x M3*8 screws

    l 1x Assembling diagram

    l 1x Certificate of Approval

    Certifications

    RoHS, FCC, CE, IC

    Further Information:
    CVT10
    Novastar Fiber Converter CVT10 Specification

    Model Number

    CVT10-S, CVT10-M
