Novastar Thunderview V1 LED Video Processor Low Latency System Solution

The Thunderview_V1 is a video processor developed by NovaStar based on the powerful FPGA processing platform.
It is designed with various signal inputs, including 2 SDI, 1 DP, 1 CVBS, 1 VGA, 3 HDMI, 1 DVI, and 1 HDBT.
It supports input resolutions up to 4096×2160@60Hz and UHD input and output displays.
With low latency and a fast signal source switching within 0.25 second, it can give you a faster operation experience.

*For the sake of easy understanding, the Novastar Thunderview Low Latency System Solution icon is included. For the entire system, please purchase the Novastar S1 LED Video Processor and the Novastar TR100 Receiving Card.

Powerful signal processing algorithm provides ultra-clear image quality.

• The Thunderview_V1 has a wide variety of video input ports, including 2 SDI, 1 DP1.2, 1 CVBS, 1 VGA, 2 HDMI2.0, 1 HDMI1.3, 1 DVI, and 1 HDBT.
• Supports input and output resolutions up to 4096×2160@60Hz.
• Thunderview_V1 can scale the input image according to the screen resolution.
• The position and dimension of Picture in Picture (PIP) can be adjusted and controlled as you like.
• Supports 1 S/PDIF, an external independent audio output.
• Multiple Thunderview_V1 units can be cascaded to load larger screen.
• The Thunderview_V1 system configuration can be done without using computer software. Currently, the configuration can be completed by only rotating one knob and pressing one button.
• The intuitive LCD display interface and clear button light indication simplify the system control.
• Users can control and operate the Thunderview_V1, load the logo file and switch input sources through web page.

Input Interface
2 SDI-HD inputs (standard SMPTE; supports 484i, 576i, 720P, 1080i and 1080P.)
1 DP input (Maximum resolution supported up to 4096×2160 @ 60Hz)
2 HDMI2.0 inputs (Maximum resolution supported up to 4096×2160 @ 60Hz)
1 HDMI1.3 input (Maximum resolution supported up to 1920×1080 @ 60Hz)
1 DVI-D input (Resolution up to 1920 × 1080 @ 60Hz)
1 CVBS input (NTSC / PAL adaptable)
1 VGA input (Resolution up to 1920 × 1080 @ 60Hz)
1 HDBT input (Maximum resolution supported up to 4096×2160 @ 60Hz)

Output Interface
1 DVI output (Output resolution supported: 1920 × 1200 @ 60Hz)
1 SDI-HD output (standard SMPTE; supports 484i, 576i, 720P, 1080i and 1080P.)
1 HDMI2.0 output (Maximum resolution supported up to 4096×2160 @ 60Hz)
1 S / PDIF output (Supports coaxial digital audio output)
1 HDBT output (Maximum resolution supported up to 4096×2160 @ 60Hz)

Control Interface
ETHERNET RJ45 (Communication with PC, or Access Network)
USB x2

Energy
Input power: AC 100-240V ~ 50 / 60HZ AC
Total power consumption: 50W
Operating temperature: -20 ° C-60 ° C
Dimensions (Length x Width × Height): 482 x2 80.4 x 51.5 (mm)
Weight: 3.67 kg.

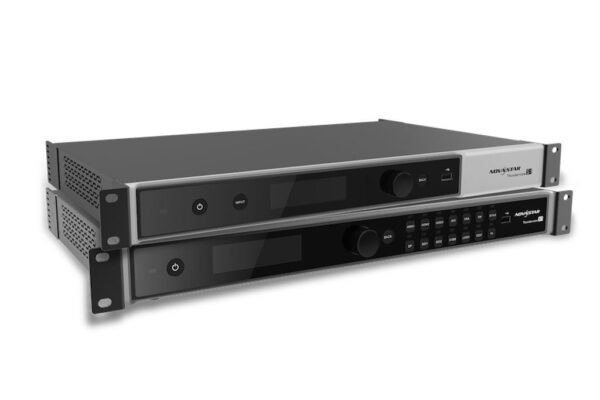

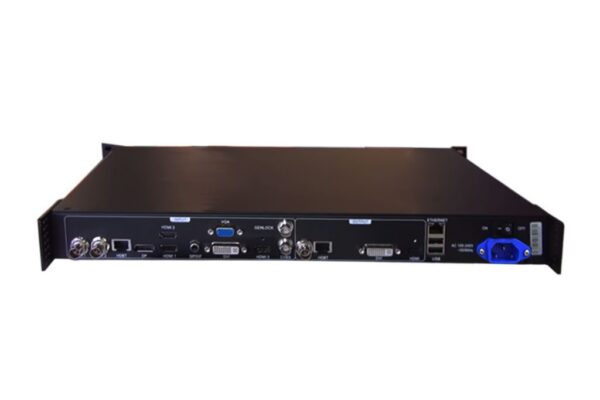

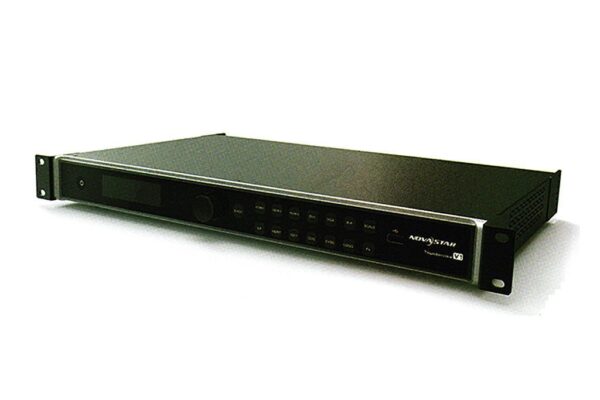

LED Video Wall Controller Appearance

LED Video Wall Controller Working Diagram
