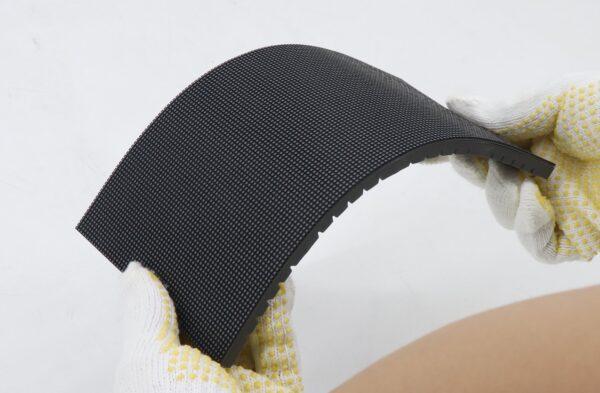

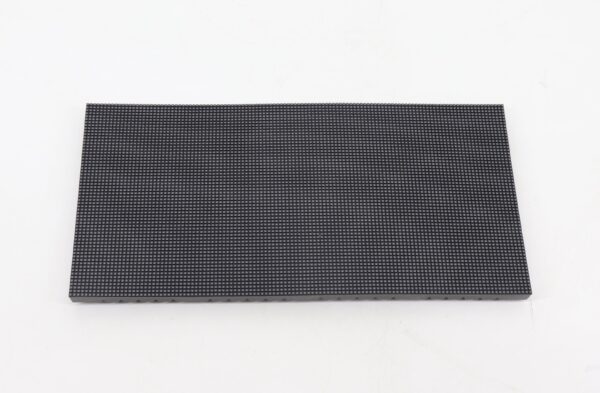

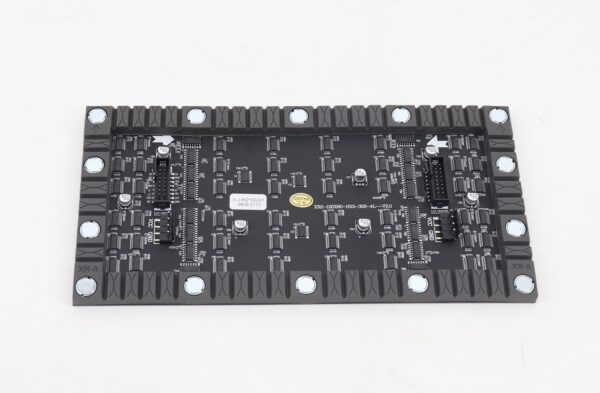

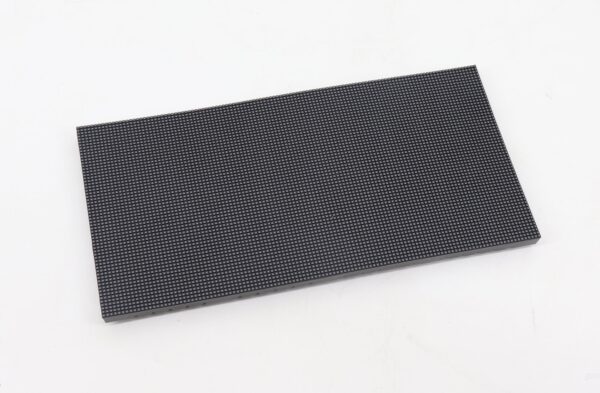

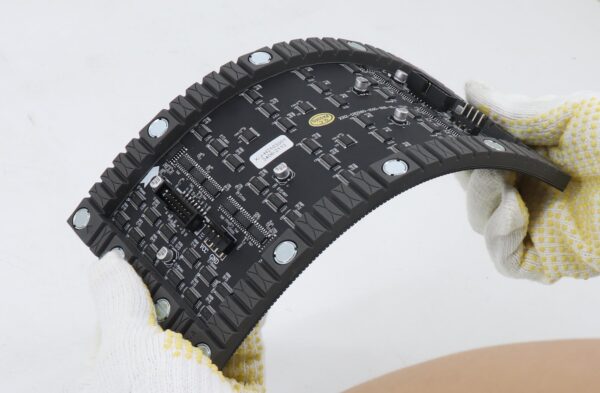

P2 Indoor Full Color Soft Flexible LED Screen Module 240x120mm

$19.50

Buy More Pay Less: 5% off (Over 3000USD) / 10% off (Over 6000USD)
    SKU: 61563 Category:

    Notice before order

    1) The Parts included are the LED module, the signal cable between the modules, and the power cable between the module and the power supply.

    2) Buy modules of the same batch: To avoid brightness and color differences on one screen, you must buy modules of the same batch. That is, you must buy the modules for one screen by one order from us.

    3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you use our LED modules to replace existing old LED modules.

    4) Tariff: Our price does not include any tariffs or duties at the destination. You should do import customs clearance and pay all tariffs or duties locally.



    P2 Indoor 240x120mm Full Color Soft Flexible LED Screen Module Parameter:

    LED Lamp Specification
    Color Package Intensity Viewing Angle Wavelength Testing Conditions
    Red SMD1515 38-50mcd 120°/120° 618-623nm 25℃.8mA
    Green 150-195mcd 120°/120° 519-524nm 25℃.5mA
    Blue 19-25mcd 120°/120° 467-471nm 25℃.3mA
    Module Parameter
    Pixel Pitch 2mm
    Pixel Configuration SMD1515
    Density 250.000pixels/
    Module Resolution 120pixel(L) * 60pixel(H)
    Module Dimension 240mm(L) *120mm(H) * 6.5mm(D)
    Driving Mode Constant current. 1/30 duty
    Electricity Parameter
    Optical Ratings
    Brightness ≥1.000 cd/
    Viewing Angle 120°(Horizontal); 120°(Vertical)
    Best Viewing Distance ≥2m
    Gray Grade 14 bits
    Display Color 4.4 trillion colors
    Brightness Adjustment 100 grades by software or automatically by sensor
    Max. Power Consumption 15 W
    Control System
    Frame Frequency ≥60Hz
    Refresh Frequency ≥1920Hz
    Input Signal Composite Video. S-video. DVI. HDMI. SDI. HD-SDI
    Control Distance 100m(Ethernet cable);
    20KM(optical fiber cable)
    Support VGA Mode 800*600. 1024*768. 1280*1024. 1600*1200
    Color Temperature 5000—9300 adjustable
    Brightness Correction Pixel by pixel. module by module. cabinet by cabinet
    Reliability
    Working Temperature -20+60 ºC
    Storage Temperature -30+70 ºC
    Working Humidity 10%90% RH
    Lifetime 100.000 hours
    MTBF 5000 hours
    Continuous Operating Time ≥72 hours
    Protection Grade IP31
    Out-of-Control Pixel Rate ≤0.01%
