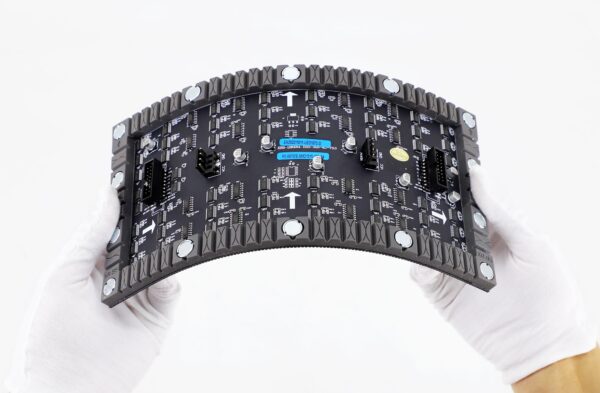

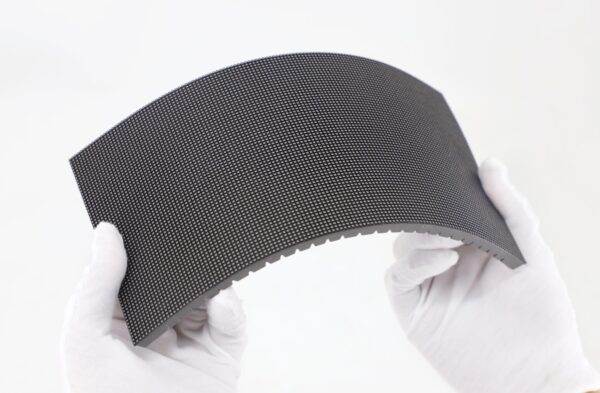

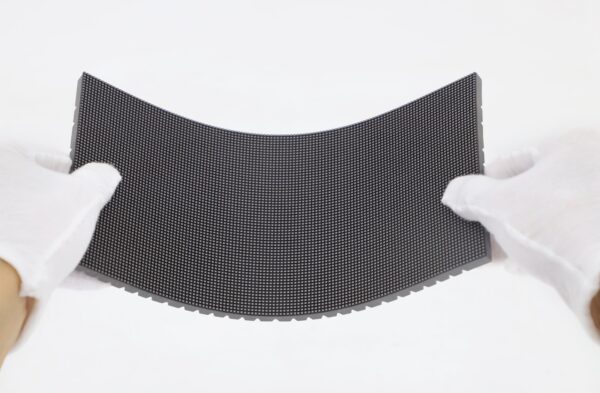

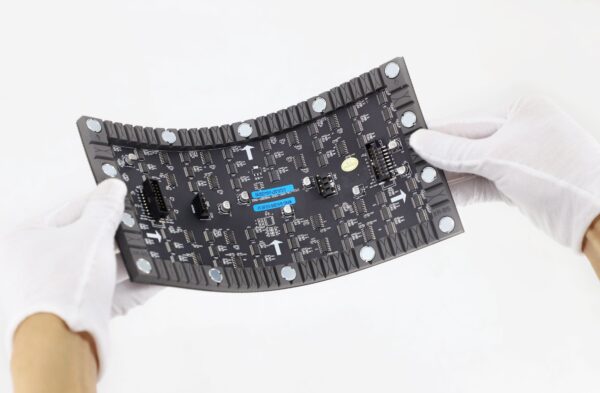

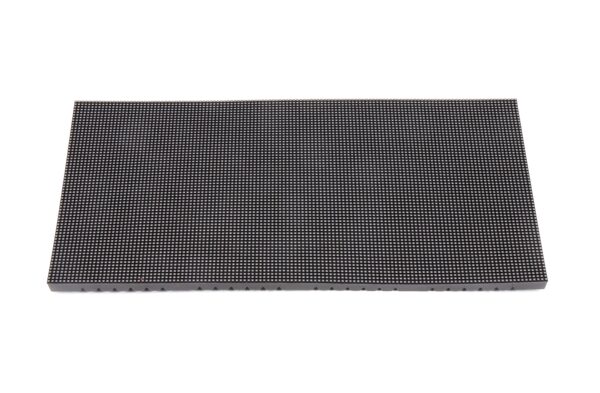

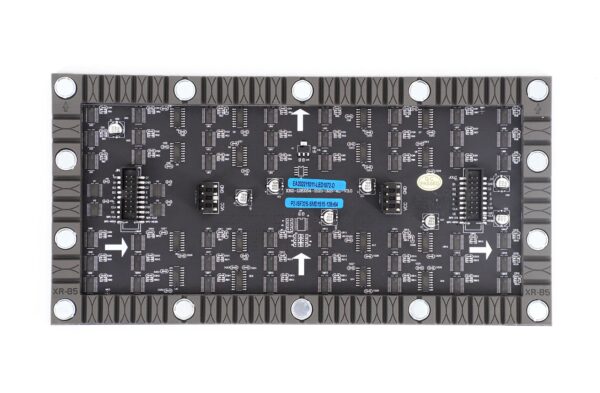

P2 Indoor LED Screen Soft Flexible LED Module 256x128mm


Buy More Pay Less: 5% off (Over 3000USD) / 10% off (Over 6000USD)
    SKU: 96761 Category:

    Notice before order

    1) The Parts included are the LED module, the signal cable between the modules, and the power cable between the module and the power supply.

    2) Buy modules of the same batch: To avoid brightness and color differences on one screen, you must buy modules of the same batch. That is, you must buy the modules for one screen in one order from us.

    3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you use our LED modules to replace existing old LED modules.

    4) Tariff: Our price does not include any tariffs or duties at the destination. You should do import customs clearance and pay all tariffs or duties locally.

    P2 Indoor 256x128mm LED Screen Soft Flexible LED Module Parameter:

    LED Lamp Specification
    Color Package Intensity Viewing Angle Wavelength Testing Conditions
    Red SMD1515 38-50mcd 120°/120° 618-623nm 25℃.8mA
    Green 150-195mcd 120°/120° 519-524nm 25℃.5mA
    Blue 19-25mcd 120°/120° 467-471nm 25℃.3mA
    Module Parameter
    Pixel Pitch 2mm
    Pixel Configuration SMD1515
    Density 250.000pixels/
    Module Resolution 128pixel(L) * 64pixel(H)
    Module Dimension 256mm(L) *128mm(H) * 8.5mm(D)
    Driving Mode Constant current. 1/32 duty
    Electricity Parameter
    Optical Ratings
    Brightness ≥1.000 cd/
    Viewing Angle 120°(Horizontal); 120°(Vertical)
    Best Viewing Distance ≥2m
    Gray Grade 14 bits
    Display Color 4.4 trillion colors
    Brightness Adjustment 100 grades by software or automatically by sensor
    Max. Power Consumption 20 W
    Control System
    Frame Frequency ≥60Hz
    Refresh Frequency ≥3.840Hz
    Input Signal Composite Video. S-video. DVI. HDMI. SDI. HD-SDI
    Control Distance 100M (Ethernet cable);
    20KM (Optical fiber cable)
    Support VGA Mode 800*600. 1024*768. 1280*1024. 1600*1200
    Color Temperature 5000—9300 adjustable
    Brightness Correction Pixel by pixel. module by module. cabinet by cabinet
    Working Temperature -20+60 ºC
    Storage Temperature -30+70 ºC
    Working Humidity 10%90% RH
    Lifetime 100.000 hours
    MTBF 5000 hours
    Continuous Operating Time ≥72 hours
    Protection Grade IP31
    Out-of-Control Pixel Rate ≤0.01%


    There are no reviews yet.

    Be the first to review “P2 Indoor LED Screen Soft Flexible LED Module 256x128mm”

    Your email address will not be published. Required fields are marked *

    1. Strong technical background. We are a professional LED screen manufacturer in Shenzhen, China. Our engineers are experienced in all kinds of LED controller card configuration and operation, producing and using LED screens.

    2 No MOQ request on all our products. You can buy even one sample to test our products before placing bulk orders. Many other suppliers have strict MOQ requests, which is inconvenient for buyers.

    3. Quick and safe payment. You can pay by credit card through Paypal, which offers complete buyer protection and avoids having to share any of your financial information.

    4. Good quality control. Our technicians inspect all the products earnestly before packaging.

    5. Long warranty period. All LED controller products from are under 2-year warranty. You can send the defective products back to us for repair during the warranty period, and we will repair them and send them back to you. The sender affords the shipping cost.

    6. Good support fr

    1. We ship most of the items listed at our online shop worldwide using the fastest shipping method with a tracking number via DHL, FedEx, or UPS Express, which takes around 4~8+ days to arrive. For Brazil, we only use EMS Express. The buyer must pay USD35 extra for the freight cost if shipping companies list the delivery address as a remote area.

    2. We can use the buyer's shipping account to send the goods. But the buyer shall make an appointment for the pickup by himself and send us the shipping label. Simply providing us with a shipping account will not be accepted. If you use a FedEx account, please ask them for a control or reference number.

    3. We will process your order within 1~3 working days after receipt of payment. We will re-inform you with another fastest delivery time when it happens to be " "Out of Stock" for the products on your order.

    4. We only ship to your order's confirmed address, so please confirm the delivery address on your payment account when you pay by PayPal or Credit Card. We will cancel the order and refund you if it does not match. It is OK if you pay by Wire Transfer or Western Union.

    5. The shipping company provides service transit time, excluding weekends and holidays. Transit times may vary, particularly during the holiday season.

    6. The buyer shall pay the customs duty on his side if it occurs. Please let us know if you want to lower the product value in the shipping invoice. If not, we will use the actual amount as paid. In most EU countries, this is not allowed. It has to be the real amount paid. A VAT number must be provided for customs clearance for all EU countries, including Switzerland, Norway, and Ireland.

    7. If required, please provide some necessary assistance for the shipping company concerning the customs clearance of the goods in your country.

    8. When they arrive, Please check the items in front of the DHL/FedEx courier. If the goods are damaged, please try to obtain local DHL's documentary evidence for the breakage, and in the meantime, email us photos of the packaging and products as soon as possible.

    9. Please contact us if you have not received your shipment within 15 days from the payment date. We will track the shipment and get back to you with a reply ASAP.

    10. The products purchased will not be accepted for return and warranty if the codes are ripped off. We do not accept refunds for custom-made products. Regularly stocked items may be returned for refund with a 20% restocking charge if the request is made within 3 days of receiving. Items must be in a good and resalable condition. Shipping costs back and forth and import taxes (if they are any) are all borne by the buyer.

    11. We provide six months to one year of quality warranty for most LED part products and 2 years for complete LED display products (Special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace them free of charge in our factory. Customers are responsible for back-and-forth shipping costs.
