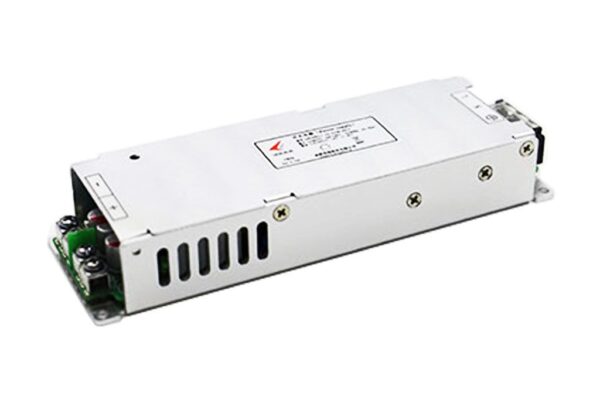

CZCL LED Displays Power Supply 300W PAS5-300-5 Series

Original price was: $80.00.Current price is: $30.00.

Buy More Pay Less: 5% off (Over 3000USD) / 10% off (Over 6000USD)
    SKU: 27363 Category: Tag:

    CL LED Displays Power Supply 300W PAS5-300-5 series Features:

    Input Parameter:

    • Input Voltage Range: 90~264Vac
    • Input Frequency Range: 47~63HZ(Typ 50/60)
    • Max AC Current: <2.5A, 100Vac, full load
    • Inrush current: ≤90A, 240V, Full load, 25℃
    • PF >0.95(AC100~240Vac, full load)
    • Leakage Current:I/P-O/P:≤0.25mA, I/P-F/G:≤3.5mA (Vin=250Vac 60HZ)
    • Standby watt<5W

    Output Parameter:

    • Dc Voltage Range: 4.6 V(5V/4.2V is available too)
    • Output voltage adjustment range: DC 4.5~4.7V
    • Output Current: : 90-175Vac, 20A( NO Auxiliary heat sink), 176-264Vac, 30A( NO Auxiliary heat sink), 90V-175Vac, 30A( installed an Auxiliary heat sink at the bottom of power supply, 300*200*3mm AL panel), 176-264Vac, 40A(installed an Auxiliary heat sink at the bottom of power supply, 300*200*3mm AL panel)
    • Max power:184W
    • Ripple & Noise: ≤150mVp-P(@220Vac, rated load,25℃)
    • Efficiency (Typ): ≥88%(Typ 90.5%) input Voltage: 230Vac, Rated load,25℃; ≥86%(Typ 88.5%,input voltage: 115Vac, Rated load,25℃
    • Output Risetime<50mS
    • Power on delay time<3S
    • Voltage Tolerance:±2%
    • Line Regulation: ±1%
    • Load Regulation:±2%


    • Over voltage protection: 5-5.5V
    • Over current protection: 50-70A
    • Over temperature protection: 65-85℃,  full load 25℃.
    • Short circuit protection,Hiccup mode, recovers automatically after fault condition is removed

    Safety Standards:

    • UL60950, IEC/EN60950, GB4943.1-2011


    • FCC Part 15 B,EN55022(CISSPR22)ClassB,EN61000-3-2,EN61000-3-2


    • EN61000-4-2,3,4,5,6,8,11,Surge Vcom: ±2kV   VDiff: ±4kV
    • Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S , I/P-FG:1.5KVAC/ 10mA/ 60S , O/P-F/G: 500Vdc/10mA/ 60S
    • Isolation Resistance:I/P-O/P:≥10MΩ@ 500Vdc,I/P-F/G:≥10MΩ@ 500Vdc,O/P-F/G:≥10MΩ@ 500Vdc
    • Leakage current: I/P-FG: ≤3.5mA , I/P-O/P:≤0.25mA (240Vac/60Hz)


    • Working Temperature:‘-20℃ ~ +70℃
    • Working Humidity:5%~90%RH
    • Storage temperature: -40℃~+80℃
    • Free air convection
    • Dimension (L*W*H): 180*55*30mm
    • Carton Dimension: 40*31*18.5 cm
    • Packing: 0.3KG/16.5KG/0.04CBM/CTN
    • MTBF:100K hours (MIL-HDBK-217F (25℃ )
    • 3 years warranty
