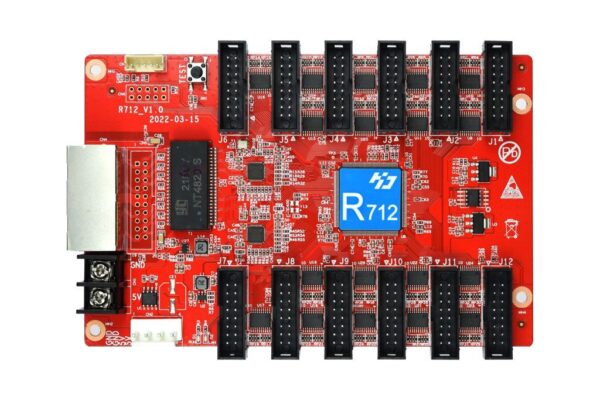

HUB75E Port Receiving Card HD-R712
R712 is an LED display receiving card that supports both synchronous and asynchronous control system, no need HUB adapter board. It is equipped with 12*HUB75E interface onboard, with a good stability, the maximum loading capacity is 131,072 pixels.
- 1. Integrated with 12 lines HUB75E port
- 2. Ultra loading capacity, conventional chip recommended 128*768 pixels, PWM chip recommended 256*512 pixels
- 3. Support data group exchange and data group offset setting
- 4. Support any scan module within static~1/128 scan
- 5. Support multi-card cascade, arbitrary order
- 6. Support data group exchange and data group offset setting

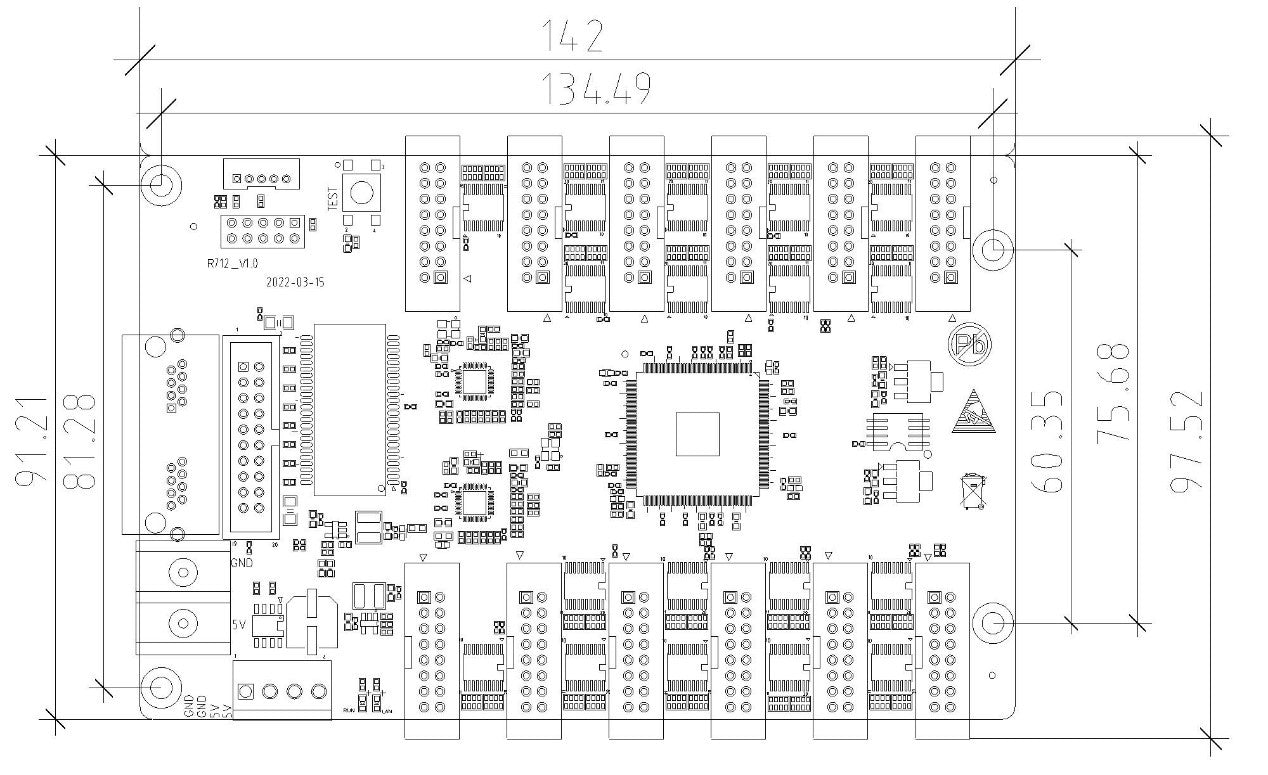

HUB75E Port Receiving Card HD-R712 Dimensions:

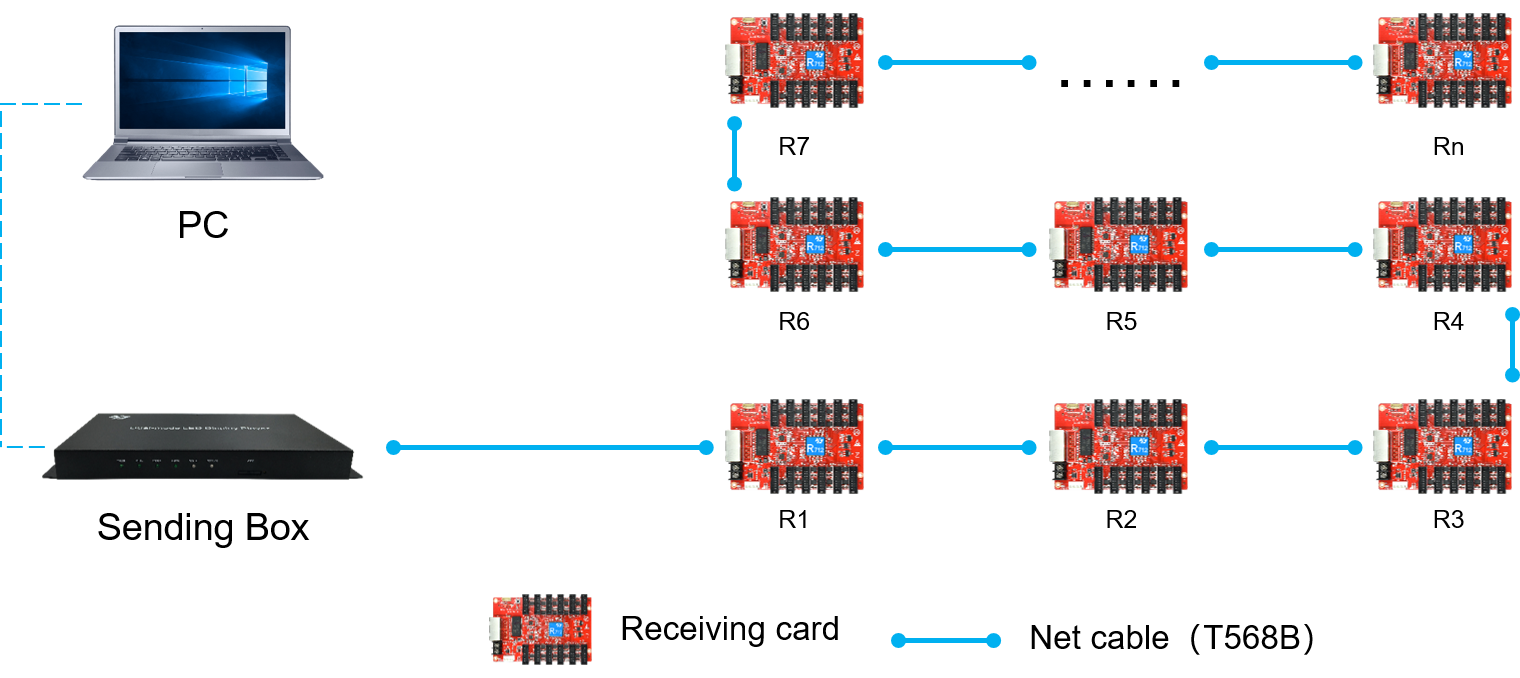

HUB75E Port Receiving Card HD-R712 Connection Method:
Features |
Parameters |
With sending card |
Dual-mode sending box, Asynchronous sending card, Synchronous sending card, Video processor of VP series. |
Module type |
Compatible with all common IC module, supported most PWM IC module. |
Scan mode |
Supports any scanning method from static to 1/128 scan |
Communication method |
Gigabit Ethernet |
Control range |
Maximum loading capacity: 262,144 pixels (512*512)
Recommended loading capacity: conventional chip 128*1024 pixels, PWM chip 256*1024 pixels
Note: The actual loading capacity is related to the number of HUB ports/module resolution.
|
Multi-card connection |
Receiving card can be put in any sequence |
Gray scale |
256~65536 |
Smart setting |
A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board |
Test functions |
Receiving card integrated screen test function, Test display brightness uniformity and display module flatness. |
Communication distance |
Super Cat5, Cat6 network cable within 80 meters |
Port |
DC 5V Power*2, Gbps Ethernet port*2, HUB75E*12 |
Input voltage |
4.0V-5.5V |
Power |
5W |

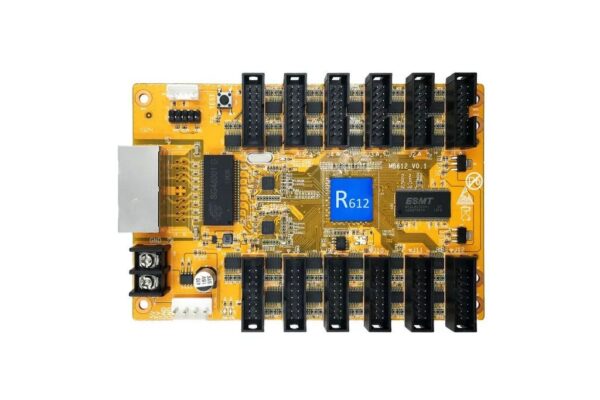

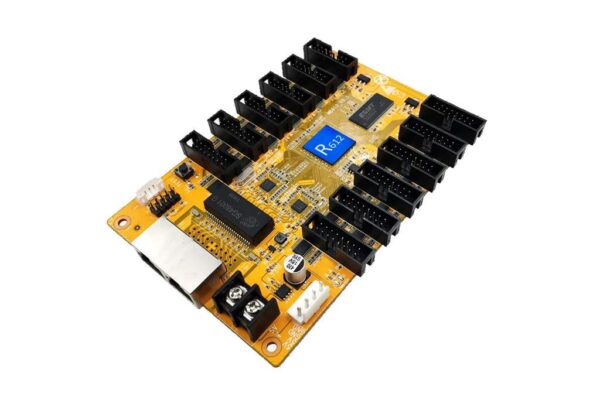

HUB75E Port Receiving Card HD-R612
The R612 is a dedicated receiving card for the module with LS9929/9919 chip.
It can also be used as a conventional receiving card with a limit control range
of 128*1024.

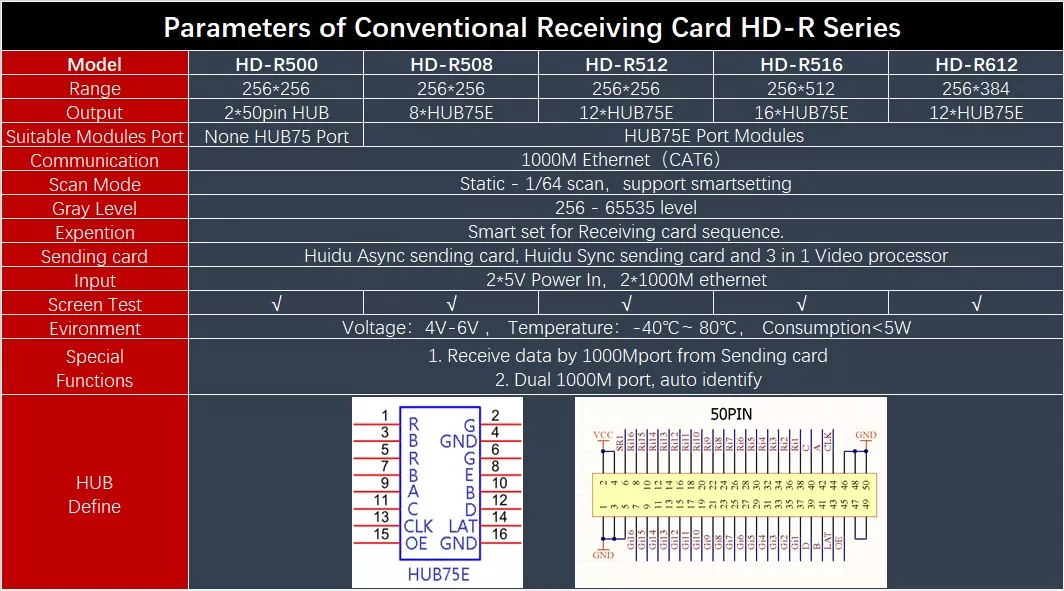

R500(2*HUB50pin), R508(8*HUB75), R512(12*HUB75), R516(16*HUB75), R612(12*HUB75)
Work with Huidu sending cards Ax,A60x, A30/A30+, Cx5, Cx0,A3, T901/T901B, VP210, VP410.
HUB75E Port Receiving Card HD-R516T
HD-R516T is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 16 lines HUB75E port.
- Integrated with 16 lines HUB75E port
- Support regular chips and PWM chips
- Support static module, any scan mode within 2~64 scan
- Support data group exchange and data group offset setting
- Smart settings, draw points, trace points, etc.
- Support multi-card cascade, arbitrary order
- Recommended loading range: 128*768/ 128*1024

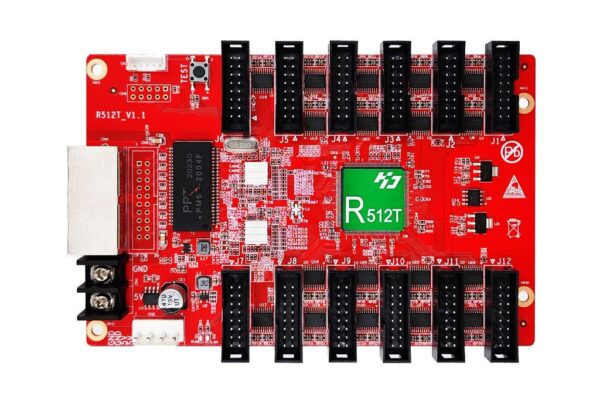

HUB75E Port Receiving Card HD-R512T
HD-R512T is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 12 lines HUB75E port.
- Integrated with 12 lines HUB75E port
- Support regular chips and PWM chips
- Support static module, any scan mode within 2~64 scan
- Support data group exchange and data group offset setting
- Smart settings, draw points, trace points, etc.
- Support multi-card cascade, arbitrary order
- Recommended loading range: 256*512/ 128*768

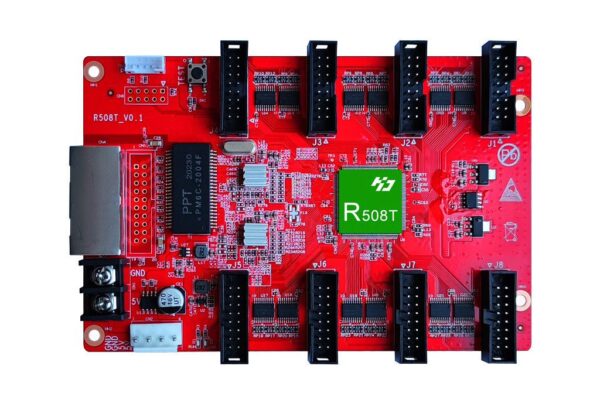

HUB75E Port Receiving Card HD-R508T
HD-R508T is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 8 lines HUB75E port.
- Integrated with 8 lines HUB75E port
- Support regular chips and PWM chips
- Support static module, any scan mode within 2~64 scan
- Support data group exchange and data group offset setting
- Smart settings, draw points, trace points, etc.
- Support multi-card cascade, arbitrary order
- Recommended loading range: 128*512
Further Information:
HD-R712/R612/R516T/R508T
Huidu HD-R712 LED Receiving Card Specification
Huidu HD-R612 LED Receiving Card Specification
Huidu HD-R516T LED Receiving Card Specification
Huidu HD-R512T LED Receiving Card Specification
Huidu HD-R508T LED Receiving Card Specification
