Linsn LED Receiving Card RV907A RV907H


Buy More Pay Less: 5% off (Over 3000USD) / 10% off (Over 6000USD)

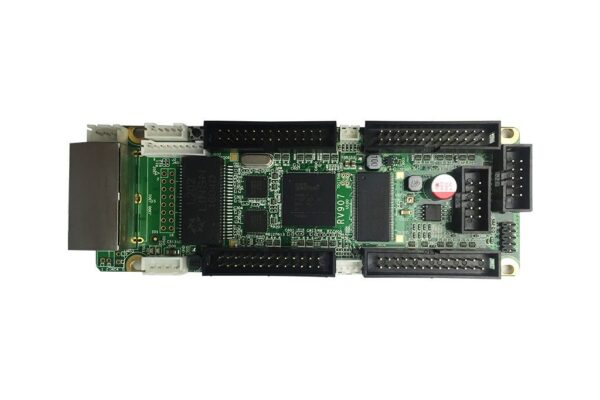

    Linsn RV907A LED Receiving Card

    Full color receiving card RV907/917/927/937 is designed specifically for rental LED screen. Not only be compatible with generation RV807/817/827/837 completely, but also meet the needs of led lighting and led curtain. RV907 has the following features:
    1) Single card can output 16 sets of RGBR’ data;
    2) Single card can output 20 sets of RGB data.
    3) Single card can output 24 sets of RGB data.
    4) Single card can output 32 sets of serial data.
    5) A single card supports a maximum of 1024 x 256 pixel points.
    6) Each port provides VCC pin, which can take power directly from the power supply of the unit board.
    7) support for temperature detection.
    8) support case door opening and closing detection.
    9) support two-way fan speed detection.
    10) support humidity detection (additional humidity module is required)
    11) support smoke detection (additional smoke sensor module is required)
    12) Support 3-channel voltage detection (1 channel for receiving card voltage, 2 channels for external voltage);
    13) support point-by-point brightness correction, single-card chromaticity space conversion
    14) support network line error test.
    15) support dual-receiver card hot backup.
    16) support most of the chips of high brush high gray
    17) Comply with EU RoHs standard.
    18) Comply with the EU CE-EMC Class B standard.

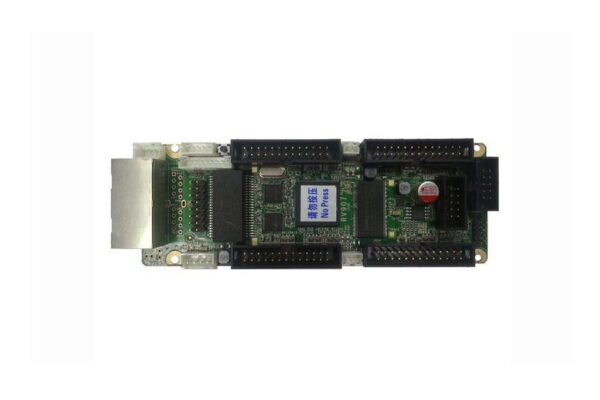

    Linsn RV907H LED Receiving Card

    Compatible with RV801, has all the features of RV801
    Small size (479mm X 1365mm), mounting holes are same with RV802
    Four output interfaces can directly drive module (save hub card)
    Each of the 4 interfaces has up to 6 groups parallel-data; total 24 groups of parallel data interface to achieve higher refresh rate
    Provide a 90 degree 26-Pin interface, convenient PCB docking design
    Provide 16 groups serial-data for led lighting and led curtain
    Each interface has VCC pin to get power supply for control system from led module. No need to get extra power supply for control system.
    support 12-bit HDMI colors input (required the 9th generation sending card)
    using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)
    Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction
    Supports single-card color space conversion

    Support configuration file readback

    Further Information:
    Linsn RV907H LED Receiver Card Specification

    Model Number

    RV907A, RV907H
