Linsn LED Receiving Card RV908H32 RV908M32


Buy More Pay Less: 5% off (Over 3000USD) / 10% off (Over 6000USD)

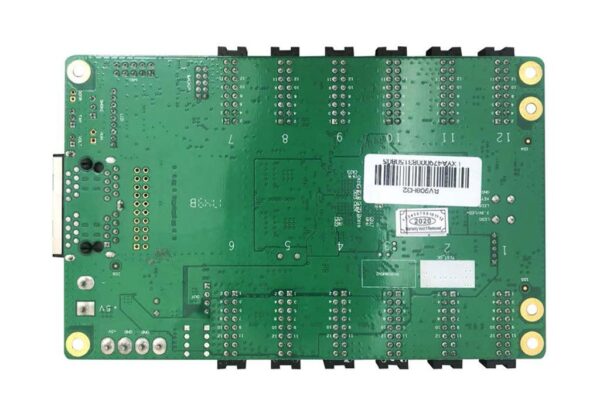

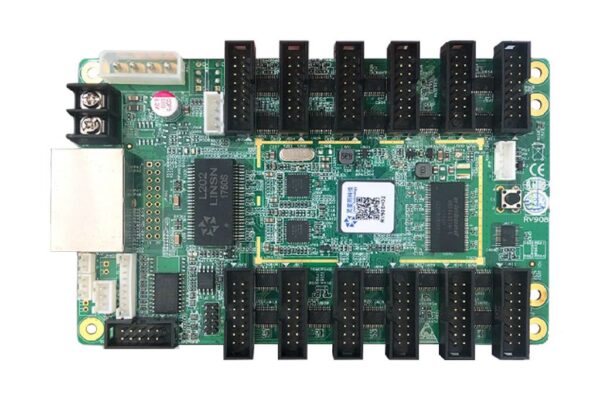

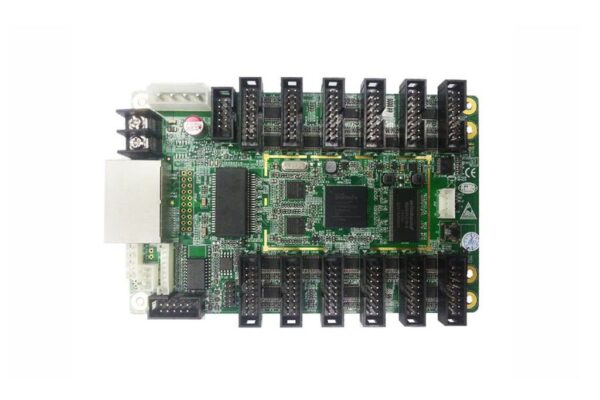

    Linsn RV908H32 LED Receiver Card

    Linsn RV908H32 LED receiving card for full color LED screen with 12 HUB75E interfaces, support various functions with high-quality display.

    • 1) 12 hub75E interface on board(supports up to 32 scan),no extra hub card needed;
    • 2) Single card can output 24 groups RGB data;
    • 3) Single card maximum support 512×512 pixels(Please note that there are recommended values depending on the design of LED screen);
    • 4) Support temperature detection;
    • 5) Support the cabinet-door monitoring (open/close);
    • 6) Two lines fan-speed monitoring;
    • 7) Humidity monitoring (humidity sensor sold separately);
    • 8) Smoke monitoring (smoke module sold separately);
    • 9) Three lines voltage monitoring: one for the system, two for cabinet power;
    • 10) Support pixel-by-pixel brightness calibration; single-card color space conversion;
    • 11) Support network cable BER test;
    • 12) Support hot backup with dual receiver cards for demanding performances screen;
    • 13) High refresh rate and high grey level with most of the driver ICs;
    • 14) In line with RoHS standards;
    • 15) In line with EU standards CE-EMC class B;

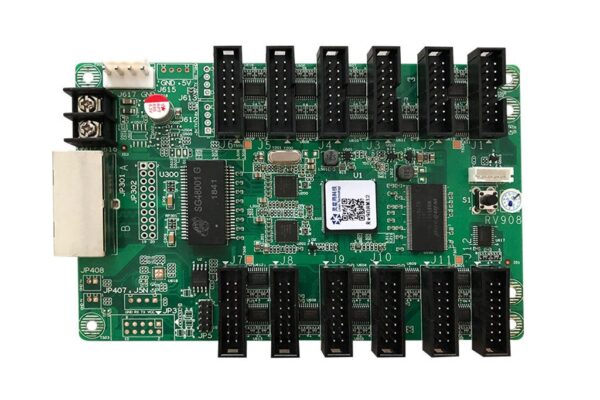

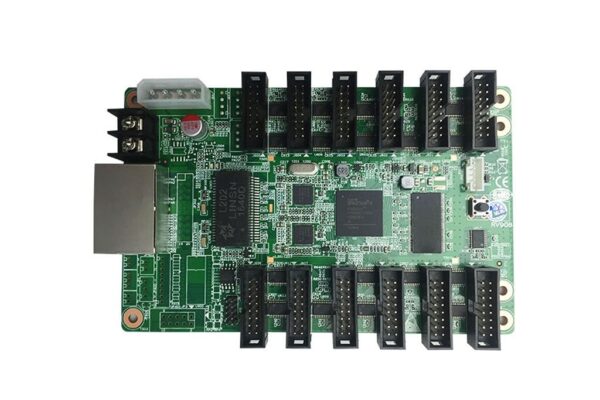

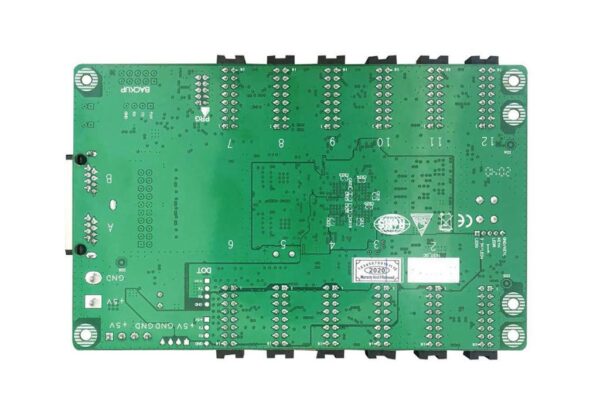

    Linsn RV908m32 has the Features compared with RV801

    linsn rv908M32 led receiving card Support 1/32 Scan For HD Indoor led display module. RV908M with HUB75 Interface is designed for standardized led display products, DO NOT NEED LED Hub Card,The functionality is fully compatible with the RV901 led receiving card, the same size, equial to the RV901 plus HUB75 hub card.
    The RV908M LED Receiving Card have 12 PCS HUB75E and Support 1/32 Scan way for the indoor led module such as p2.5mm,p3mm.

    • 12 hub75 interface on board(supports 32 scan mode),no extra hub card needed;
    • Supports 12-bit HDMI colors input (required the 9th generation sending card);
    • Using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue);
    • Single card maximum support 1024×768 pixels(Please note that there are recommended values depending on the design of LED screen);
    • Single card can output 24 groups RGB data;
    • Supports 138 decode, 595 serial decode and so on.
    • Supports pixel-by-pixel brightness and color calibration; single-card color space conversion;
    • High refresh rate and high grey level with most of the driver ICs;
    • Supports general driver ICs and most of the PWM driver ICs
    • Support hot backup with dual receiver cards for demanding performances screen;
    • Support network cable BER test;

    Further Information:
    Linsn RV908H32 LED Receiver Card Specification
    Linsn RV908M32 LED Receiver Card Specification

    Model Number

    RV908H32, RV908M32
