The LED-550D series is a video processor developed for LED large-screen display systems. It uses the industry’s top image processing chip, internal 12-bit digital processing, clearer images and richer colors. Advanced interlaced motion image adaptive processing technology eliminates video image motion tailing and aliasing. For ordinary PAL/NT SC video, the output country image is more clear and delicate. For HD 1080i signals, the output image is rich in detail and full of color. Image quality is at the leading level in the industry. Advanced image scaling technology, support custom output resolution, stand-alone output horizontal resolution up to 3840 pixels, vertical resolution up to 1920 pixels, refresh rate up to 120Hz, greatly improving the output signal bandwidth utilization; In addition, you can also use the traditional standard output resolution, and then scale the output circle image point by point according to the actual size of the LED display. Accurate dual-image input image capture for easy point-to-point display and material blending.
Intelligent large-size LED display seamless splicing technology, easy to achieve multi-send card image splicing, up to 24576×24576 pixel dot matrix LED display; unique synchronous follow-up technology to ensure high-speed movement of solid surface smooth, no misplacement, Trailing phenomenon. Complete video image input interface, including 2xVGA, 1xDP, 1xDVI (expandable to 2xDVI simultaneous input), 1xHDMI, 2xVideo (PAL/NTSC), 1xSDI (optional), support for full HD signal input, and a variety of audio, video Device interconnection. Supports seamless switching between different input sources and picture-in-picture functionality.
The machine is compatible with different send card structures, and the send card can be built into the machine. The pure hardware architecture of the whole machine is stable and reliable.
Functions and features:

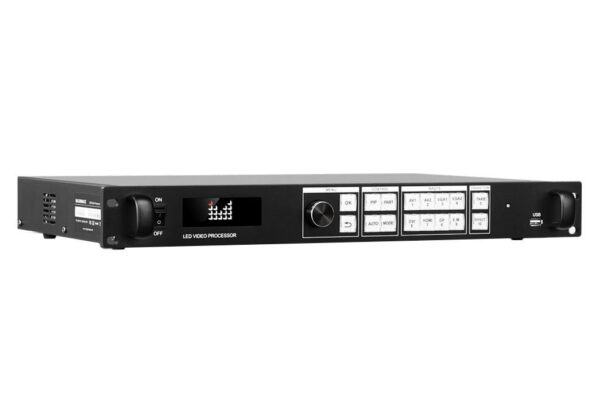

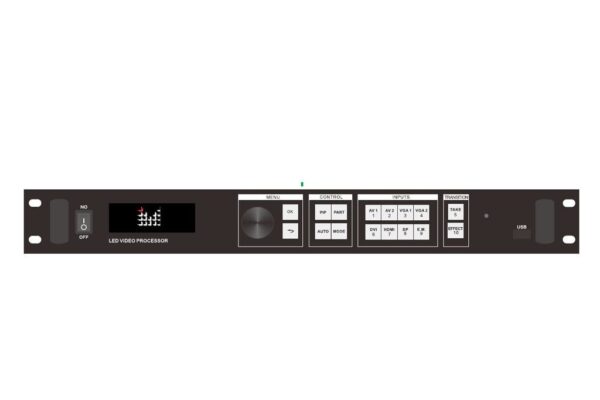

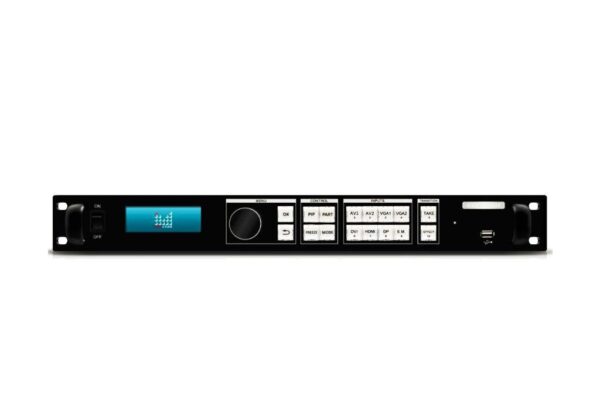

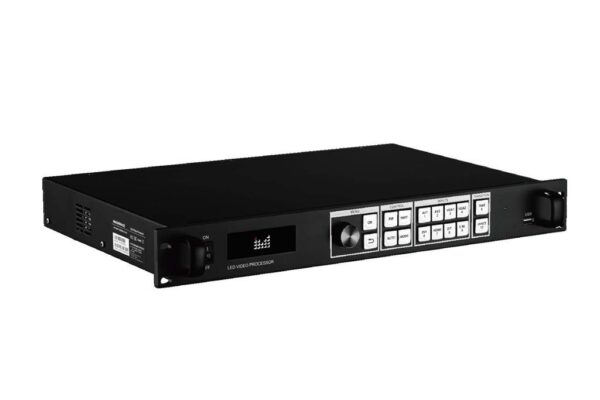

LED-550D Video Processor
- Customize Input/Output Resolution
Customize DVI input and output 2K*1K resolution by LED-550D,to complete 2K*1K pixel to pixel display easily.
- Seamless Splicing
LED-550D supports infinite DVI loop. Using one 550D uses as master control,the other units of 550D can complete any type of splicing.
- Fade in/Fade out
mig 550ds has 16 switching effects avoid the black screen when switching signals.
Technical Specification

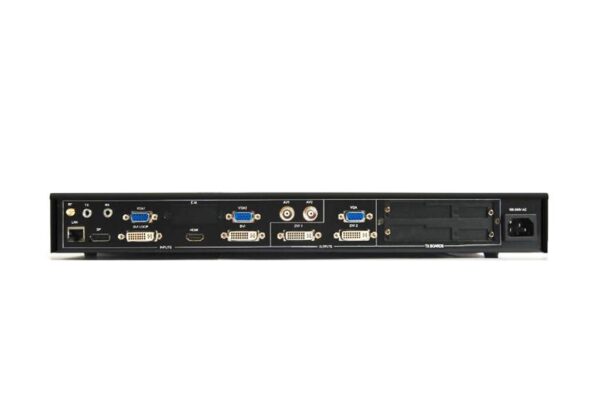

Input Indicators
| Port | Amount | Resolution Standard |
| AV | 2 | PAL、NTSC |
| VGA | 2+1（support 1extended） | VESA |
| DVI | 1+1（support 1extended） | VESA（support 1080i） |
| HDMI | 1 | EIA/CEA-861，HDMI-1.3/1.4 |
| DP | 1 | DisplayPort 1.1、1.2 |
| SDI* | 1（support 1extended） | 480i、576i、720p、1080i/p（3G SDI） |
Output Indicators
|
Port |
Amount |
Resolution |
| DVI Loop | 1 | Same as DVI input |
| VGA | 1 | 1024×768/60Hz/75Hz/85Hz/100Hz/120Hz DVI 2
1280×1024/60Hz 1440×900/60Hz 1680×1050/60Hz 1600×1200/60Hz 1600×1200/60Hz – Reduced 1920×1080/60Hz/50Hz 2 560×816/60Hz 2048×640/60Hz 1920×1200/60Hz 2304×1152/60Hz 2048×1152/60Hz 1024×1280/60Hz 1536×1536/60Hz Customized output resolution（bandwidth optimization）： maximum width is 3840 and maximum height is 1920 |
| DVI | 2 | |
| SDI Input & Loop | 1 | 480i、576i、720p、1080i/p（3G SDI） |
Unit Specification
| Power Supply | 100～240VAC，50/60Hz |
| Consumption | 20W |
| Operating Temperature | 0~45℃ |
| Product Dimension | 484.0 X 288.0 X 54.5mm |
| Packing Dimension | 555.0 X 395.0 X 125.0mm |
| Net Weight | 2.6Kg |
| Gross Weight | 4.1Kg |
LED-550D Series
| Name | Model | Description |
| Standard Unit | LED-550D | Standard Unit |
| +DVI Extended Module | LED-550DD | The extended input port is DVI |
| +SDI Extended Module | LED-550DS | The extended input port is SDI+Loop |
| +VGA Extended Module | LED-550DV | The extended input port is VGA |
| Audio Output Port | Customized | Audio Output Port |
| RF Module | Customized | RF Module |
Accessories
Instruction X 1 Cascade Cable X 1 Power Cable X 1 Copper Bar X 4
AV Cable X 2 Screw X 4 DVI Cable X 1 Certification X1 Disk X 1 USB Cable X1
Further Information:
LED-550D
Magnimage LED-550D LED Video Controller Specification
Magnimage LED-550D LED Video Controller User Manual
