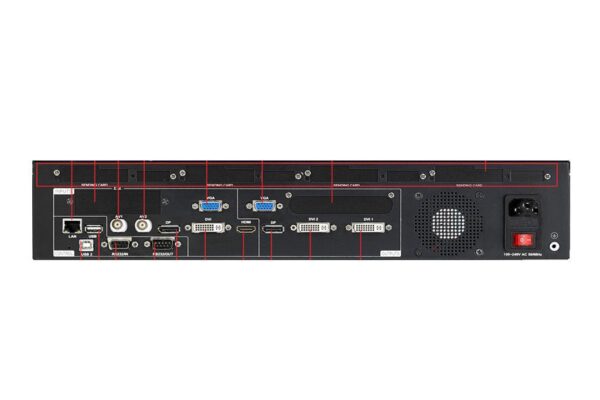

LED-570E LED Video Processor
- Single Machine Supports Pixel to Pixel Splicing within 4K
Two DVI output ports,split function,customized output resolution, this is how LED-570E supports any size of pixel to pixel splicing within 4K.

- Multi-machine 4K*2K Pixel to Pixel Splicing
Using one LED-570E as a main control, another 2 pcs of LED-570E cascading through DP loop,this is a perfect solution for 4K*2K pixel to pixel display.
It has a seamless switching from preview to program without black.
Adding an extended monitor module,LED-570E will transmit signal to the monitor display and realize the real time monitoring.
Technical Specification
Input Indicators
|
Port
|
Amount
|
Resolution Standard
|
| AV |
2 |
PAL、NTSC、SECAM |
| VGA |
1 |
VESA |
| DVI |
1 |
VESA |
| HDMI |
1 |
EIA/CEA-861,HDMI-1.3/1.4 |
| DP |
1 |
DisplayPort 1.1、1.2 |
| SDI* |
1 |
480i/60Hz 、576i/50Hz 、720p/60HZ 、1080i/50Hz、1080i/60Hz、1080p/60Hz(3G SDI) |
Output Indicators
| Port |
Amount |
Resolution Standard |
| *VGA |
1 |
2K×1K :
1024×768/60Hz 1280×1024/60Hz
1280×720/50Hz/60Hz 1440×900/60Hz
1600×1200/60Hz 1600×1200/60Hz-Reduced
1680×1050/60Hz 1920×1080/60Hz
1920×1200/60Hz 2048×1152/60Hz
1536×1536/60Hz
2K×2K :
2560×1024/60Hz 2560×1440/60Hz
3840×1080/60Hz 1920×1080/100Hz
1920×1080/50Hz 2560×816/60Hz
2304×1152/60Hz 1024×1280/60Hz
2560×1600/60Hz 1080×3840/60Hz
1920×1080/120Hz
Customized output resolution(bandwidth optimization): maximum width is 3840 and maximum height is 3840 |
| DVI |
2 |
| DP |
1 |
| SDI* |
1 |
480i/59.94Hz 480i/60Hz
576i/50Hz 720p/50Hz 720p/60Hz
1080i/50Hz 1080i/59.94Hz 1080i/60Hz
1080p/23.94Hz 1080p/24Hz
1080p/25Hz 1080p/29.97Hz
1080p/30Hz 1080p/50Hz
1080p/59.94Hz 1080p/60Hz |
*VGA is 2K x 1K standard resolution, SDI is a expansion port
Unit Specification
| Power Supply |
100~240VAC,50/60Hz |
| Consumption |
40W |
| Operating Temperature |
0~45℃ |
| Product Dimension |
482.6 X 304.0 X 88.0mm |
| Net Weight |
4.5Kg |
