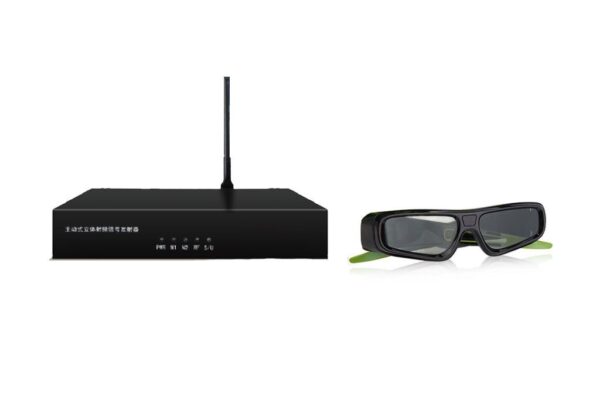

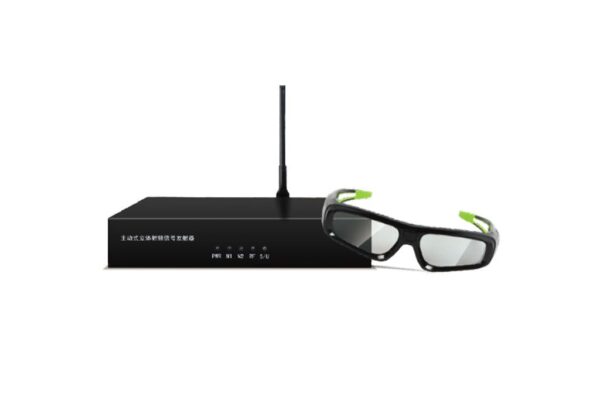

MIG-A20 3D RF Kit includes MIG-A10-G 3D RF Glasses and MIG-AlO-T 3D RF Transmitter.
MIG-A10-G 3D RF glasses: Support 3D video processors such as LED-789, LED-789H Pro, etc., which can be applied in single-pass, dual-pass and multi-channel mode scenes, using the latest technology lenses, ultra-high response time and wide viewing angle, supporting MIG-AlO-T dedicated emitter, picture color and contrast closer to the original quality, brightness increased by 15%.
MIG-A20-T 3D RF transmitter: This set of transmitters is the 3D multi-channel fusion wireless RF version, using wireless ISM band transmission of 3D signals, with low radiation, signal transmission distance, two-way communication without dead ends. It adopts intelligent algorithm, which can support 1-1024 pairs of glasses at the same time, adopts dual MCU cooperative work, optical isolation technology, more stable signal, stronger anti-interference ability, 24-hour uninterrupted work, and seamlessly supports the 3D video processor such as LED-789H, LED-789H Pro. The transmitting signal is strong and does not interfere with the original remote control signal of projector and fuser, with signal calibration, switchable left and right eye, automatic memory and other functions, and supports power-down protection.
The MIG-A20 3D RF kit works with the Magnimage 3D video server, 3D video processor, transmitter and receiver cards to form the Magnimage 3D stereo video system solution, which is the perfect solution for large stage performances, business meetings and engineering demonstrations.
MIG-A10-G Active 3D Stereo RF Glasses
Product size
Weight:46g
Folding size of glasses: 17*4.6*4.2(cm)
Overall weight with accessories:153g
Box size:18*6.5*4.8(cm)
optical parameter
Contrast ratio:1000:1
LCD refresh frequency:96-240Hz
Absolute transmittance: 38%
Response time:≦2msec
Viewing angle: 80°
Electrical parameters
Transmission distance:500-2000㎡(with MIG-A20)
Battery: Rechargeable lithium battery
Operating frequency:2.4GHz-2.5GHz
Rated working current:1.5mA
Continuous working hours: 40hr
Rated standby time: 6 months
working environment
Working temperature: 0℃-50℃
Storage temperature: -10℃-60℃
Working humidity: 20%-80%RH
Atmospheric pressure: 86kPa-106kPa
MIG-A20-T Active 3D Stereo RF Transmitter
Product size
Transmitter size: 15.2*3.6*.2.1 cm
Box size: 38*23.8*7 cm
Total weight: 1.17kg
Operating parameters
Operating frequency: 2.4Ghz-2.5Ghz
Launch angle: 360°
Launch distance：≧100m
Coverage area of single transmitter: 800-2000m2
Refresh rate: 96-240Hz
Electrical parameters
Working voltage (DC): 5V
Operating current (DC): 2A(MAX)
Number of transmitters supported: 1 (or air link extension)
Peak power: 200mW
Interface: VESA RJ45 DB9-15
Signal transmission line length: BNC
working environment
Working temperature: 0℃-50℃
Storage temperature: -10℃-60℃
Working humidity: 20%-80%RH
Atmospheric pressure: 86kPa-106kPa
