Novastar Mee210 Conference Board
The Mee200 is a conference board which is designed for LED displays in conference room and integrates the control and sending functions. It features powerful interaction and playback capabilities and high operating speed. Based on the highly customized Android desktop system, the Mee200 accepts any applications and APK software.
With high compatibility and reliability, the Mee200 can fix a variety of use and viewing problems of the traditional display devices in conference room, such as small display size, low brightness and unsatisfactory image quality. It can also be used as a separate controller. It can be mainly used in various business conference scenarios in design, medical, education and other industries.
- 3×HDMI 1.3 inputs, resolutions of each up to 1920×1080@60Hz
- 8×1G Ethernet outputs
- 5×USB 2.0 and 1× USB3.0 ports for multimedia playback and function extension
- 3.5-mm internal and external audio connectors
- Highly customized Android desktop system
- Local and online playback of high-definition videos, including 4K HDR videos
- Dual wireless network card to allow for Wi-Fi and wireless hotspot connections at the same time
- Bluetooth 4.0 support, compatible with Bluetooth mouse, keyboard, speaker and other common peripherals
- Bluetooth remote to allow for omnidirectional remote control
- 4×relays for power management of the LED display
- Wireless screen mirroring from Windows, Mac, iPhone/iPad and Android
- 1×reserved OPS control port for OPS computer connection to control its power on/off
- OSD menu
- Compatible with the peripherals commonly used in conference room, such as camera, speaker and laser pointer
- Support for 18Bit+ high grayscale at low brightness condition when working with the A8s or A10s Plus receiving
- card to effectively fix the grayscale loss problem of LED display due to low brightness, allowing for a smooth image
- Support for precise grayscale technology when working with the A8s or A10s Plus receiving card to effectively fix the display problems caused by imprecise low grayscale performance of LED display, such as grayscale spikes, color cast at low grayscale condition, as well as mottling and color blocks after calibration, allowing for
- more precise grayscale performance
- Support for color management when working with the A8s or A10s Plus receiving card to effectively avoid color distortion
- Support for HDR function when working with the A8s or A10s Plus receiving card to greatly enhance the image quality, presenting more vivid and realistic images with clearer details.
- Support for pixel level brightness and chroma calibration when working with NovaLCT and NovaCLB

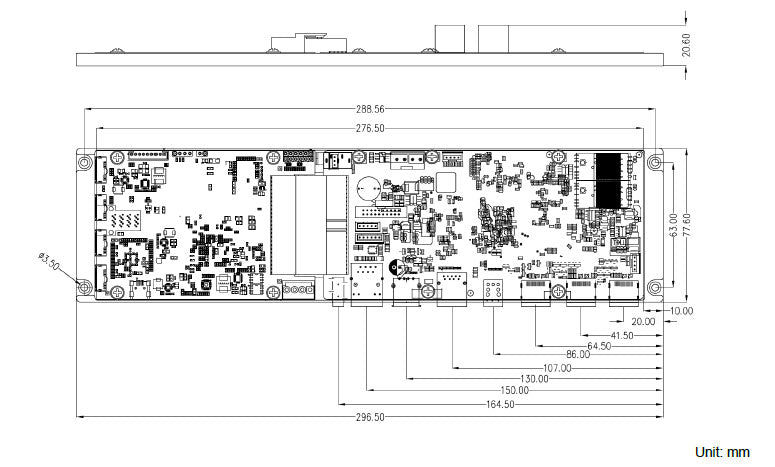

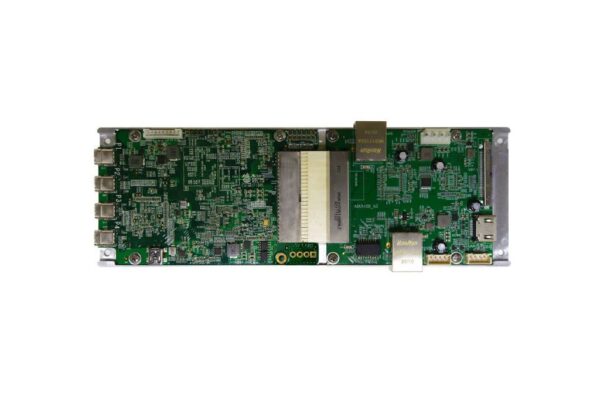

Novastar Mee210 Conference Board Appearance

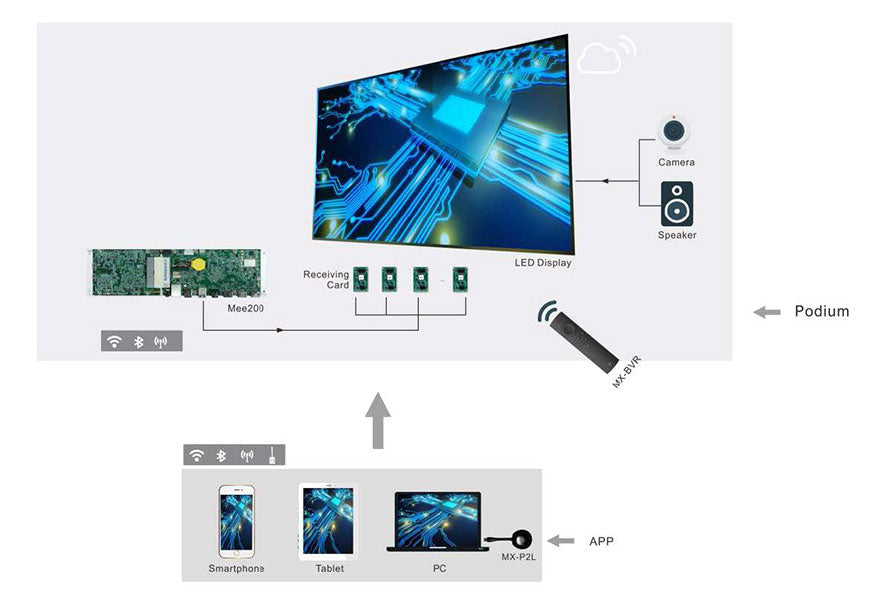

Novastar Mee210 Conference Board Working Diagram
Specifications
Maximum Loading Capacity:1920×1080@60Hz
Hardware Configuration
CPU:64-bit quad-core 1.7 GHz processor
RAM:DDR4-4GB
GPU:Mail T820
ROM:8GB eMMC5.1 (Standard)
Electrical Specifications
Input voltage:DC 4.9V∼5.1V
Rated current:5A
Rated power consumption:25W
Operating Environment
Temperature:-20°C to +60°C (An aluminum cooling plate must be installed on the back
of the Mee200 for long-term operation in high temperature.)
Humidity:10% RH to 75% RH, non-condensing
Storage Environment
Temperature:-25°C to +125°C
Physical Specifications
Dimensions:296.5 mm × 77.6 mm × 20.6 mm
Net weight:0.34 kg
Further Information:
Mee210
Novastar Mee210 Conference Board Specification
