$21.50
Notice before order
1) The Parts included are the LED module, the signal cable between the modules, and the power cable between the module and the power supply.
2) Buy modules of the same batch: To avoid brightness and color differences on one screen, you must buy modules of the same batch. That is, you must buy the modules for one screen in one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you use our LED modules to replace existing old LED modules.
4) Tariff: Our price does not include any tariffs or duties at the destination. You should do import customs clearance and pay all tariffs or duties locally.

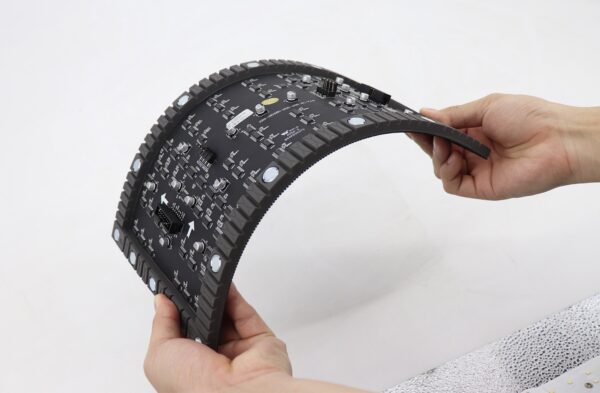

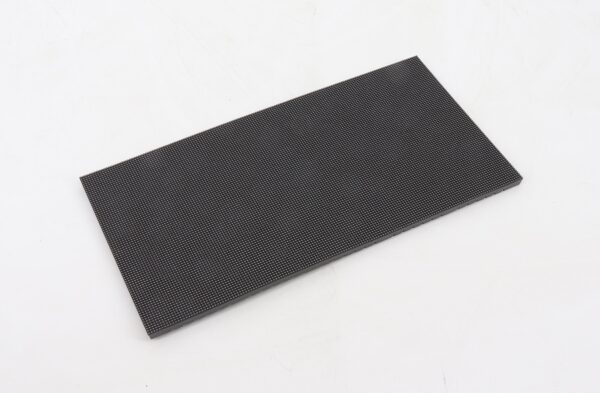

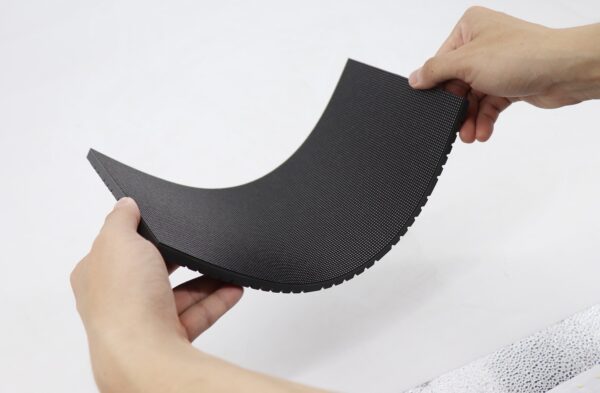

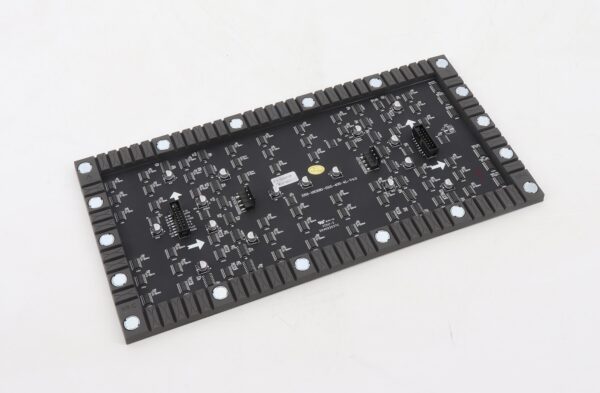

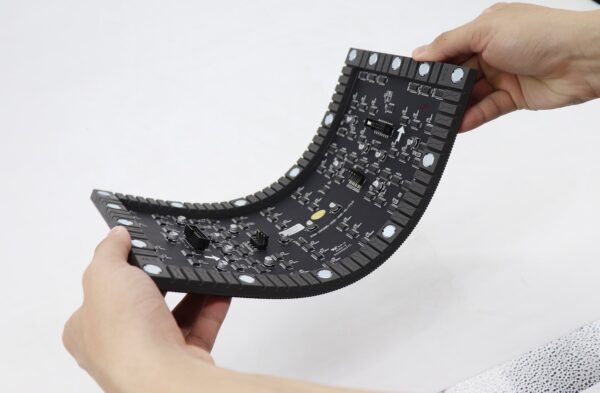

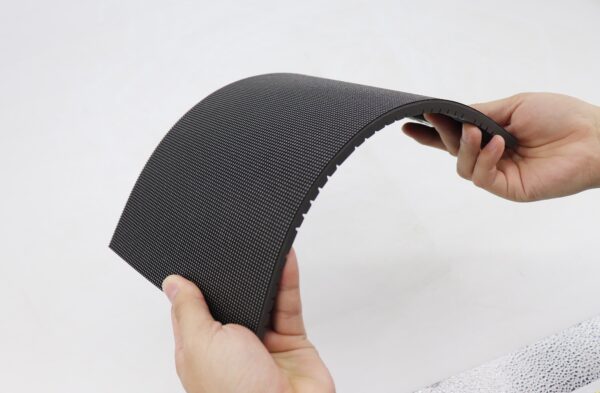

P2 SMD1515 Indoor HD 320x160mm Soft Flexible LED Module Parameter:
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Red | SMD1515 | 38-50mcd | 120° | 618-623nm | 25℃.8mA | |
| Green | 150-195mcd | 120° | 519-523nm | 25℃.5mA | ||
| Blue | 19-25mcd | 120° | 467-471nm | 25℃.3mA | ||
| Module Parameter | ||||||
| Pixel Pitch | 2mm | |||||
| Pixel Configuration | SMD1515 | |||||
| Density | 250.000 pixels/㎡ | |||||
| Module Resolution | 160pixel(L) * 80pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 8.5mm(D) | |||||
| Driving Mode | Constant current. 1/40 duty | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥800 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥2m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 21W | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥3.840Hz | |||||
| Input Signal | Composite Video. S-video. DVI. HDMI. SDI. HD-SDI | |||||
| Control Distance | 100M (Ethernet cable); | |||||
| 20KM (Optical fiber cable) | ||||||
| Support VGA Mode | 800*600. 1024*768. 1280*1024. 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel. module by module. cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100.000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
