Notice before order
1) The Parts included are the LED module, the signal cable between the modules, and the power cable between the module and the power supply.
2) Buy modules of the same batch: To avoid brightness and color differences on one screen, you must buy modules of the same batch. You must buy the modules for one screen in one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you use our LED modules to replace existing ones.
4) Tariff: Our price does not include any tariffs or duties at the destination. You should do import customs clearance and pay all tariffs or duties locally.

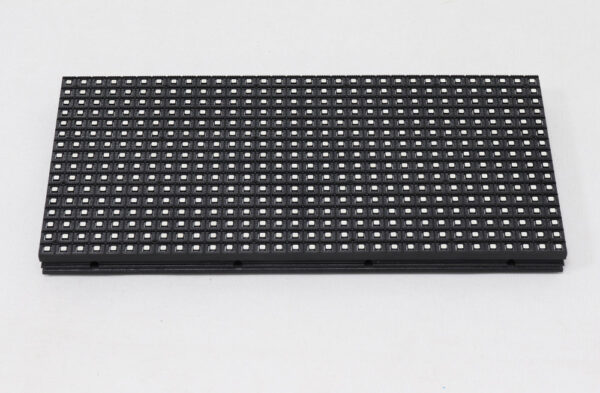

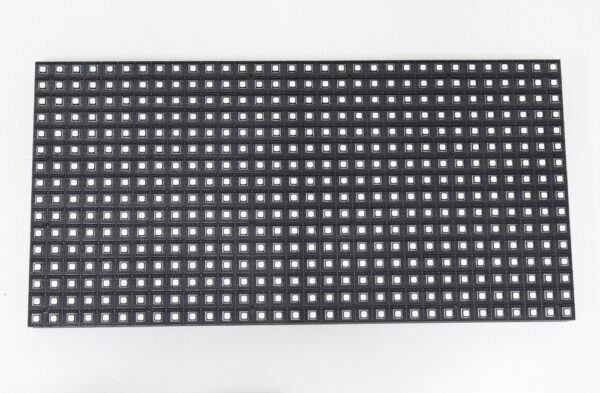

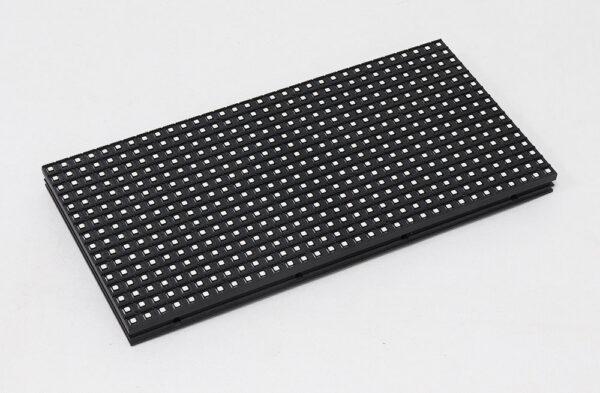

1) Small pixel pitch 8mm for SMD outdoor LED display. This is a good solution for outdoor rental LED displays and outdoor fixed-installation LED displays.
2) Kinglight SMD3535 LED lamps. High reliability.
3) High-cost-effective LED module for outdoor LED display.

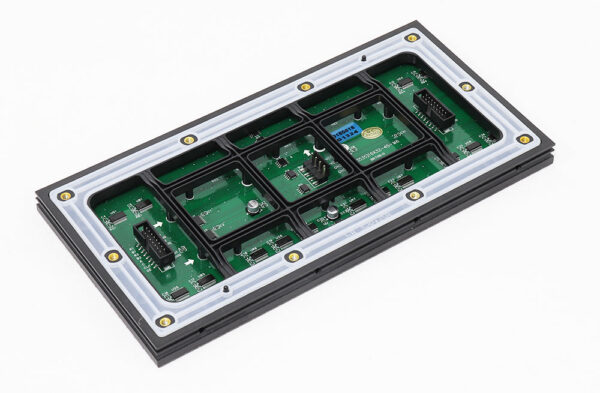

4) Reasonable PCB design with good heat radiation and achieve a long life span.
5) Good constant current driver IC. Ensuring the consistency and stability of the whole screen.
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing angle |
Wavelength |
Testing condition |
|
|
Red |
SMD3535 |
800-1100mcd |
120 |
620-625nm |
25℃.20mA |
|
|
Green |
1600-2250mcd |
120 |
515-530nm |
25℃.20mA |
||
|
Blue |
350-500mcd |
120 |
465-475nm |
25℃.20mA |
||
|
Module Parameter |
||||||
|
Pixel Pitch |
8mm |
|||||
|
Pixel configuration |
SMD3535 |
|||||
|
Density |
15.625 pixels/㎡(real pixel) |
|||||
|
Module Resolution |
32pixel(L) * 16pixel(H) |
|||||
|
Module Dimension |
256mm(L) * 128mm(H) * 25mm(D) |
|||||
|
Driving Mode |
Constant current. 1/4 duty |
|||||
|
Module Mask |
Pure black mask—high contrast screen |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Brightness |
≥6.500 cd/㎡ |
|||||
|
Viewing Angle |
120°(Horizontal); 120°(Vertical) |
|||||
|
Best Viewing Distance |
≥8m |
|||||
|
Gray Grade |
16.384 levels for each color |
|||||
|
Display Color |
4.4 Trillion Colors |
|||||
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|||||
|
Max. Power Consumption |
25 W |
|||||
|
Control System |
||||||
|
Correction Scale Level |
12bits |
|||||
|
Frame Frequency |
≥60Hz |
|||||
|
Screen Refresh Frequency |
≥1.920Hz |
|||||
|
Gamma Correction |
-5.0～5.0 |
|||||
|
Input Signal |
Composite Video. S-video. DVI. HDMI. SDI. HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600. 1024*768. 1280*1024. 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel. Module by module. cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Working Temperature |
-20～+60 ºC |
|||||
|
Stored Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100.000 hours |
|||||
|
MTBF |
5000 hours |
|||||
|
Continuous Working Time |
≥72 hours |
|||||
|
Protection Grade |
IP65 |
|||||
|
Out of Control Pixel Rate |
≤0.01% |
|||||
