VDWall LED Display Controller VF2000 LED Video Processor


Over 2500 USD
Over 5000 USD
Guaranteed Safe Checkout
SKU: 49659 Category: Tag:

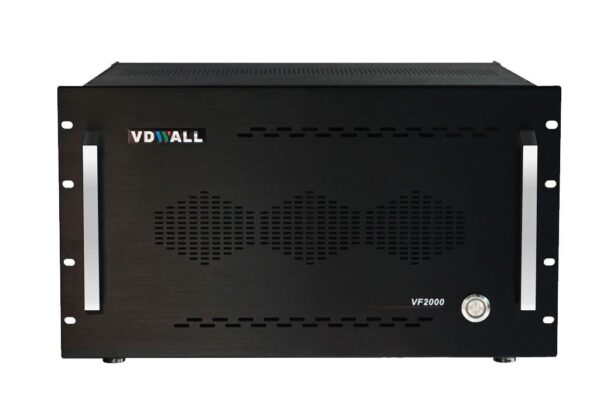

VF2000 Multi-window Video Wall Processor
Up to 64 HD+SD signal inputs
60Hz refresh rate in the whole processing
Up to 32 display windows
*This price is the full configuration price.You can configure the number of outputs and inputs, please contact us for a quote.

1. Faroudja® Real Color® Picture processing,10+ Bit Faroudja® DCDI Cinema Processing and Faroudja® TureLife™ Video image enhancement
2.Advanced interlaced motion image adaptive processing technology to eliminate video image movement tail and saw-tooth phenomenon
3.Plug-in design for more flexible and convenient hardware maintenance
4.Redundant power supply design, equipment operation more stable and reliable
5.CrossPoint fully cross-high bandwidth video switching technology
6.Support mixed video seamless switching technology, no black screen between image signals switching
7.Whole procedure 60Hz RGB format signal processing and transmission,without reducing image quality and frame rate,perfect image and color reproduction
8.Support functions like input text overlay,input signal remark and etc
9.Support signal sources preview function, support real-time preview of all input signal sources
10.AIAO(Any In Any Out)function,any input crop and any output
11.Using advanced sync-frame splicing technology, high-speed images are completely synchronized without tearing image
12.Support multiple SD、HD、analog and digital input
13.16×CVBS 16×VGA
14.The quantity of supported input signal is up to 64, the supported function for any input signal includes opening window , roam , scale , free overlay, etc. it can process 32 signals at the same time, and it can display 32 different images at most
15.Maximally 16 preset display modes,switch and select seamlessly
16.Standard VESA DVI output, compatible with mainstream full-color control systems
17.16 DVI outputs, maximum output resolution 1920*1080_60Hz
18.single unit splicing output width up to 20480 pixels or output height up to 9600 pixels
19.Any input signals seamless switching and Fade-in/Fade-out switching
20.Support RS232 serial port, USB and TCP/IP control, open control protocol, easy integration with various control systems
21.PC software is easy to use, any open window , roam, overlay
22.Backup or Restore the device settings and adjustment data by a PC
23.24/7 Application, stable and reliable

Rental Performance,special-shaped or ultra-large LED display,mixed displays(with different poxel potch),Stage Entertainment & Theater,High-end meeting & Exhibitons etc.

Connection Diagram
VF2000 LED Video Processor

Specification of Inputs
Quantity/Type 1×CVBS



Composite Video Input SYS PAL / NTSC
Composite Video Amplitude Impedance 1V (p_p) / 75Ω
VGA Format PC (VESA Standard) ≤2048×1152_60Hz
VGA Amplitude the impedance R、G、B = 0.7 V(p_p) / 75Ω
DVI Format PC (VESA Standard) ≤2304×1152_60Hz
HDMI Format PC (VESA Standard) ≤1920×1080_60Hz
HDMI1.3 (CEA-861) ≤1080p_60Hz
Input Interface CVBS: BNC

VGA: 15pin D_Sub (Female)

DVI: 24+1 DVI_D(Female)

HDMI: Type-A HDMI port

Specification of Outputs
Quantity / Type 2×DVI
DVI Format 1024×768_60Hz/75Hz













Output Interface DVI OUT:24+1 DVI_D
Control Ports RS232 (Optional)
Voltage of Input 100-240VAC 50/60Hz
Power Consumption ≤25W
Temperature of  Environment 0-45℃
Humidity of Environment 15-85%
Size of Product 482.6 (L) x 200 (W) x 44 (H)mm
Packing Size 535 (L) x 315 (W) x 145 (H)mm
Weight G.W.: 35Kg,  N.W.: 22Kg
Standard accessories 1.5m power cord ×1 1.5m DVI cable ×1

User manual ×1    operations CD ×1   BNC-RCA adapter ×1

Optional accessories LED sending cards×2


LVP609 LED Video Processor
