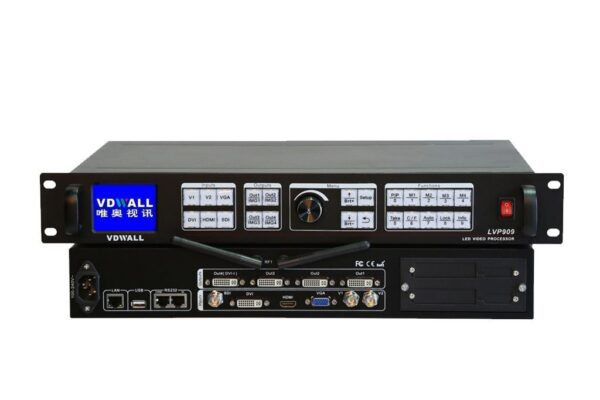

LVP909 Series LED HD Video Processor
4 windows in any size and overlay display,Wireless Wi-Fi control+ Wi-Fi video feedback monitor.
1.Seamless switching,fade in fade out swtiching between any inputs. Multiple mixed analog and digital inputs including 2*Video、1*VGA、1*HDMI、1*DVI、1*SDI/HD-SDI/3G-SDI；
2.“TAKE” fast switching.
3.Four sets of preset PIP display mode: seamless or fade in fade out between modes switching.
4.windows in any size and overlay display. Display 4 input signals picture at the same time.Each picture size, position and overlay order are adjustable.
5.Preview monitor+sync monitor
6.Wi-Fi wirless control+ Wi-Fi video feedback monitor: Wi-Fi video feedback function is realized through installing APP software in handheld device to monitor input signals. Meanwhile,wireless Wi-Fi controls the device to switch signals and call modes.
LVP909 series product model description
*LVP909 without Wi-Fi module,LVP909F with Wi-Fi module.
- Feature one:4 windows in any size and overlay display
- Feature two:Wirelwss WI-FI control +WI-FI video feedback monitor
- Feature three:Frame synchronous technology,no misalignment in high-speed motion pictures
For indoor and outdoor ultra big,abnormal LED screen splicing display;rental,staging,theatre performance LED screen and other fixed installations.
● LVP909 connection diagram
| Input signals |
| type/nums |
2×Video
1×VGA（RGBHV）
1×HDMI（VESA/ CEA-861）1×DVI（VESA/ CEA-861）
1×SDI（SDI/HD-SDI/3G-SDI） |
| Video system |
PAL/NTSC |
| composite video scope/ Impedance |
1V（p_p）/ 75Ω |
| VGA format |
PC（VESA standard） |
≤1920×1200_60Hz |
| VGAscope/ Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
| DVI format |
PC（VESA standard） |
≤1920×1200_60Hz |
| HDMI-1.3（CEA-861） |
≤1920×1080p_60Hz |
| SDI format |
SMPTE 259M-C
SMPTE 292M
SMPTE 274M/296M
SMPTE 424M/425M |
480i_60Hz
576i_50Hz
720p、1080i、1080p |

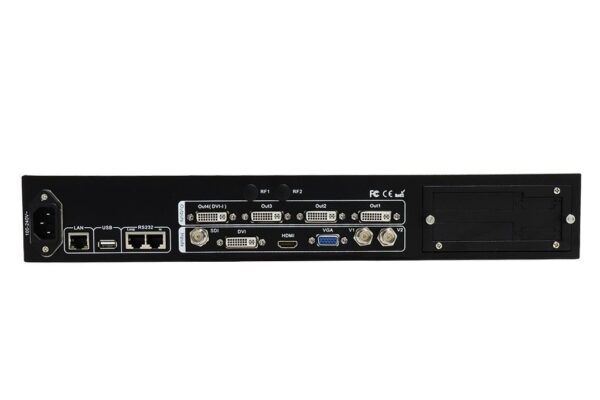

| Input ports |
Video：P4 of VGA port
VGA：15pin D_Sub( female)HDMI：A type of HDMI port
DVI：24+1 DVI_D
SDI：BNC/ 75Ω |
| Output signals |
| type/nums |
1×VGA
4×DVI |
| Preview output |
1×VGA（DVI OUT4） |
| DVI resolution |
1024×768_60Hz1280×1024_60Hz
1920×1080p_60Hz1920×1200_60Hz |
| Output port |
DVI：24+1 DVI_I |
| others |
| Control ports |
Front panel /RS232/USB/LAN/WIFI |
| Input voltage |
100-240VAC 50/60Hz |
| power |
≤80W |
| temperature |
0-45℃ |
| humidity |
15-85% |
| size |
483 (L) x274(W) x66.6 (H)mm |
| Weight |
G.W.：5.5 Kg, N.W.：4.2Kg |
