Colorlight LED Sending Box LED Screen Controller S-Series S20 S6F S4 S2


Buy More Pay Less: 5% off (Over 3000USD) / 10% off (Over 6000USD)
    SKU: 66489 Category: Tag:

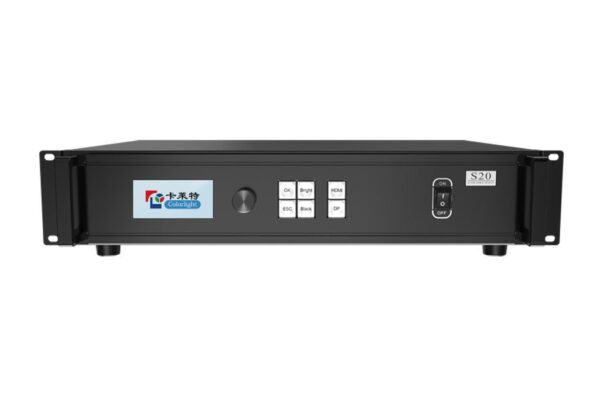

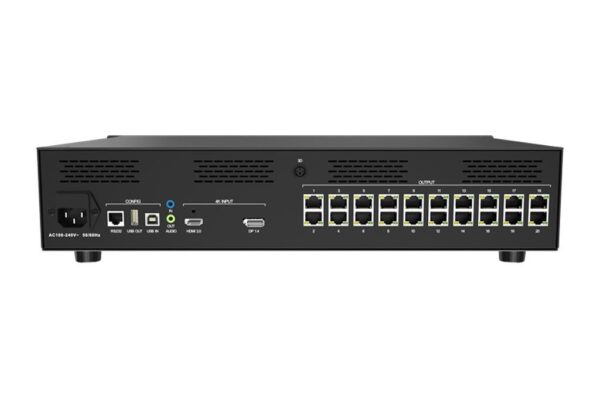

    S20 UHD Sender

    S20 is a sender possessing powerful video signal receiving capacity. It supports the input of DP1.4 and HDMI2.0, and seamless switching between signal sources. A single unit features a loading capacity of up to 8.85 million pixels, with a maximum width or height of 8192 pixels, while a single Ethernet port supports a loading width or height of up to 4096 pixels, and the sender supports signal inputs of up to 4096×2160@60Hz resolution. Thus, S20 allows users to configure ultra-long, ultra-high and ultra-large screens. S20 supports 20 Gigabit Ethernet outputs, as well as Ethernet port redundancy and sender redundancy. It can not only effectively ensure the display stability of screens, but also provide high-quality image display and flexible screen control.

    ·Inputs: 1× DP1.4,1×HDMI 2.0
    ·Supports seamless switching between signal sources
    ·Loading capacity: up to 8.85 million pixels,maximum width or height:8192 pixels
    ·Loading capacity of a single Ethernet port: up to 650 thousand pixels,maximum width or height: 4096 pixels. The loading capacity will reducewhen the height exceeds 1280 pixels.
    ·Input resolution: up to 4096×2160@60Hz,supporting customizedsetting of resolution within control range.
    ·Outputs: 20 Gigabit Ethernet ports, supporting Ethernet port redundancyor sender redundancy
    ·HDCP 2.3 compliant
    ·Supports USB cascading control and RS232 protocol control
    ·Separate audio input and output
    ·Supports 3D display
    ·Better gray at low brightness
    ·Compatible with all receiver cards and multifunction cards of Colorlight

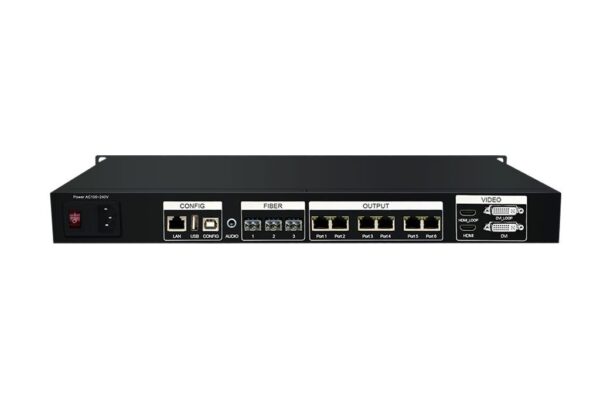

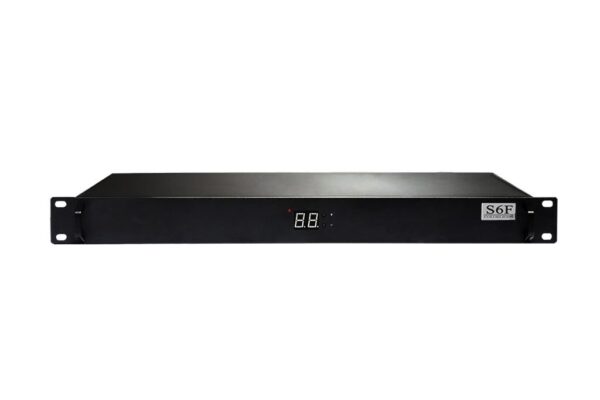

    S6F HD Sender

    S6F HD Sender possesses powerful video signal receiving capacity, and supports DVI&HDMI HD signal input and loop output, in which max input resolution is 1920*1200 pixels. Meanwhile, 6 Gigabit Ethernet and 3 optical fiber outputs support big LED display of 4096 pixels in maximum width or 2560 pixels in maximum height.

    ·Video input ports including 1 HDMI with loop, 1 DVI with loop;
    ·Support input resolution up to 1920*1200@60Hz;
    ·Loading capacity: 2.3 million pixels, Maximum width: 4096 pixels, Maximum height: 2560 pixels;
    ·6 Gigabit Ethernet outputs support screen arbitrary splicing;
    ·Support 3 optical fiber outputs;
    ·Dual USB2.0 for high-speed configuration and easy cascading;
    ·Support splicing and cascading among several senders with synchronization strictly;
    ·Support control via 100M Ethernet;
    ·Support brightness and chromaticity adjustment;
    ·Support improved gray-scale at low brightness;
    ·Support HDCP;
    ·Compatible with all receiving cards, multifunction card, optical fiber transceivers of Colorlight.

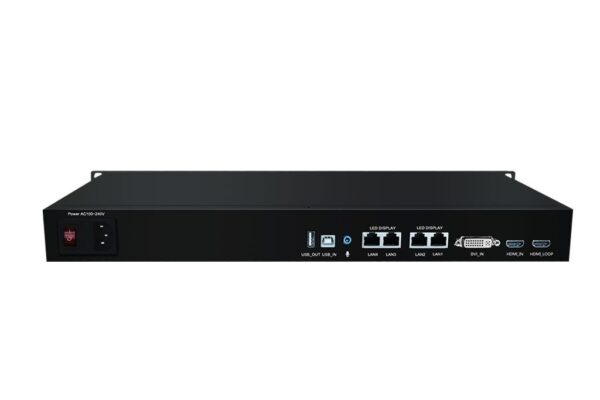

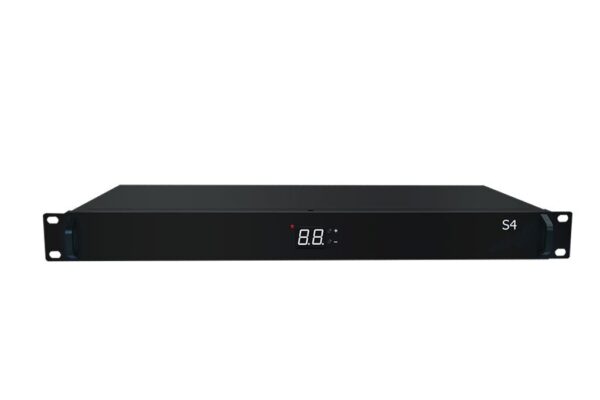

    S4 Sender

    S4 sender, possesses powerful video signal receiving capacity, and supports DVI and HDMI signal input, in which max input resolution is 1920*1200 pixels. Meanwhile, 4 Gigabit Ethernet outputs support arbitrary splicing, and dual USB2.0 interfaces for high speed configuration and easy cascading. Also, it equips a series of versatile functions, which can be applied to common fixed display perfectly.

    ·HDMI and DVI signal input ports with HDMI signal loop output port
    ·Maximum input resolution: 1920*1200 pixels
    ·Maximum loading capacity: 2.30 million pixels
    ·Maximum Width: 4096pixels, Maximum Height: 2560 pixels
    ·4 Gigabit Ethernet outputs support screen arbitrary splicing
    ·Dual USB2.0 for high speed configuration and easy cascading
    ·Support brightness and chromaticity adjustment
    ·Improved grayscale performance at low brightness
    ·Support HDCP
    ·Compatible with all series of Colorlight receiving card

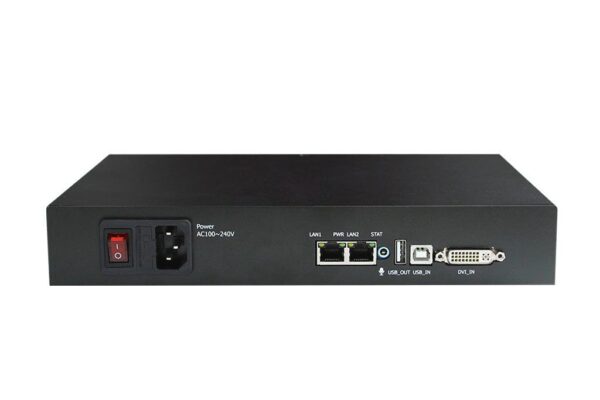

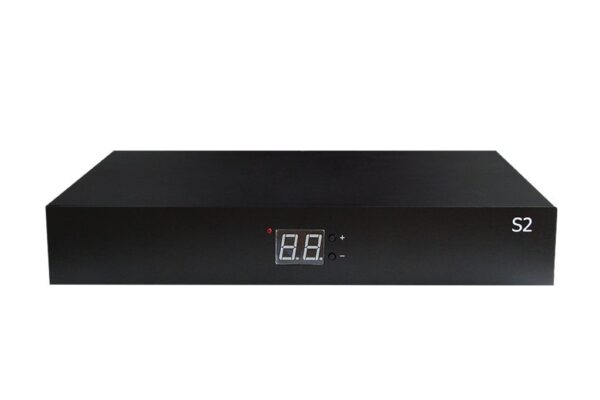

    S2 Synchronous Sender

    As a new generation of sender, S2 Sender has updated its core chips, and the performance significantly improved. It adopts dual USB2.0 as the communication interface to achieve high speed communication between the PC and senders. S2 Sender realizes cascading between multiple cards and much more convenient. S2 Sender can be applied to small display perfectly.

    ·DVI signal input port
    ·Audio input port with synchronous transmission via Ethernet cable
    ·Maximum input resolution: 1920*1200 pixels
    ·Loading capacity: 1.31 million pixels
    ·Maximum Width: 2560 pixels, Maximum Height: 2560 pixels
    ·2 Gigabit Ethernet port outputs support screen arbitrary splicing
    ·Dual USB ports for high speed configuration and easy cascading
    ·Improved grayscale performance at low brightness
    ·Wide working voltage with AC 100 ~ 240V
    ·Compatible with all series of Colorlight receiving cards

    Further Information:
    Colorlight S20 LED Video Controller Specification
    Colorlight S20 LED Video Controller User Manual


    Model Number

    S6F, S4, S2, S20
