Colorlight X-Series LED Display Controller X20 X16 X8 X4e X4 X2 LED Video Processor

$115.00$1,800.00

Over 2500 USD
Over 5000 USD
Guaranteed Safe Checkout
SKU: 76655 Category: Tag:

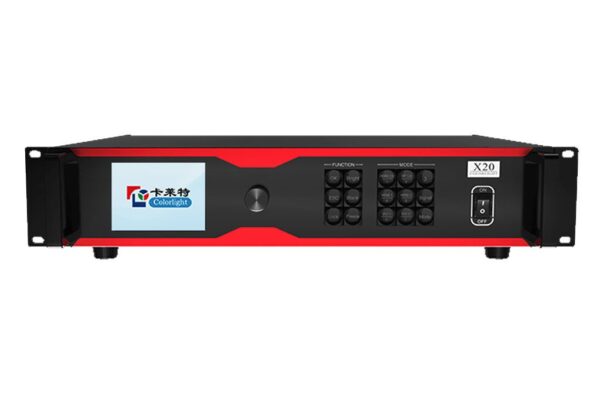

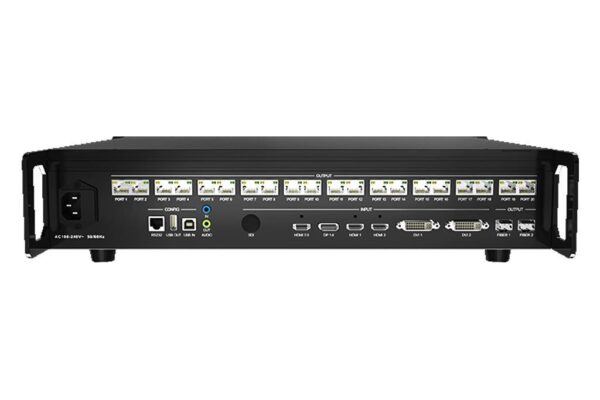

X20 LED Controller

X20 is a controller possessing powerful video signal input and processing capacity. It supports 4K inputs with DP1.4 and HDMI2.0 connectors, and 2K inputs with HDMI1.4 and DVI connectors, and the multiple signals can be seamlessly switched. A single unit features a loading capacity of 11.8 million pixels, with 16384 pixels in maximum width or 8192 pixels in maximum height. Equipped with 20 1000BASE-T Ethernet ports and 2 10GBASE-T optical ports, X20 is able to meet the need of different clients. Additionally, X20 boasts abundant practical functions that enable flexible screen control and high-quality image display.

  • Input connectors: 1×DP 1.4, 1×HDMI2.0, 2×HDMI1.4, 2×DVI
  • Loading capacity: 11.8 million pixels, maximum width: 16384 pixels, or maximum height: 8192 pixels
  • Input resolution: up to 4096×2160@60Hz, supporting customized setting
  • Output connectors: 20× Gigabit Ethernet port, 2×10G optical fiber port
  • Support video source switching, cropping, splicing and scaling
  • Support up to 6 windows, of which the location and size can be freely adjusted
  • Separate audio input and output
  • HDCP 2.3 compliant
  • Brightness and color temperature adjustment
  • Better gray at low brightness
  • Compatible with all series of receiver cards, multifunction cards and fiber converters of Colorlight

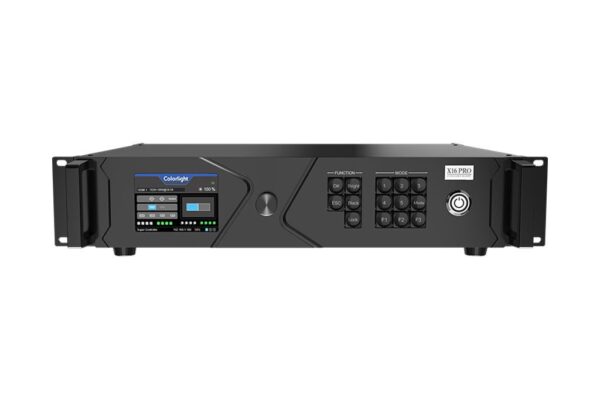

X16 PRO LED Controller

X16 PRO is a professional-grade LED display control device with powerful video signal receiving, splicing and processing capabilities, up to 4K digital signal of 4096×2160 pixels; supports HDMI, DP, DVI, SDI and other digital interfaces, seamless switching between multiple signals; supports splicing, broadcast-level scaling, and up to 7-screen display.
X16 PRO is equipped with 16 Gigabit LAN outputs, and can support LED displays of up to 8192 pixels wide and up to 4096 pixels on a single machine. At the same time, X16 PRO has a series of rich and practical functions, providing flexible screen control and high-quality image display, which can be perfectly applied to high-end rental display and small pitch LED display.

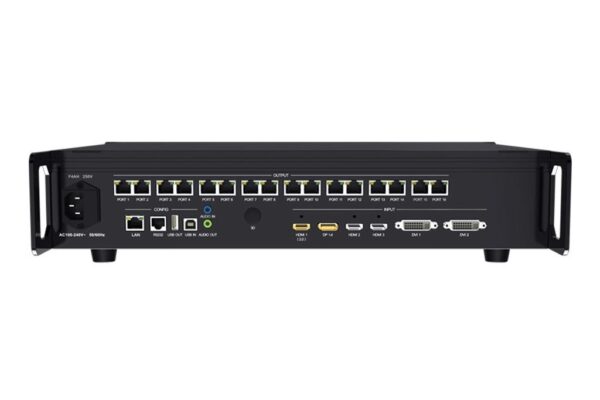

X16E LED Controller

·Input connectors: 1×DP 1.4, 1×HDMI2.0, 2×HDMI1.4, 2×DVI
·Loading capacity: 10.48 million pixels, maximum width: 16384 pixels, or maximum height: 8192 pixels
·Input resolution: up to 4096×2160@60Hz, supporting customized setting
·Output connectors: 16 × Gigabit Ethernet port
·Support video source switching, cropping, splicing and scaling
·Support up to 6 windows, of which the location and size can be freely adjusted
·Support precise color management and display gamut adjustment
·Support video sync
·Separate audio input and output
·Support analyzing and outputting the audio signals of HDMI and DP inputs
·Support LAN control
·Support control via hand-held terminal(app)
·Support RS232 protocol control
·Support 3D(optional)
·HDCP compliant
·Brightness and color temperature adjustment
·Better gray at low brightness

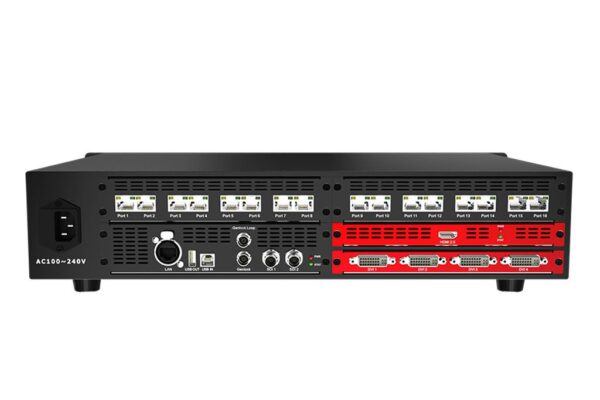

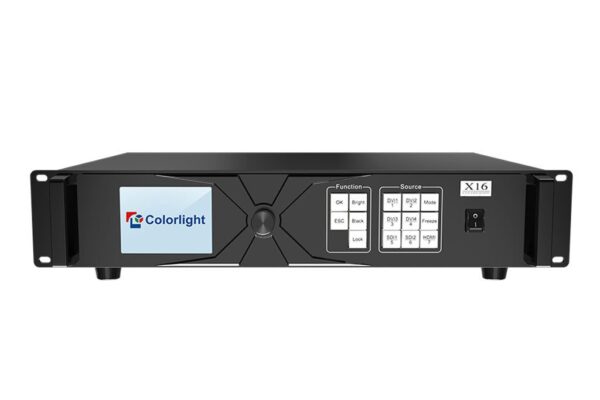

X16 LED Controller
X16 is a professional LED display controller. It possesses powerful video signal receiving, splicing and processing capacities, and supports multiple signal inputs, in which the maximum input resolution is 4K@4096×2160 pixels. It supports digital ports (HDMI, DVI, SDI), and seamless switching between signals. It supports splicing, broadcast quality scaling, and seven-pictures displays. X16 LED Video ProcessorX16 LED Video Processor

X8 Controller

X8 is a professional LED display controller. It possesses powerful video signal receiving, splicing and processing capacities, and supports multiple signal inputs, in which the maximum input resolution is 1920×1200 pixels. It supports digital ports (DVI and SDI), and seamless switching between signals. It supports splicing, broadcast quality scaling, and five-layers displays.
X8 LED Video ProcessorX8 LED Video Processor

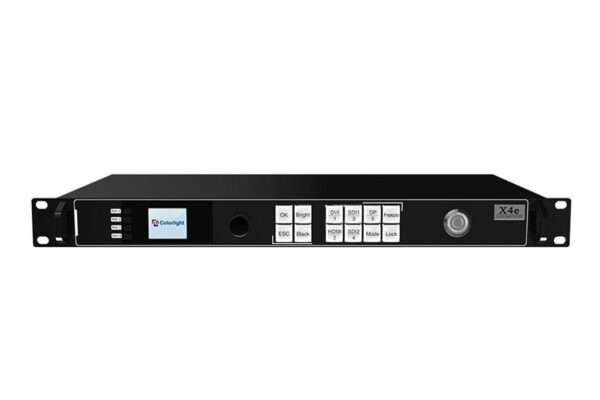

X4e Controller

X4e controller is a professional control system and video processing equipment specially designed for LED engineering applications. It equips various video signal interfaces, supports high-definition digital ports (SDI, HDMI, DVI, DP), and seamless switching between signals can be achieved; it supports broadcast quality scaling and multi-pictures display.
X4E LED Video ProcessorX4E LED Video Processor

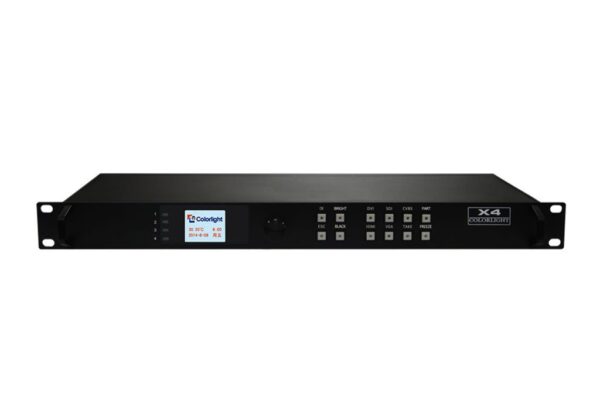

X4 Controller

X4 is a professional LED display controller, it possesses powerful video signal receiving capacity, and supports multiple signal inputs, in which max input resolution is 1920*1200 pixels. Meanwhile, 4 Gigabit Ethernet outputs support arbitrary splicing.
X4 LED Video ProcessorX4 LED Video Processor

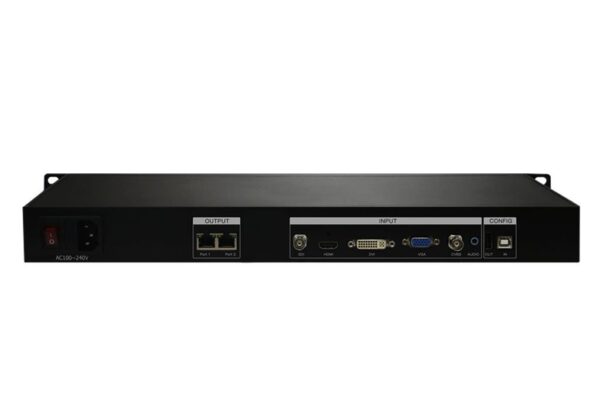

X2 Controller

X2 is a professional LED display controller, it possesses powerful video signal receiving capacity, and supports multiple signal inputs, in which max input resolution is 1920*1200 pixels. Meanwhile, 2 Gigabit Ethernet outputs support big LED display of 2560 pixels in maximum width/height.
X2 LED Video ProcessorX2 LED Video Processor

Model Number

X16E, X16 PRO, X16, X12, X8E, X8, X7, X6, X4e, X4S, X4, X3, X2S, X2, X1, X20, X100
