Huidu Asynchronous LED Display Controller HD-C16C C36C C16 C36 LED Multimedia Card


Buy More Pay Less: 5% off (Over 3000USD) / 10% off (Over 6000USD)
    SKU: 88489 Category: Tag:

    Small & Medium LED Screen Conttrol Card HD-C36C

    HD-C36C Full Color Asynchronous Controller System is a LED control system that supports mobile APP control, Web remote control and offline play HD Video.
    • 1.  The maximum loading capacity: 524,288 pixels

    • 2.  The maximum width support 8192 pixels.
    • 3.  Equipped with Wi-Fi, Mobile APP management.
    • 4.  With a relay to control the power supply remotely.
    • 5.  Support optional 4G connection, Internet remote control.
    • 6.  10 lines HUB75E ports onboard, can be used for one receiving card.

    Huidu HD-C36C LED Screen Control Card  Control Mode:

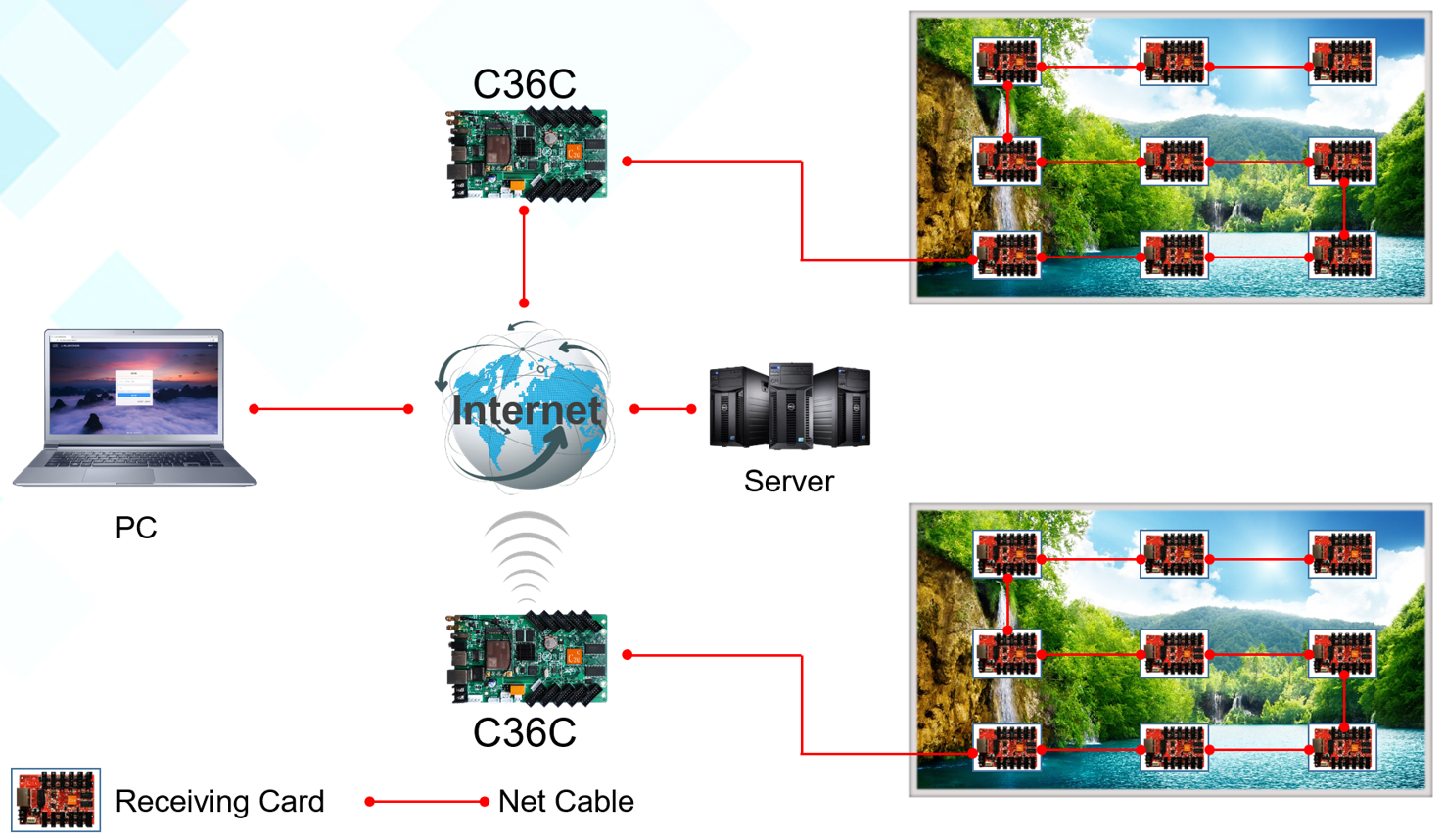

    1. Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.

    Huidu HD-C36C LED Screen Control Card

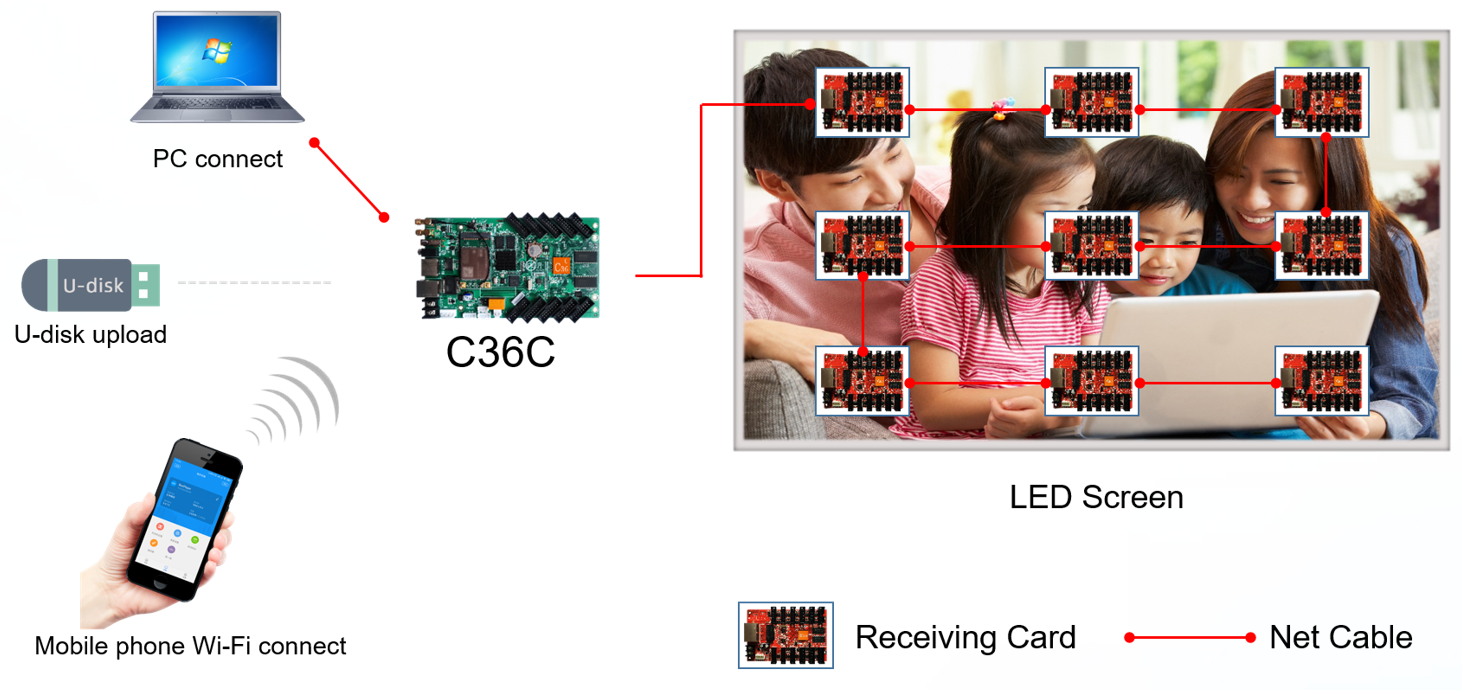

    1. Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.

    Huidu HD-C36C LED Screen Control Card

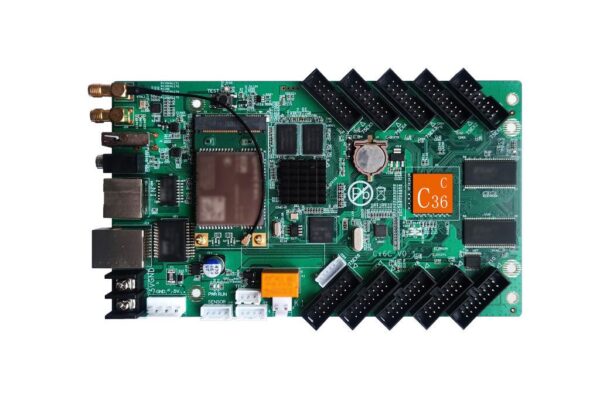

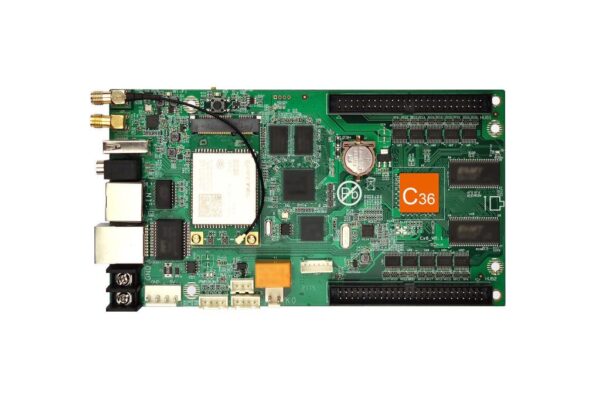

    LED Multimedia Card C36C/C36

    Loading Capacity :520,000 pixels(1024 * 512), widest 8192, highest 1024
    Processing Capacity :4GB storage, Indefinite  expanding of U-disk memory.;
    Wi-Fi :√
    4G :√(Optional)
    C36: 2 groups of 50PIN interface; C36C: 10 groups of HUB75E

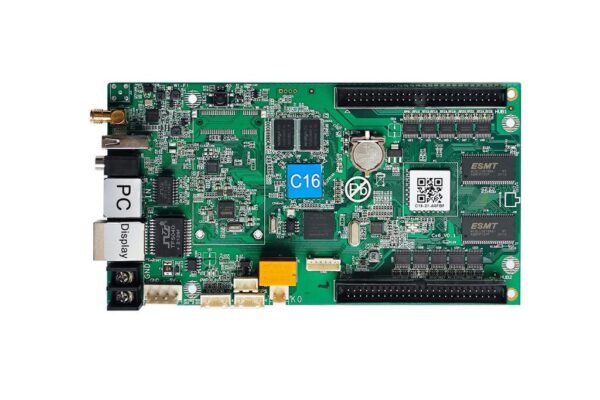

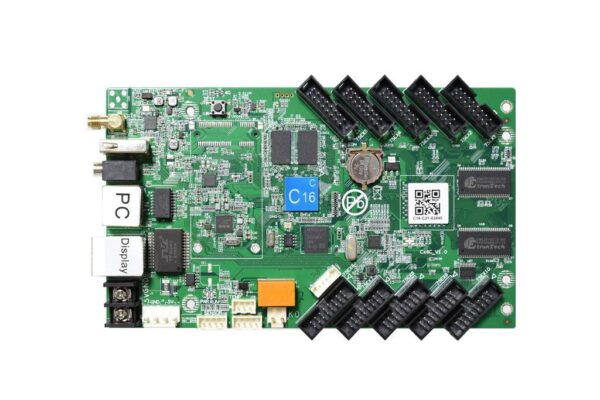

    LED Multimedia Card C16C/C16

    Loading Capacity :120,000 pixels(384 * 320), widest 8192, highest 512
    Processing Capacity :4GB storage, Indefinite expanding of U-disk memory.;
    Wi-Fi :√
    C16: 2 groups of 50PIN interface; C16C: 10 groups of HUB75E

    Further Information:

    Huidu HD-C36C
    Huidu HD-C36C LED Controller Specification
    Huidu HD-C36
    Huidu HD-C36 LED Controller Specification
    Huidu HD-C16C
    Huidu HD-C16C LED Controller Specification
    Huidu HD-C16
    Huidu HD-C16 LED Controller Specification

    Model Number

    C36C, C36, C16C, C16
