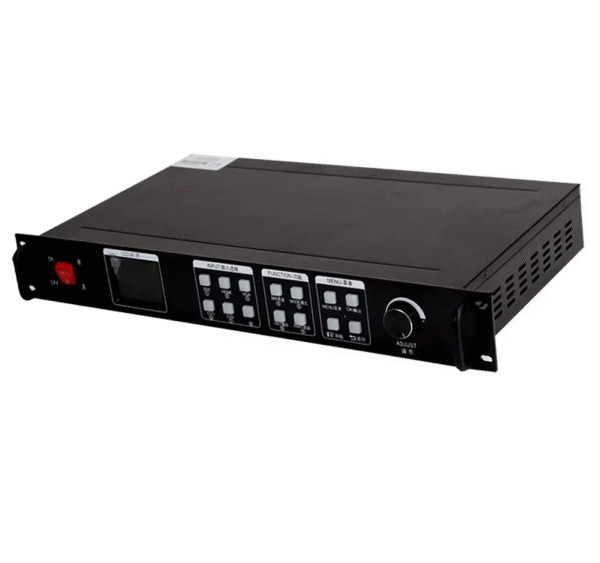

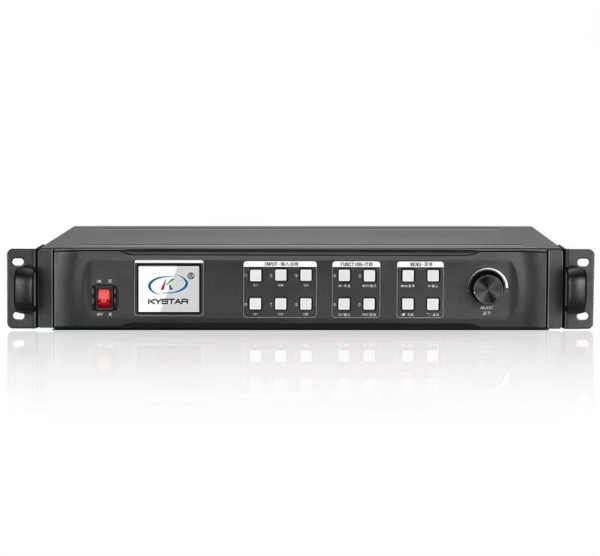

Kystar KS600 LED Display Video Processor Controller HD TV Max Load of 1920 × 1200 @60Hz

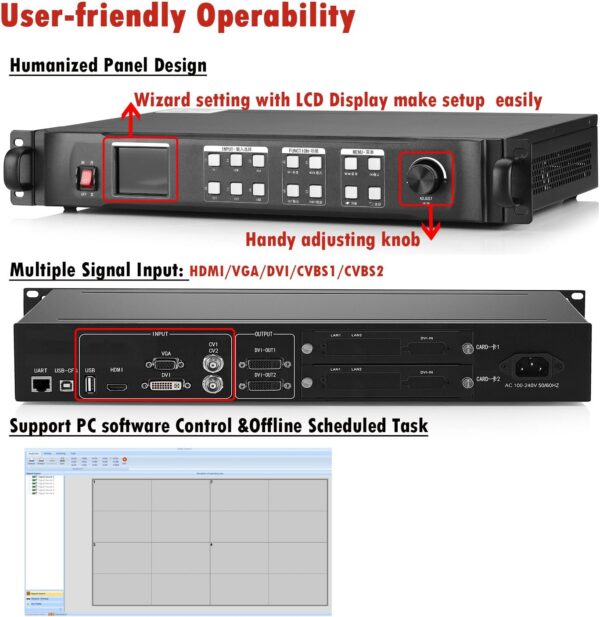

1. Support the independent operation of the control panel. The design of the knob and number keys makes the device easier to use;
2. Support PC software control to realize quick visual operation;
3. Support fade-in and fade-out perfect switching;
4. Support brightness and contrast adjustment to enhance image display effect;
5. Support arbitrary picture size scaling (picture can be adjusted point by point. the smallest can be reduced to one pixel);
6. Support motion compensation. No tailing on the screen;
7. Support noise reduction processing to reduce noise stains;
8. Support 5 HD and SD video signal inputs. 2 video outputs;
9. Support maximum 1920 × 1080 input resolution; custom output resolution. maximum 1920 × 1200;
10. Support keyboard lock function to prevent misoperation of on-site personnel after construction commissioning;
11. Support saving and recalling five scene modes;
12. Support navigation (smart setting) quick setting;
13. International 1.5U standard height. Easy to carry and install.
|

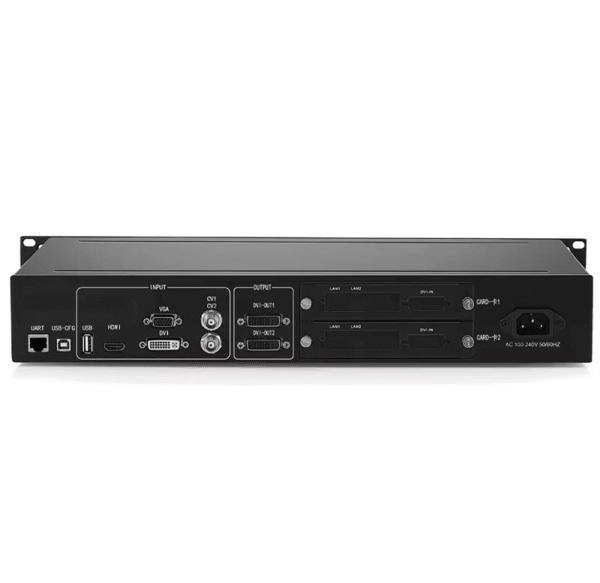

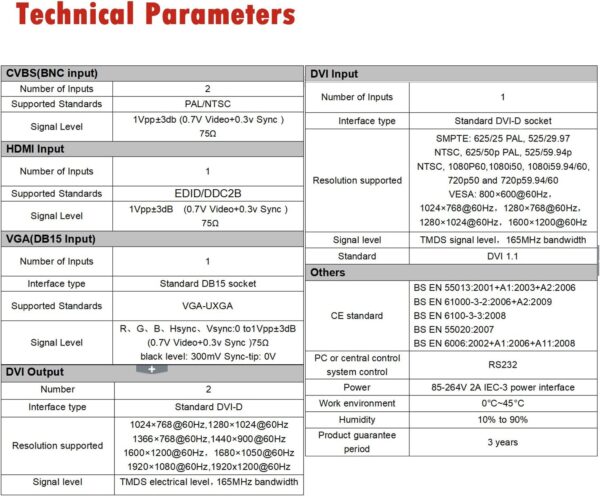

Video Input |
||||
|
Type |
No. |
Description |
||
|
DVI-D(24+1) |
1 |
· Max resolution supported is 1920*1200@60Hz .downward compatibility. ·Compatible with HDMI1.3 and lower version. EDID version 1.3 |
||
|
HDMI(TYPE A) |
1 |
·Max resolution supported is 1920*1200@60Hz. downward compatibility ·Compatible with HDMI1.3 and lower version. EDID version 1.3 |
||
|
VGA (HD-15) |
1 |
·Max resolution supported is 1920*1200@60Hz .downward compatibility. ·EDID version 1.3 .Signal level: R.G.B.Hsync.Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75Ω;black level:300mV Sync-tip:0V |
||
|
CVBS(BNC) |
2 |
·NTSC/PAL adaptive Signal level :1Vpp±3db (0.7V Video+0.3v Sync ) 75Ω |
||
|
Video output |
||||
|
Type |
No. |
Description |
||
|
DVI-D(24+1) |
2 |
·Max resolution supported is 1920*1300@60Hz.downward is compatible ·Compatible with HDMI1.3 and lower version.EDID version 1.3 .User-defined resolution supported. such as 1536*1536@60Hz.1200*1800@60Hz |
||
|
Control interface |
||||
|
Type |
No |
Description |
||
|
RS232(RJ 11) |
1 |
.Baud rate 9600. RJ 11 to RS232 cable provided. |
||
|
Features |
||||
|
Fade in/fade out |
.Every channel supports fade in/out switch. |
|||
|
Humanized interface |

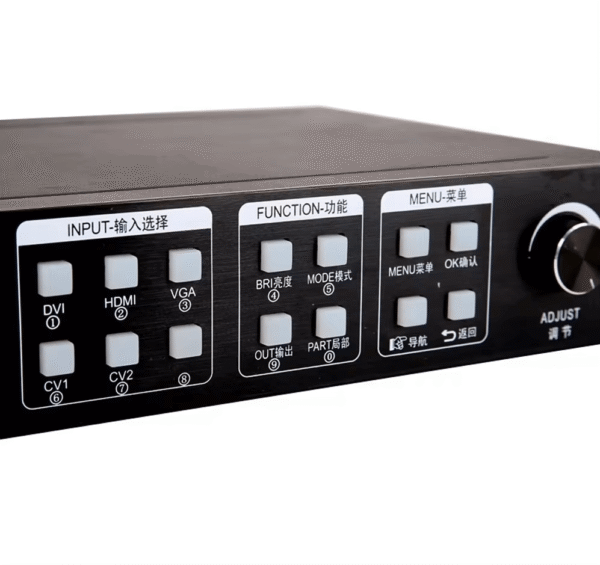

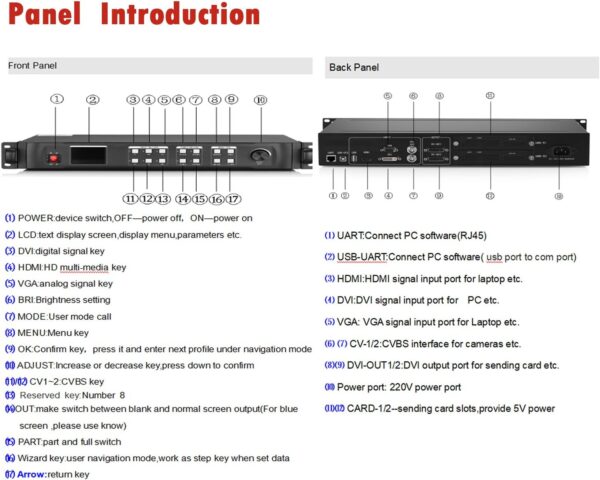

.KS600 has color LCD panel. Numerical buttons and adjustment knob and supports wizard setting. |
|||
|
Scheduled task |
·Make timing operation to complete automatic management via KYSTR software |
|||
|
Others |
||||
|
Software control |
RS232/USB |
Dimension(mm) |
66(H)×432(L)×225(W) |
|
|
Weight(Kg) |
3.5 |
Input power |
100-240VAC.47-63Hz.≤2A |
|
|
Work environment |
Temperature:0-40??;humidity:0-95% |
Warranty period |
1 year |
|
