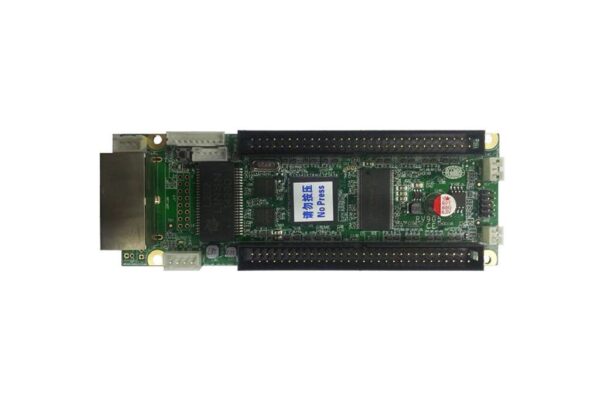

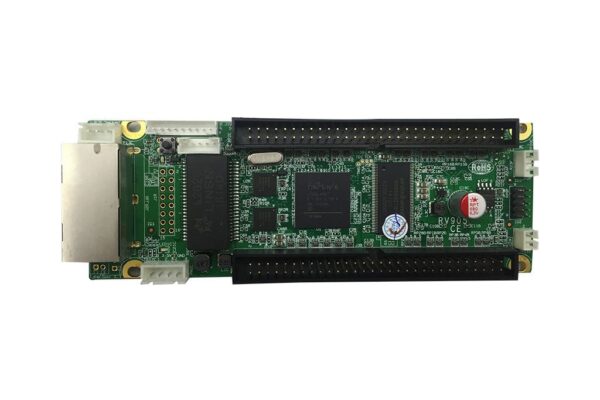

Linsn LED Receiving Card RV905H RV905K LED Display Controller


SKU: 31996 Category: Tags: ,

Function&Features of LINSN RV905H LED Receiver PCB:

1)Compatible RV801, has the full function of RV801 receiver card.
2)Small size (479mm X 1365mm), the same mounting holes as RV802.
3)Four outputs can drive led module directly (saving the adapter).
4)Each set of parallel data interface, up to 14 of 28 groups of parallel data to achieve higher refresh.
5)Free power supply control system design, each VCC pin port is provided, it is desirable cell board power supply to the control system.
6)HDMI supports 12-bit color input (Need work with 9 generations LED sender).
7)Adopt 18 signal processors, maximum support RGB each 18 bit(260,000) gray.
8)Single card maximum support 1024X256 pixels, 1,024 single-point color correction.
9)Supports single-card color space conversion.
10)Support the configuration file readback.
11)Temperature monitoring.
12)Humidity Monitor (need the humidity sensor).
13)RoHS Compliant.
14)CE-EMC compliance with EU standards.

1.Single card can output 16 groups RGBR’ data;
2.Single card can output 24 groups RGB data;
3. Single card can output 28 groups RGB data;
4.Single card maximum supports 512X448 pixels;
5.Each interface has VCC pin to get power supply for control system from led module, no need to get extra power supply for control system;
6. Support saving calibration data on module;
7. Support temperature detection;
8. Support the cabinet-door (open/close) monitoring;
9. Two lines fan-speed monitoring;
10.Humidity monitoring (humidity sensor sold separately);
11. Smoke monitoring (smoke module sold separately);
12. Three lines voltage monitoring: one for the system, two for cabinet power;
13. Support pixel-by-pixel brightness calibration; single-card color space conversion;
14. Support network cable BER test;
15.High refresh rate and high grey level with most of the driver ICs;
16. In line with EU standards RoHS;
17.In line with EU standards CE-EMC;

View More

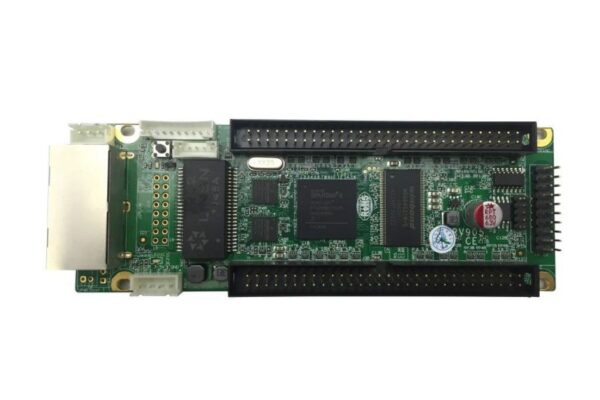

Linsn RV905K LED Receiver Card Specification

Model Number

RV905H, RV905K
