TS852D LED controller box has TS802D sending card inside it, its function is the same as TS802D sending card.
1. Completely Compatible with the Seventh Generation Control System
The eighth generation is developed based on the seventh. Compared with the seventh, the eighth has all the functions of
the seventh. Moreover, the eighth is more functional, more powerful, more stable and more reliable.
2. Supporting 210 colors
The seventh supports 28 colors: 28*28*28=16777216 kinds of colors.
The eighth supports 210 colors: 210*210*210=1073741824 kinds of colors. It needs to work with our video processors
using the 30 bits TTL. So the coloring number of the eighth is 64 times as much as that of the seventh.
3. The intelligent connecting function
Without resetting the configurations, the receiving cards (including spare ones) of the same LED display/cabinet can be
randomly exchanged or replaced, for they will automatically recognize the showing area and content they are responsible for.
4. The intelligent supervision function
n each receiving card, there is a temperature sensor and four fan-power-output-ports. The speed of the fans is under wise
controlled according to the warming value of temperature set by users.
5. Company Logo Showing
If the power of the sending card is not turned on, the monitor the PC will automatically show the preset company picture.
The pixel of the picture will be 128*128, the coloring number 16K.
6. Supporting more scan mode
The seventh supports 1, 2, 4, 8, 16 scan mode, the eighth supports 1, 2, 3, 4, 5, 6, 7, 8, 9. 10, 11, 12, 13, 14, 15, 16 scan mode.
7. Supporting more modules
The seventh supports modules with the width: 2pixels, 4 pixels, 8 pixels, 16 pixels, 32 pixels, 64 pixels.The eighth supports all the
modules with width within 64 pixels. That is from 1 pixel to 64 pixels.
8. Supporting cut-up function
Each receiving card max supports 1024 pieces cutup, for non-conventional type display or text display use.
9. supporting empty pixel insert
The eighth can be set to insert one or more empty pixels every X pixels. This function is applying in non-conversional type display.
10. Supporting PWM driver chip
Need to use particular driver chip Make the display effect going perfect
11. Supporting hardware pixel by pixel correction
Need to use particular driver chip. By changing the current for the LED, adjust the color, wave and brightness of the LED.Make the
effect of display pixel by pixel correction better.
12. Supporting pixel supervision function
Need to use particular driver chip Dynamically check the bad pixels on the display.
13. Giga Technology
14. Pixel by Pixel Correction and Unit box by Unit box Correction Function
15. Intelligent Identification Function
16. Gray level 0—Gray Level 66536 (64K) are Optional
17. Optional Refresh Frequency, Synchronous function
18. Super loading capacity
19. Double network cables switch automatically
20. Multi-display synchronous and combination functions.
21. Brightness 256 Levels Automatic Regulation
22. Voice Transmission Function
23. Upgrading Program Online
24. No Toggle Switch
25. Test Function
26. Super Long Transmission Distance
27. Matching software

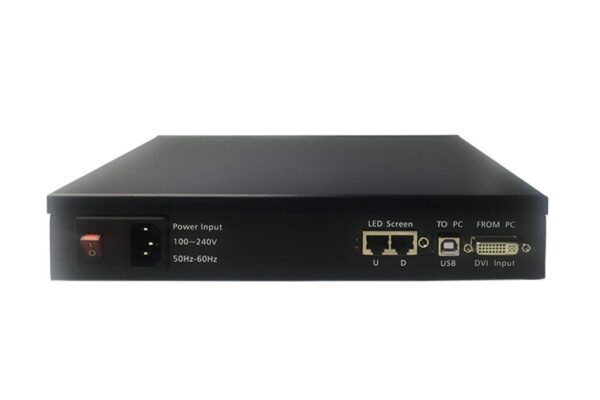

Linsn TS852D LED Sending Box LED Display Screen Controller
Original price was: $300.00.$160.00Current price is: $160.00.
1. Strong technical background. We are a professional LED screen manufacturer in Shenzhen, China. Our engineers are experienced in all kinds of LED controller card configuration and operation, producing and using LED screens.
2 No MOQ request on all our products. You can buy even one sample to test our products before placing bulk orders. Many other suppliers have strict MOQ requests, which is inconvenient for buyers.
3. Quick and safe payment. You can pay by credit card through Paypal, which offers complete buyer protection and avoids having to share any of your financial information.
4. Good quality control. Our technicians inspect all the products earnestly before packaging.
5. Long warranty period. All LED controller products from leddisplayshop.com are under 2-year warranty. You can send the defective products back to us for repair during the warranty period, and we will repair them and send them back to you. The sender affords the shipping cost.
6. Good support fr
1. We ship most of the items listed at our online shop worldwide using the fastest shipping method with a tracking number via DHL, FedEx, or UPS Express, which takes around 4~8+ days to arrive. For Brazil, we only use EMS Express. The buyer must pay USD35 extra for the freight cost if shipping companies list the delivery address as a remote area.
2. We can use the buyer's shipping account to send the goods. But the buyer shall make an appointment for the pickup by himself and send us the shipping label. Simply providing us with a shipping account will not be accepted. If you use a FedEx account, please ask them for a control or reference number.
3. We will process your order within 1~3 working days after receipt of payment. We will re-inform you with another fastest delivery time when it happens to be " "Out of Stock" for the products on your order.
4. We only ship to your order's confirmed address, so please confirm the delivery address on your payment account when you pay by PayPal or Credit Card. We will cancel the order and refund you if it does not match. It is OK if you pay by Wire Transfer or Western Union.
5. The shipping company provides service transit time, excluding weekends and holidays. Transit times may vary, particularly during the holiday season.
6. The buyer shall pay the customs duty on his side if it occurs. Please let us know if you want to lower the product value in the shipping invoice. If not, we will use the actual amount as paid. In most EU countries, this is not allowed. It has to be the real amount paid. A VAT number must be provided for customs clearance for all EU countries, including Switzerland, Norway, and Ireland.
7. If required, please provide some necessary assistance for the shipping company concerning the customs clearance of the goods in your country.
8. When they arrive, Please check the items in front of the DHL/FedEx courier. If the goods are damaged, please try to obtain local DHL's documentary evidence for the breakage, and in the meantime, email us photos of the packaging and products as soon as possible.
9. Please contact us if you have not received your shipment within 15 days from the payment date. We will track the shipment and get back to you with a reply ASAP.
10. The products purchased will not be accepted for return and warranty if the codes are ripped off. We do not accept refunds for custom-made products. Regularly stocked items may be returned for refund with a 20% restocking charge if the request is made within 3 days of receiving. Items must be in a good and resalable condition. Shipping costs back and forth and import taxes (if they are any) are all borne by the buyer.
11. We provide six months to one year of quality warranty for most LED part products and 2 years for complete LED display products (Special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace them free of charge in our factory. Customers are responsible for back-and-forth shipping costs.
