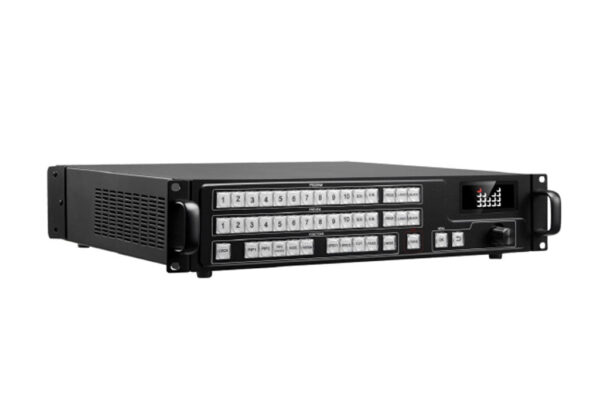

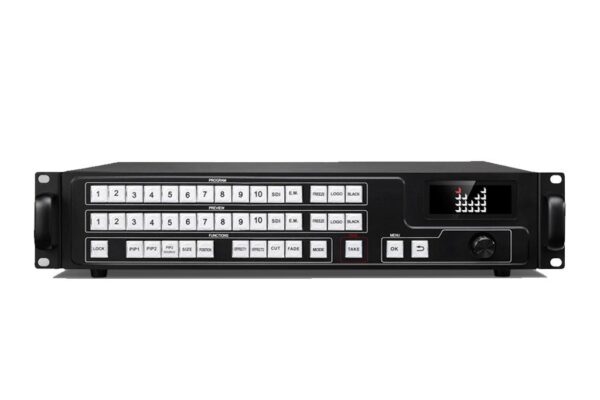

Magnimage MIG-620C Series Video Seamless Switcher LED Display Controller


Over 2500 USD
Over 5000 USD
Guaranteed Safe Checkout
SKU: 84625 Category: Tag:

MIG-620 series products are the video processors that focus on large LED display system, which used the most advanced image processing chip with 12 bits digital processing to make more distinct image and abundant color.
The advanced interlaced scanning self-adoption technology, itcan eliminate the trailing and flaw in the motion of video. For the normal PAL/NTSC video, the output image will be more clearly.
While for the HD 1080i signal, it can enrich the detail of image and color,and make the quality of image as the leading level in the industry.

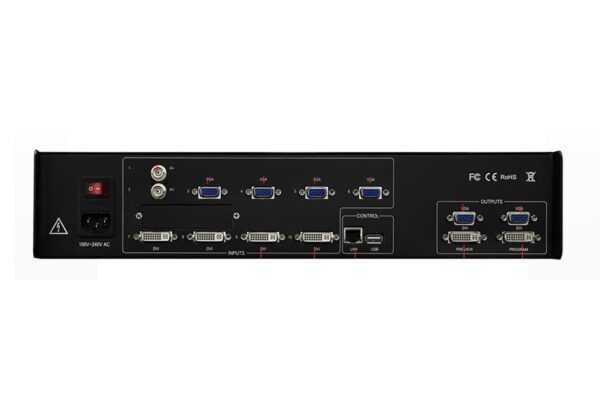

Complete video image input and output ports, which involve 4×VGA(it can switch to 4><CVBS,), 2×CVBS ,4xDVI, one SDI extended port,one digital signal extend po「t, 2 sets of signal output port and each set contains 1 channel DVI and VGA output. It achieves multiple analog and digital signal compound and separated input. Furthermore, it supports manifold switch effects, such as: short cut, fade in/out, Marginal dissolution etc, and it can adjust the effect time to satisfy the various requirements.
It has internal image laye「 processing technology that can run 3 synchronous images, which support adding LOGO, black screen and freezing image. Furthermore, chroma key are also available, which can finish Caption overlay and image full HD signal input, it can connect with multiple audio and video equipment, it support multiple input signal seamless switching and PIP function.
Human-machine interface makes the operation easier and more simply Completed hardware architecture makes it Stable and reliable.

Functions and features:

MIG-620C Series Video Seamless SwitcherMIG-620C Series Video Seamless SwitcherMIG-620C Series Video Seamless Switcher

  • Preview Switching

MIG-620C supports 12 input signals and preview switching among 12 input signals.

It has 16 switching effects, including cut, fade, slide, and there is no black when switching.MIG-620C Series Video Seamless Switcher
  • Three Layers Output + 1 HD Logo

MIG-620Csupports PIP/POPof dual pictures or three pictures by setting the size and position of layers.

And it also supports saving 8 logos at maximum to any output.MIG-620C Series Video Seamless Switcher
  • Preset Function

Preset function allows user to save presets and load them when doing a live show.
This is a quick access to switching operation.MIG-620C Series Video Seamless Switcher

  • LogoFunction

In a corporate event, user can save a background into MIG-620C in advance and load it by LOGO button.

This function is a guarantee to the event, even though the input source is broken down.MIG-620C Series Video Seamless Switcher

Power Supply 100~240VAC,50/60Hz
Consumption 75W
Operating Temperature 0~45℃
Product Dimension 482.0 X 401.2 X 88.5mm
Net Weight 6.3Kg

MIG-620C Series
MIG-620C Series Video Seamless Switcher
Instruction X 1       Certification X 1        Power Cable X 1
AV Cable X 1         Disk X 1      DVI Cable X 1      USB Cable X1

Model Number

MIG-620C, MIG-620CS1, MIG-620CS2, MIG-620CD, MIG-620CSD
