Novastar Taurus Series T30 T50 T60 LED Screen Multimedia Player Controller Card

The NovaStar T30 T50 T60 is the third generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the T30 T50 T60 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

Thanks to its reliability, ease of use, and intelligent control, the T30 T50 T60 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, shelf displays, and much more

• Loading capacity up to 650,000 pixels /1,300,000 pixels/2,300,000 pixels
  Maximum width: 4096 pixels
  Maximum height: 4096 pixels
• 2x Gigabit Ethernet ports/4 x Gigabit Ethernet ports
  These two ports serve as primary by default.
  Users can also set one as primary and the other as backup.
• 1x Stereo audio connector
  The audio sample rate of the internal source is fixed at 48 kHz. The audio sample rate of the external source supports 32 kHz, 44.1 kHz, or 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.
• 1x HDMI 1.4 connector
  Maximum output: 1080p@60Hz, support for HDMI loop
  Input
• 1x HDMI 1.4 connector
  In synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically.
• 2x sensor connectors
  Connect to brightness sensors or temperature and humidity sensors.
  Control
• 1x USB 3.0 (Type A) port
  Allows for playback of content imported from a USB drive and firmware upgrade over USB.
• 1x USB (Type B) port
  Reserved
• 1x Gigabit Ethernet port
  Connects to a LAN, public network, or computer for content publishing and screen control.
  Performance
• Powerful processing capacity
  − Quad-core ARM A55 processor @1.8 GHz
  − Support for H.264/H.265 4K@60Hz video
  decoding
  − 1 GB of onboard RAM
  − 16 GB of internal storage
• Flawless playback
  1x 4K video playback or 2x 1080p video
  playback
  Function
• All-round control plans
  − Enables users to publish content and
  control screens from a computer, mobile
  phone, or tablet.
  − Allows users to publish content and control
  screens from anywhere, anytime.
  − Allows users to monitor screens from
  anywhere, anytime.
• Switching between Wi-Fi AP and Wi-Fi STA
  − In Wi-Fi AP mode, the user terminal connects to the built-in Wi-Fi hotspot of the TB50. The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.
  − In Wi-Fi STA mode, the user terminal and
  the TB50 are connected to the Wi-Fi
  hotspot of a router.
• Synchronous and asynchronous modes
  − In asynchronous mode, the internal video
  source works.
  − In synchronous mode, the video source
  input from the HDMI connector works.
• Synchronous playback across multiple screens
  − NTP time synchronization
  − GPS time synchronization (The specified
  4G module must be installed.)
• Support for 4G modules
  The TB50 ships without a 4G module. Users
  have to purchase 4G modules separately if
  needed.
  Network connection priority: Wired network > WiFi network > 4G network
  When multiple types of networks are available, the TB50 will choose a signal automatically according to the priority.

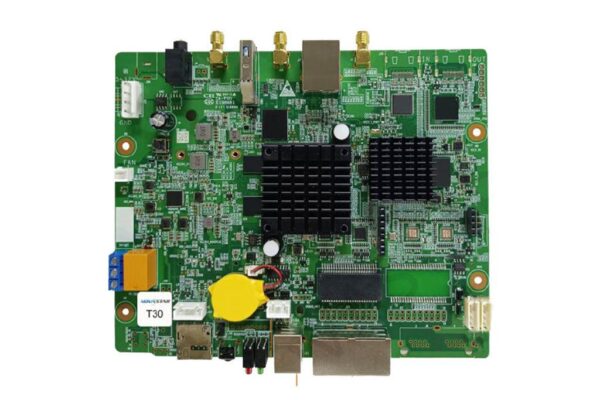

T3/T30 LED Screen Multimedia Player Controller Card

T3 of the Taurus series products (herein after referred to as ‘”T3”) feature following advantages, better satisfying users` requirements:
Loading capacity up to 650,000 pixels.
•Synchronization display
•Powerful processing capability
•Omnidirectional control plan
•Dual-WI-FI mode
•Redundant backup
In addition to program publishing and screen control via PC, mobile phones and LAN, the omnidirectional control plan also supports remote centralized publishing and monitoring,

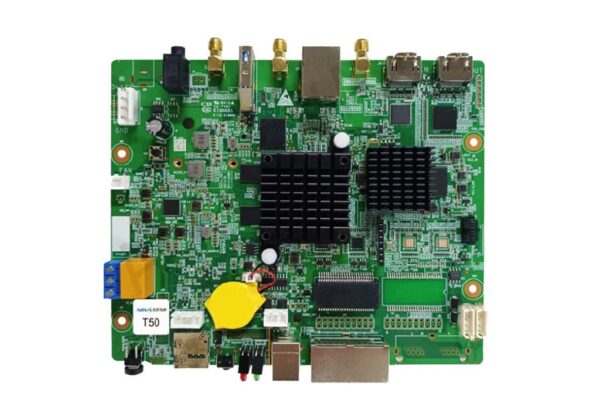

T6/T50 LED Screen Multimedia Player Controller Card

Taurus series products are the second generation of multimedia players dedicated to small and media size LED full color display developed by NovaStar.
Loading capacity up to 1,300,000 pixels.
•Synchronization display
•Powerful processing capability
•Omnidirectional control plan
•Dual-WI-FI mode
•Redundant backup

T8/T60 LED Screen Multimedia Player Controller Card

T8 of series products are the second generation of multimedia players dedicated to small and media size LED full color display developed by NovaStar.
Loading capacity up to 2,300,000 pixels.
Synchronization mechanism for multi-screen playing
Powerful processing capability
Omnidirectional control plan
Synchronous and asynchronous dual-mode
Dual Wi-Fi mode
4G module

*This series product can replace the T1/T2/PSD100/PBOX150,and the PSD100 has been discontinued.

Further Information:
T30/T50
Novastar T30 LED Screen Multimedia Player Controller Card Specification
Novastar T50 LED Screen Multimedia Player Controller Card Specification
