Notice before order
1) The Parts included are the LED module, the signal cable between the modules, and the power cable between the module and the power supply.
2) Buy modules of the same batch: To avoid brightness and color differences on one screen, you must buy modules of the same batch. You must buy the modules for one screen in one order from us.
3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don’t offer technical support or services if you use our LED modules to replace existing ones.
4) Tariff: Our price includes no tariffs or duties at the destination. You should do import customs clearance and pay all tariffs or duties locally.

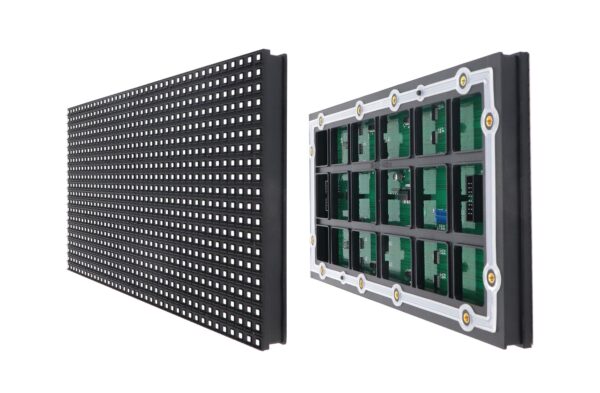

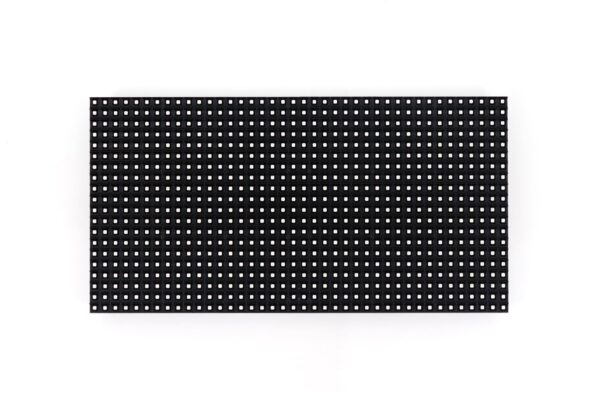

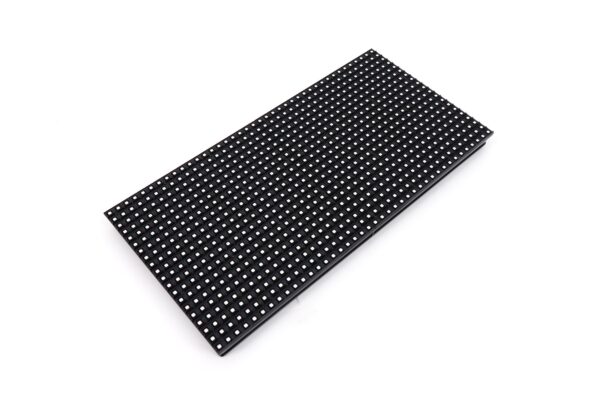

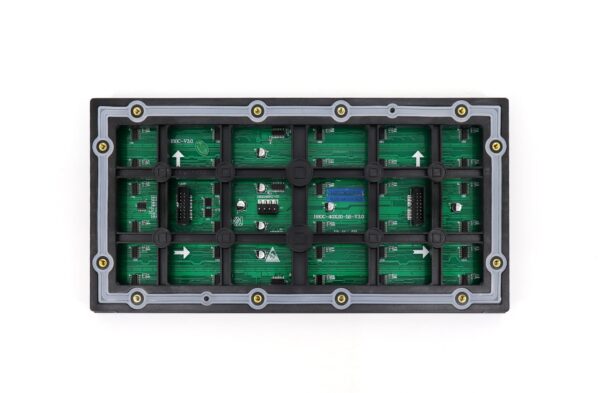

P8 Outdoor SMD3535 LED Screen Module 320x160mm Features:
1) Small pixel pitch 8mm for SMD outdoor LED display. A good solution for outdoor rental LED displays and semi-outdoor fixed installation LED displays.
2) 8mm is one of the pixel pitches of usual indoor LED screens. Therefore, it is a very good solution for renting LED displays for both outdoor and indoor use.
3) Our universal module series has a module size of 320×160 mm, which is convenient for clients to promote. What is more, users can easily update their old LED displays made of our universal modules.
4) Reasonable PCB design with good heat radiation and achieve a long life span.
5) The P8 SMD outdoor LED module is manufactured using a well-known EPISTAR chip from Taiwan, which ensures its superior quality.
P8 Outdoor SMD3535 LED Screen Module 320x160mm Parameters:
| LED Lamp Specification |
| Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
| Red |
SMD3535 |
800-1100mcd |
120° |
620-625nm |
25℃.20mA |
| Green |
1600-2250mcd |
120° |
515-530nm |
25℃.20mA |
| Blue |
350-500mcd |
120° |
465-475nm |
25℃.20mA |
| Module Parameter |
| Pixel Pitch |
8mm |
| Pixel Configuration |
SMD3535 |
| Density |
15.625 pixels/㎡ |
| Module Resolution |
40pixel(L) * 20pixel(H) |
| Module Dimension |
320mm(L) * 160mm(H) * 25mm(D) |
| Driving Mode |
Constant current. 1/5 duty |
| Module Mask |
Pure black mask—high contrast screen |
| Electricity Parameter |
| Optical Ratings |
| Brightness |
≥6500 cd/㎡ |
| Viewing Angle |
120°(Horizontal)； 120°(Vertical) |
| Best Viewing Distance |
≥8m |
| Gray Grade |
14 bit |
| Display Color |
4.4 trillion colors |
| Brightness Adjustment |
100 grades by software or automatically by sensor |
| Max. Power Consumption |
30W |
| Control System |
| Frame Frequency |
≥60Hz |
| Refresh Frequency |
≥1.920Hz |
| Input Signal |
Composite Video. S-video. DVI. HDMI. SDI. HD-SDI |
| Control Distance |
100m(Ethernet cable); |
| 20KM(optical fiber cable) |
| Support VGA Mode |
800*600. 1024*768. 1280*1024. 1600*1200 |
| Color Temperature |
5000—9300 adjustable |
| Brightness Correction |
Pixel by pixel. Module by module. cabinet by cabinet |
| Reliability |
| Working Temperature |
-20～+60 ºC |
| Storage Temperature |
-30～+70 ºC |
| Working Humidity |
10%～90% RH |
| Lifetime |
100.000 hours |
| MTBF |
5000 hours |
| Continuous Operating Time |
≥72 hours |
| Protection Grade |
IP65 |
| Out-of-Control Pixel Rate |
≤0.01% |
