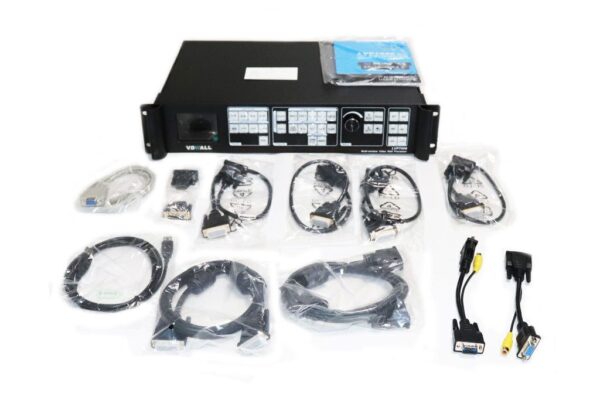

VDWall LVP7000 Series LED Display Controller LVP7021 LVP7042 LED Video Processor


SKU: 51194 Category: Tag:

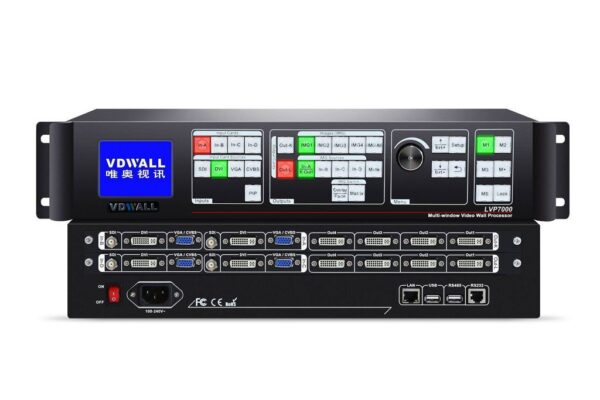

LVP7000 Multi-window Video Wall Processor
High integration
16 preset display modes
Support data import and export

For VDWall LVP7000 mulit-window processor, there are two options, LVP7021(2 input cards and 1 output card) and LVP7042(4 input cards and 2 output cards).
LVP7021 inputs: 2×CVBS,2×VGA(RGBHV), 2×DVI(VESA/ CEA-861),2×SDI(SDI/HD-SDI/3G-SDI) LVP7021 outputs: 4xDVI.
LVP7042inputs: 4×CVBS,4×VGA(RGBHV), 4×DVI(VESA/ CEA-861),4×SDI(SDI/HD-SDI/3G-SDI) LVP7042 outputs: 8xDVI.

1.Highly integrated video processor with varieties of advanced image.processing technologies:Seamless switching, Sync-output cropped images, Multi-window display by image overlay etc
2.Supports SD and HD, Analog and Digital Video Inputs:
3.Per pixel Motion Adaptive De-interlacing processing by Faroudja DCDi
4.8 DVI Outputs, Each one has the resolution up to 1920 x 1200_60Hz
5.Output width up to 20480 pixels or output height up to 9600 lines by one LVP7000
6.Device Aided calculation of the cropped image’s size and position
7.Fully CrossPoint high bandwidth video switching
8.Ture seamless switching and Fade-in/Fade-out switching to any one of input signals
9.Backup or Restore the device settings and adjustment data by a PC
10.24/7 Application, stable and reliable
LVP7042 LED Video ProcessorLVP7042 LED Video Processor
Rental Performance,special-shaped or ultra-large LED display,mixed displays(with different poxel pitch),Stage Entertainment & Theater,High-end Meetings& Exhibitions etc.

● LVP7000 connection diagramLVP7042 LED Video Processor

Input signal index
Type/Quantity 4×CVBS
4×DVI(VESA/ CEA-861)
Video standard PAL/NTSC
Composite Video


1V(p_p)/ 75Ω
VGA format PC(VESA) ≤1920×1200_60Hz
VGA Scope/Impedance R、G、B = 0.7 V(p_p)/ 75Ω
DVI format PC(VESA) ≤1920×1200_60Hz
HDMI-1.3(CEA-861) ≤1920×1080_60Hz
SDI format SMPTE 259M

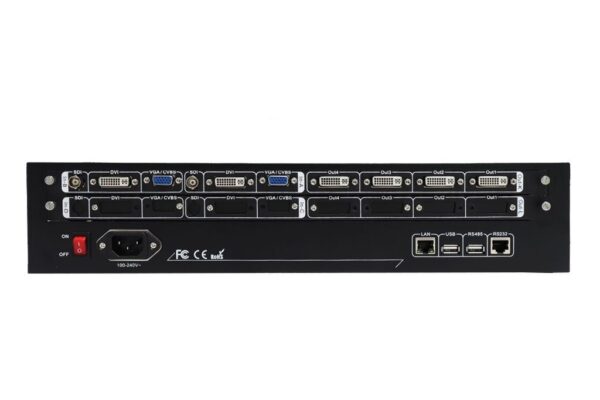

Input port CVBS:VGA socket P4
VGA:15pin D_Sub(female)
DVI:24+1 DVI_D
Output signal index
Type/Quantity 8×DVI
Preview output 1×DVI(one channel of Out_K or Out_L is optional as preview output)
DVI resolution 1024×768_60Hz1280×1024_60Hz


Output port DVI:24+1 DVI_D
Control port RS232/USB/LAN
Input Voltage 100-240VAC 50/60Hz
Maximum power consumption ≤80W
Operating Temp 0-45 ℃
Humidity 15-85%
Dimensions(Product) 482.6(length) x 300(width) x 89(height)mm
Dimensions(Package) 540(length) x 400(width) x 180(height)mm
Weight(N.W.) 6Kg
Weight(G.W.) 9Kg

LVP609 LED Video Processor

Model Number

LVP7021, LVP7042
