Linsn X102/104 3-in-1 LED Display Video Processor
X102/104 is a cost-effective all-in-one video processor developed by Lingxingyu to meet the needs of small engineering screens. This product integrates multiple functions such as U disk playback, sending card, and video processor. A single device can carry a maximum of 1.3/2.6 million pixels, a maximum bandwidth of 3840 pixels, and a maximum of 1920 pixels.
1. 2 network ports output (X102), with a maximum load of 1.3 million pixels/4 network ports output (X104), with a maximum load of 2.6 million pixels;
2. The maximum width is 3840 pixels, and the maximum is 1920 pixels;
3. 100 scenes can be saved, and the panel supports 10 scene shortcut keys;
4. Support U disk program playback;
5. Support video source hot backup and no-signal black screen function;
6. Support direct signal cut, scene cut, audio and video synchronous switching;
7. Support audio input/output;
8. Support brightness adjustment;
9. Support black screen/static function;
10. Support online upgrade, U disk upgrade;
11. Abundant signal input interfaces, including 2 HDMI1.4, 1 DVI, 1 VGA, 1 CVBS;
1:LCD screen 2:Knob switch 3-18:function key 19-21: Input signal source selection key HDMI/DVI/VGA/USB/EXT/CVBS 22: Power switch
1: Power 2-3:Input HDMI 4: VGA 5: DVI 6: CVBS 7: AUDIO IN 8: AUDIO OUT 9/;CTRL 10-13 :Network Port
LINSN X102 is a reliable and high performance LED screen controller. It uses mature video processing solution and 8bit color processing to show colorful and clear image. Dual network outputs for LED screen, which is easy to use and install. It is a best choice for advertisement in mall, hotel and exhibit.
Please note that X102/X104 only works with Linsn receiving card.
Electrical Specifications
Working voltage: AC 90-264VAC, 50/60Hz
Rated power consumption: 15W
Working Environment
Temperature: -20℃ ~ 70℃
Humidity: 0%RH ~ 95%RH
Physical Specifications
Chassis size: 482.6mm×225.3mm×44.5mm
Weight: equipment weight 1.9kg, package weight 2.5kg
Package Size
Packing specification: anti-collision pearl cotton and carton
Carton size: 505mm×135mm×360mm

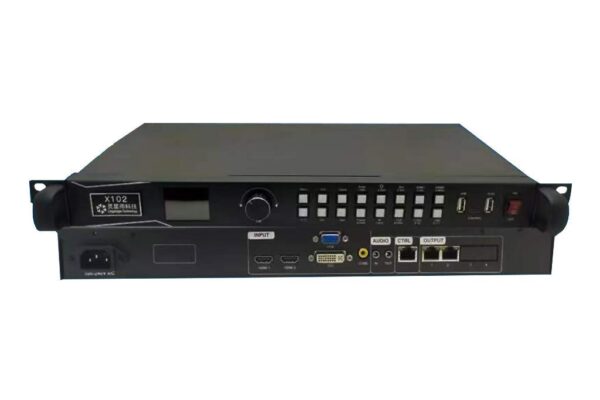

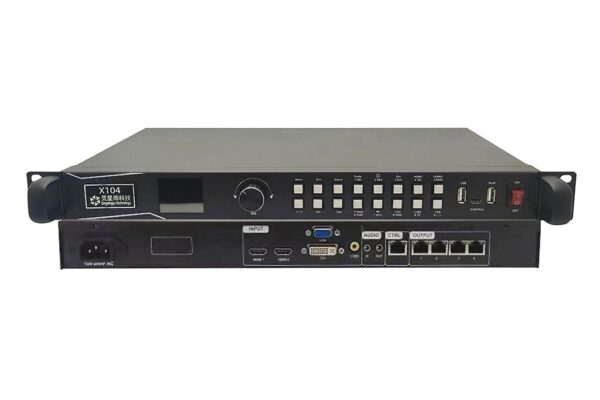

LED Video processor Appearance
LED Video processor Working Diagram
View More
Linsn X102
Linsn X102 LED Video Processor Specification
Linsn X104
Linsn X104 LED Video Processor Specification
