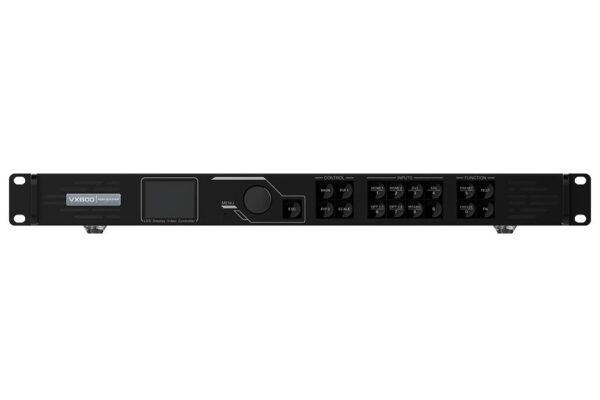

Novastar VX Series LED Video Processor VX1000 VX600 VX400 All-in-1 LED Display Controller


In Stock
    SKU: 23821 Category: Tag:

    The VX1000 is new all-in-one controller that integrates video processing and video control into one box. It features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, which is ideal for ultra-wide and ultra-high LED screen applications.
    The VX1000 is capable of receiving a variety of video signals and processing high-resolution 4K×1K@60Hz images. In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.
    What’s more, the VX1000 can work with Nova Star’s supreme software NovaLCT and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.
    Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

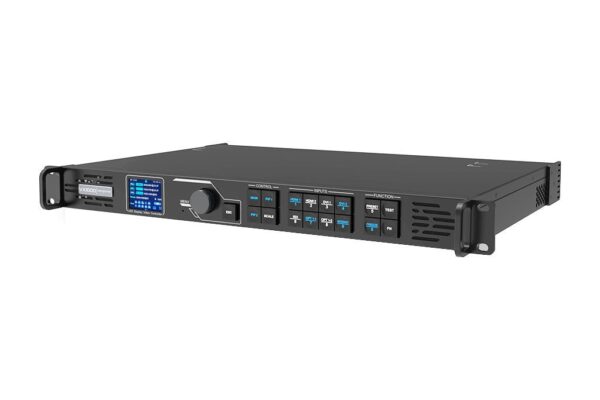

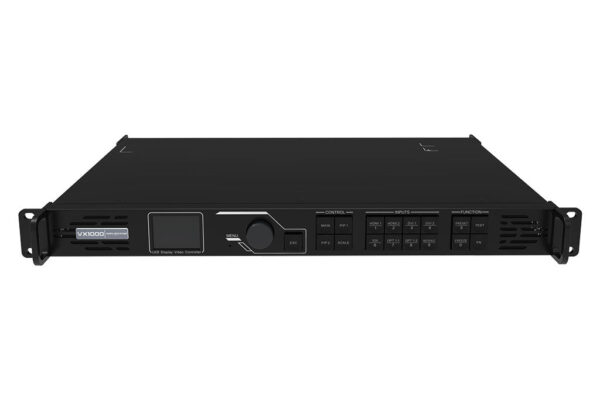

    VX1000 LED Video processor Appearance

    Nova star VX Series LED Video Processor VX1000 All-in-1 LED Display Controller


    VX1000 LED Video processor Working Diagram

    Nova star VX1000 VX600 LED Display Video Processor All-in-1 LED controller

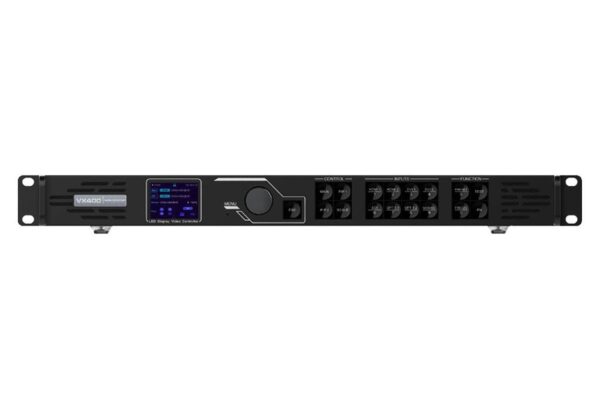

    • The inputs of the VX400 include DVI×1, HDMI1.3×2 , DP×1 and SDI×1. They support input resolution up to 1920×1200@60Hz; the input images of VX4S can be zoomed point-to-point according to the screen resolution.

    • Provide seamless high-speed switching and fade-in/ fade-out effect so as to strengthen and display picture demonstration of professional quality.

    • The location and size of PIP can both beadjusted, which can be controlled at will.

    • Adopt the NovaStar G4 engine; the screen is stable and flicker free without
      scanning lines; the images are exquisite and have a good sense of depth.

    • Can implement white balance calibration and color gamut mapping based on different features of LEDs used by screens to ensure reproduction of true colors.

    • HDMI/external audio input.

    • 10bit / 8bit HD video source;

    • The loading capacity: 2.6 million pixels.

    • Support multiple controller montage for loading huge screen.

    • Support new-generation point-by-point calibration technology; the calibration is fast and efficient.

    • Computer software for system configuration is not necessary. The system can be configured using one knob and one button. All operations can be done in a few steps. That’s what we call Easy Screen Configuration!

    • Adopt an innovative architecture to implement smart configuration; the
      screen debugging can be completed within several minutes; greatly shorten the preparation time on the stage.

    • An intuitive LCD display interface and clear button light hint simplify the control of the system.


    • Inputs :2x HDMI; 2x DVI + Loop, 1x 3G SDI + Loop, 1x 10G Opt
    • Outputs:Ethernet port × 6; 2x 10G OPT
    • Loading Capacity:3.9 million pixels
    • Scaling: Auto-Fit to Size
    • Low-Latency: Supported
    • No. of Layers: 3
    • Video Monitor: HDMI 1.3
    • Communication Mode: USB/LAN
    • Image Mosaic: Supported
    • Crop Settings: Supported
    • PIP: Supported
    • Power: Locking IEC In


    • With load: 6.5 megapixels, width 10240, height 8192
    • Layers: 3 x 4K1K layers
    • Input Connector: 3G-SDI*1 HDMI1.4*2 DVI(HDMI 1.4)*2 OPT1 input*1

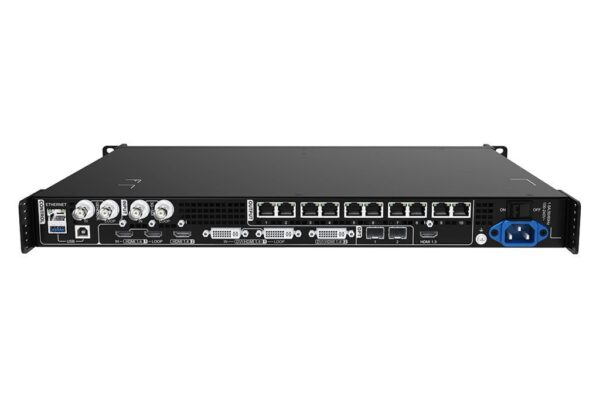

    • Output interface: Network port*10 HDMI 1.3*1
    • Optical interface: OPT*2
    • Control interface: Network port USB (input and output) Genlock (IN-LOOP)
    • Other functions: spliceable, cascadable, customizable function keys, support scene saving and calling, picture quality adjustment.

    *VX2 VX2U VX6S VX4U VX4S-N VX400s products has been no longer in production and our recommended alternatives are as follows: Novastar VX1000 VX600 VX400

    Further Information:
    Novastar VX1000 LED Video Controller Specification
    Novastar VX1000 LED Video Controller User Manual

    Novastar VX600 LED Video Controller Specification
    Novastar VX600 LED Video Controller User Manual
    Novastar VX400 LED Video Controller Specification
    Novastar VX400 LED Video Controller User Manual

    Model Number

    VX1000, VX600, VX400
