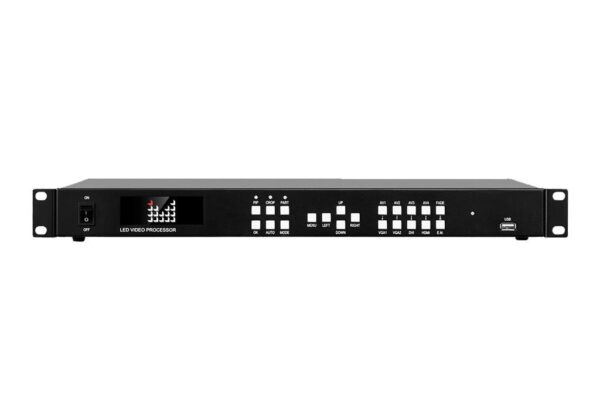

Magnimage LED-540CS Video processor
High performance full color LED-540CS series video processor uses intelligent super size LED display seamless splicing technology, users just need a simple setting to realize the image splicing of LED screen. The unique synchronous follow-up technology ensures the image is fluent and no dislocation and trailing . It makes picture more clear and fluent, powerful. It supports the function of super LED screen seamless splicing, dual picture signal switching real-time processing, fade in/fade out, text overlay, multi-template setting, multi-machine cascade,and hot backup ect.
Can install 2 PCS of Sending card.
Single Machine Maximun Output resolution: 2560*816/60HZ ; 2304*1152/60HZ ; 1536*1536/60HZ
- Seamless Splicing
Using one 540C as master control to control 2 units of 540C,it is able to realize seamless splicing for LED video wall.
- Fade in/ Fade out
LED-540C has fade in /fade out seamless switching function to avoid the black screen when switching the dual pic signals.
Technical Specification
Input Indicators
|
Port |
Amount |
Resolution Standard |
| AV | 4 | PAL、NTSC、SECAM |
| VGA | 2（support two extended） | VESA |
| DVI | 1（support one extended） | VESA（support 1080i） |
| HDMI | 1 | HDMI-1.3 |
| SDI* | 1（support one extended） | 480i、576i、720p、1080i/p（3G SDI） |

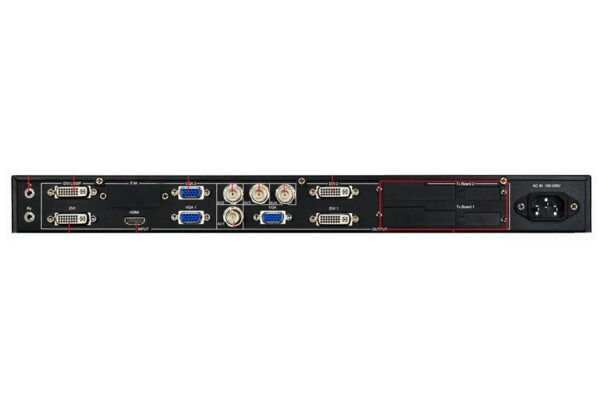

Output Indicators
|
Port |
Amount |
Resolution |
| DVI Loop | 1 | Same as DVI input |
| VGA | 1 | 1024×768/60Hz/75Hz/85Hz/100Hz/120Hz DVI 2
1280×1024/60Hz 1440×900/60Hz 1680×1050/60Hz 1600×1200/60Hz 1600×1200/60Hz – Reduced 1920×1080/60Hz/50Hz 2560×816/60Hz 2048×640/60Hz 1920×1200/60Hz 2304×1152/60Hz 2048×1152/60Hz 1024×1280/60Hz 1536×1536/60Hz |
| DVI | 2 | |
| SDI Loop* | 1 | 480i、576i、720p、1080i/p（3G SDI） |
*Extended
Unit Specification
| Power Supply | 100～240VAC，50/60Hz |
| Consumption | 25W |
| Operating Temperature | 0~45℃ |
| Product Dimension | 482.0 X 282.0 X 44.5mm |
| Packing Dimension | 555.0 X 395.0 X 125.0mm |
| Net Weight | 3.5Kg |
| Gross Weight | 5.1Kg |
LED-540C Series
| Model | Description |
| LED-540C | Standard Unit |
| LED-540CD | Standard Unit+Extended DVI Input |
| LED-540CS | Standard Unit+Extended SDI Input |
| LED-540CV | Standard Unit+Extended VGA Input |
