Novastar Mctrl Series Mctrl660 PRO/660/600 LED Sending Box LED Display Controller


In Stock

    The MCTRL Series is a professional controller developed by NW. A single MCTRL Series has a loading capacity of up to 1920×1200@60Hz. It allows users to customize resolutions to configure ultra-large screens with ultra-width or ultraheight .

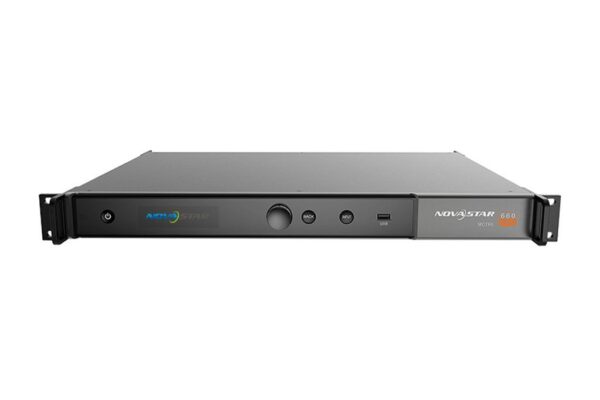

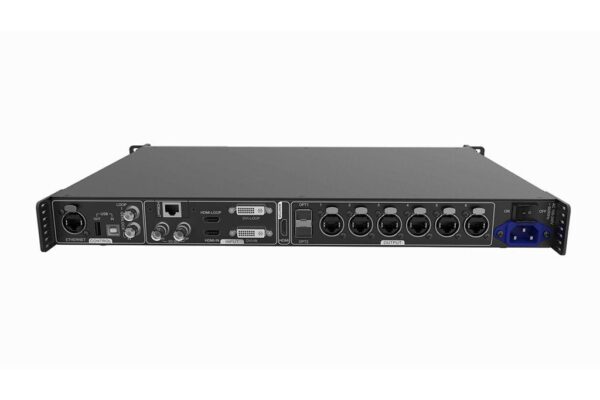

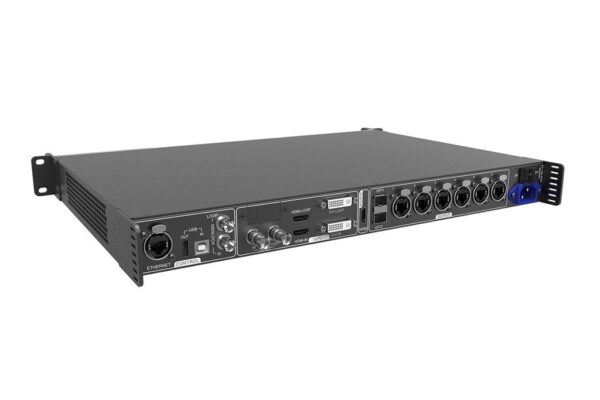

    LED Video Controller Appearance

    LED Video Controller Working Diagram


    MCTRL660 PRO

    Low latency controller for a low latency world

    • Product Type :Controller

    • Input Resolution :1920×1200@60Hz

    • Capacity :2.3 million pixels

    • Supply Voltage :100~240V AC

    • Control Method :USB, ETHERNET,GENLOCK

    • Video Interface :HDMI/DVI/3G-SDI

    • Audio Interface :HDMI/3.5mm Audio connector

    • Viedo Format :RGB444/YCbCr444/YCbCr422/YCbCr420

    • Output Interface :6 × Gigabit Ethernet ports, 2 × 10G optical ports.

    • Bit Depth Of Video Resource :8/10/12bit

    • Light Sensor Interface :Don’t Support

    • Certification :EMC,  RoHS,  FCC,  IC, LVD


    No PC required for LED display configuration

    √  Cabinet config files saving & sending

    √  Brightness, Color & Test pattern adjustable by knob

    √  Full HD pixels capacity

    √  HDCP & 12-bit HDMI

    • No PC required for LED display configuration.

    • LED display brightness adjustable directly with knob.

    • 12-bit / 10-bit HDMI input, DVI input.

    • HDMI / DVI output, for cascading or monitoring.

    • HDMI / external audio unput.

    • HDCP Blu-Ray input.

    • Resolutions supported: (8-bit)

      • 2048×1152@60Hz,

      • 1920×1200@60Hz,

      • 2560×  960@60Hz.

    • Resolutions supported: (12-bit / 10-bit)

      • 1440×900@60Hz.

    • Customized resolution supported:
      maximum width / height up to 3840 pixels.

    • Cascading supported.

    • Video formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4.

    • Independent power supply.

    • 19 × 1.5U standard cabinet.


    • 12-bit / 10-bit HDMI input, DVI input.

    • HDMI / external audio input.

    • HDCP Blu-Ray input.

    • ​Resolutions supported: (8-bit)

      • 2048×1152@60Hz​,

      • 1920×1200@60Hz,

      • 2560×  960@60Hz.

      • Customized resolution supported, maximum width/height up to 3840 pixels.

    • ​1 light sensor interface, for auto brightness adjustment.

    • Cascading supported.

    • Video formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4.

    • Certification: CE, RoHS, FCC, EAC, IC.

    Model Number

    MCTRL660 PRO, MCTRL660, MCTRL600
