4K2K ultra HD video processing, single port HDMI or DP can receive 4K2K ultra HD video signal. LVP6092, LVP6093, LVP6094 three options available.
Difference among LVP6092, LVP6093 and LVP6094:
LVP 6092 has 4 DVI outputs;
LVP 6093 has 6 DVI outputs;
LVP 6094 has 8 DVI outputs.

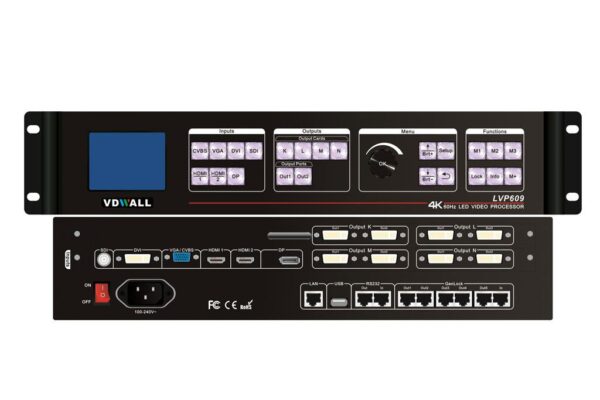

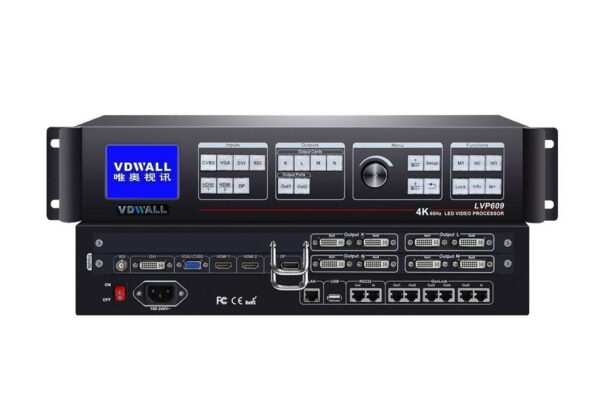

VDWall LVP 609 4K/2K 60HZ LED HD Video Processor Features:
1.4K2K_60Hz real 4K pole-clear LED video processor, advanced interlaced motion image adaptive processing technology, moving images without tailing and saw-tooth;
2. Within 4K2K range, the LED screen shows point-to-point synchronization display; supporting Promise zoom;the maximum load of one single machine is 16 million pixels, without cumbersome software settings;
3. Input: Ultra HD + HD + SD, analog + digital; HDMI2.0 (4K2K_60Hz) x 1, CVBS x 2, VGA x 1, DVI x 1, SDI / HD-SDI x 1;the seamless switch , fade in and out switch among them
4. Output: DVI digital full HD, up to 8 route, single-port resolution of 1920 x 1080_60Hz
5. Synchronous monitoring, you can use the monitor to monitor the 1080P 4K2K_60Hz input screen;
6. A variety of pre-stored mode and a key call, mode calling use seamless or fade in and fade out switch
7. Convenient panel key operation or RS232 / USB / LAN control settings.
Key Application
Small pixel pitch and ultra HD LED screen,video conference,TV studio,rental,staging,exhibition and etc.
Connection Diagram
| Inputs |
| Quantity /Type |
2×Video
1×VGA（VESA）
1×DVI（VESA）
1×HDMI 2.0（（VESA/CEA-861）
1×SDI（SDI/HD-SDI/3G-SDI） |
| Video system |
PAL/NTSC |
| Composite video amplitude Impedance |
1V（p_p）/ 75Ω |
| VGA Format |
PC（VESA） |
≤1920×1200_60Hz |
| VGA amplitude Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
| DVI Format |
PC（VESA） |
≤1920×1200_60Hz |
| HDMI Format（HDCP2.0） |
PC（VESA） |
≤3840×2160_60Hz |
| HDMI2.0（CEA-861） |
| SDI Format |
SMPTE259M-C
SMPTE 292M
SMPTE 274M/296M
SMPTE 424M/425M |
480i_60Hz
576i_50Hz
720p、1080i、1080p |
| Input connectors |
Video： BNC/ 75Ω
VGA：15pin D_Sub(Female)
DVI：24+1 DVI_DHDMI：HDMI ATYPE
SDI：BNC/ 75Ω |
| Output |
| Quantity /Type |
8×DVI |
| DVI Format |
1920×1080_60Hz |
| Output connectors |
DVI：24+1 DVI_D |
| Others |
| Control |
RS232/USB/LAN |
| Input voltage |
100-240VAC 50/60Hz |
| Overall power consumption |
≤70W |
| Environment temperature |
0-45℃ |
| Environment humidity |
15-85% |
| Product size |
483(L) x 338(W) x94(H)mm |
| Carton size |
540(L) x 400(W) x 180(H)mm |
| Net weight |
5.95Kg |
| Gross weight |
8.8Kg |
