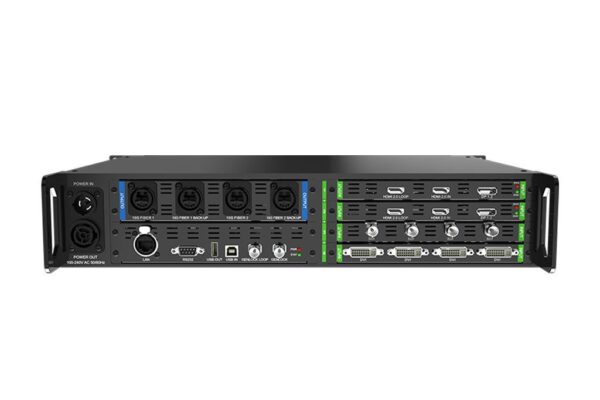

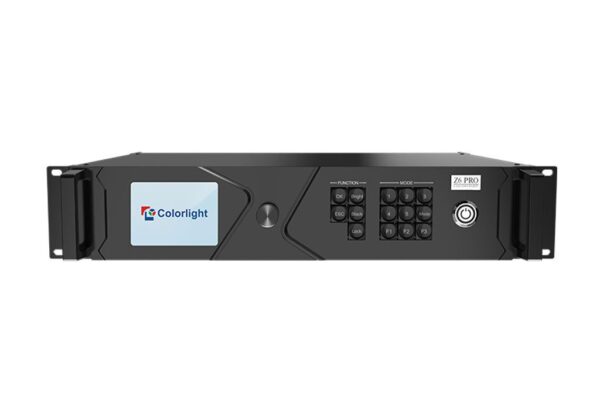

Z6 PRO Super Controller
Z6 PRO Super Controller is a professional LED display controller with splicing, sending and processing functions. Z6 PRO has 4K video source input capability, UHD and HDR image processing and transmission. Z6 PRO has four 10G fiber output ports，which can be applied to high-end rental display and high resolution LED displays.
·Supports 4 pcs 4K input board, up to 4096×2160@60Hz resolution per board；
·Supports 3 types of optional 4K input boards, including HDMI/DP, DVI×4, SDI×4;
·4 10G fiber output ports, loading capacity up to 8847360 pixels, maximum width/height: 8192 pixels;
·Low latency processing;
·Supports 16 PIP layers. The location and size can be adjusted freely;
·Supports video source switching, splicing, cropping and scaling;
·Supports HDR;
·Supports 3D video and display;
·Improved gray-scale at low brightness;
·Hue, saturation, contrast adjustment;
·Supports USB, LAN and RS232 control；
·Supports Art-net control.

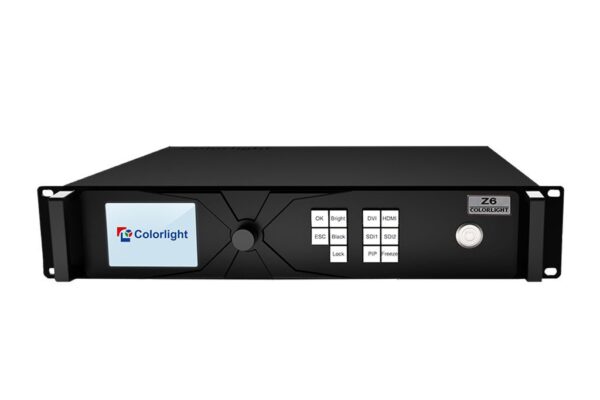

Z6 Super Controller
Z6 Super Controller is a professional LED display controller. As video splicer, processor and sender in one combined, Z6 has 4K video input capability, UHD and HDR images processing and transmission. Z6 can be applied to high-end rental display and high resolution LED display perfectly.
·Video input ports including SDI×2, HDMI2.0×1, DVI×4;
·Support input resolution up to 3840×2160@60Hz;
·Loading capacity: 8.3 million pixels, Maximum Width/Height: 8192 pixels;;
·The input images can be spliced and zoomed according to the screen resolution;
·Support PIP function, the location and size can be adjusted freely;
·Support splicing and cascading among several controllers with synchronization strictly;
·Support 3D display;
·Support brightness and chromaticity adjustment, color gamut transformation;
·Support improved gray-scale at low brightness;
·Support HDCP2.2；
·Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.

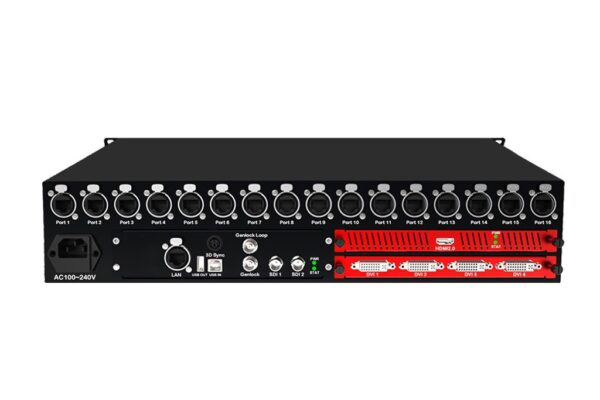

| Input Index | |
|---|---|
| SDI | 2 3G-SDI inputs |
| HDMI | HDMI2.0 input |
| DVI | 4 DVI inputs |
| Output Interface | |
|---|---|
| Gigabit Ethernet | 16 Neutrik Gigabit Ethernet outputs |
| Controlling Interface | |
|---|---|
| 100M Ethernet | 100M-Ethernet Control port (communication with PC, or access network), and can be used as Artnet control port |
| USB_OUT | USB output, cascading with next controller |
| USB_IN | USB input, which connect with PC to configure parameters |
| GENLOCK | Genlock signal input ensures synchronism of display image |
| GENLOCK_LOOP | Genlock synchronous signal loop output |
| 3D sync | Connect to 3D emitter （Optional） |
| Input Index | ||||
|---|---|---|---|---|
| Port | Number | Resolution Specification | Remarks | |
| SDI | 2 | 1080P | ||
| HDMI | 1 | EIA/CEA-861 Standard, in accordance with HDMI-2.0 standard, support HDCP2.2 | 3840×2160@60hz | 8bit supports RGB444，YCbCr444， YCbCr422，YCbCr420
10bit supports YCbCr422，YCbCr420 |
| 1920×1080@60hz | 8/10bit supports RGB444，YCbCr444， YCbCr422，YCbCr420 | |||
| DVI | 4 | VESA Standard, support HDCP | 1920×1080@60hz | 8/10/12bit supports RGB444，YCbCr444，YCbCr422， YCbCr420 |
| Output Index | |
|---|---|
| Color Depth | Resolution Specification |
| 8bit | 3840×2160@60hz |
| 10bit | 2880×2160@60hz |
| Specification of complete machine | |
|---|---|
| Size | 2U standard box |
| Input Voltage | AC 100~240V |
| Rated Power Consumption | 80W |
| Working temperature | -25~80℃ |
| Weight | 9kg |

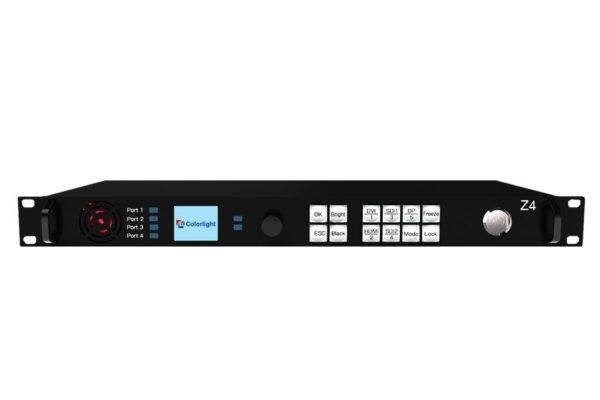

Z4 Super Controller
Z4 is a professional LED display controller. As video splicer, processor and sender in one combined, Z4 has high capability of video signal reception, processing and transmission. It achieves excellent high-definition images and flexible image control function. Z4 can be applied to popular rental display and common fixed display perfectly.
·Video input ports including 1*HDMI(with loop), 1*DVI(with loop), 2*SDI, 1*DP;
·Input resolution up to 1920*1200@60Hz;
·The input images can be scaled according to the screen resolution;
·Support PIP function, the location and size can be adjusted freely;
·Support 12bit HD video source;
·Loading capacity: 2.3 million pixels; Maximum Width: 4096 pixels, Maximum Height: 4096 pixels;
·Support splicing and cascading among several controllers with synchronization strictly;
·Support brightness and chromaticity adjustment, color gamut transformation;
·Support zero latency of sending;
·Support improved gray-scale at low brightness;
·Support HDCP1.4;
·Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.

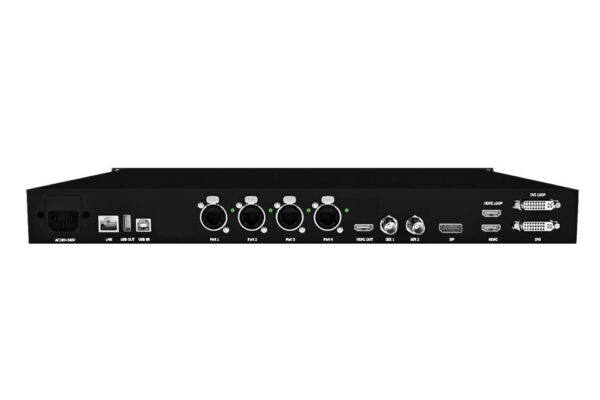

| Input Index | |
|---|---|
| HDMI | HDMI1.4 input with loop |
| DVI | DVI input with loop |
| SDI | 2*3G-SDI inputs |
| DP | DP input |
| Output Interface | |
|---|---|
| Gigabit Ethernet | 4 Neutrik Gigabit Ethernet outputs |
| HDMI | HDMI monitoring output |
| Controlling Interface | |
|---|---|
| 100M Ethernet | Network Control (communication with PC, or access network) |
| USB_OUT | USB output, cascading with next controller |
| USB_IN | USB input, connection with PC to configure parameters |
| Specification of complete machine | |
|---|---|
| Size | 1U standard box |
| Input Voltage | AC 100~240V |
| Rated Power | 20 W |
| Working temperature | -25~80℃ |
| Weight | 2KG |
